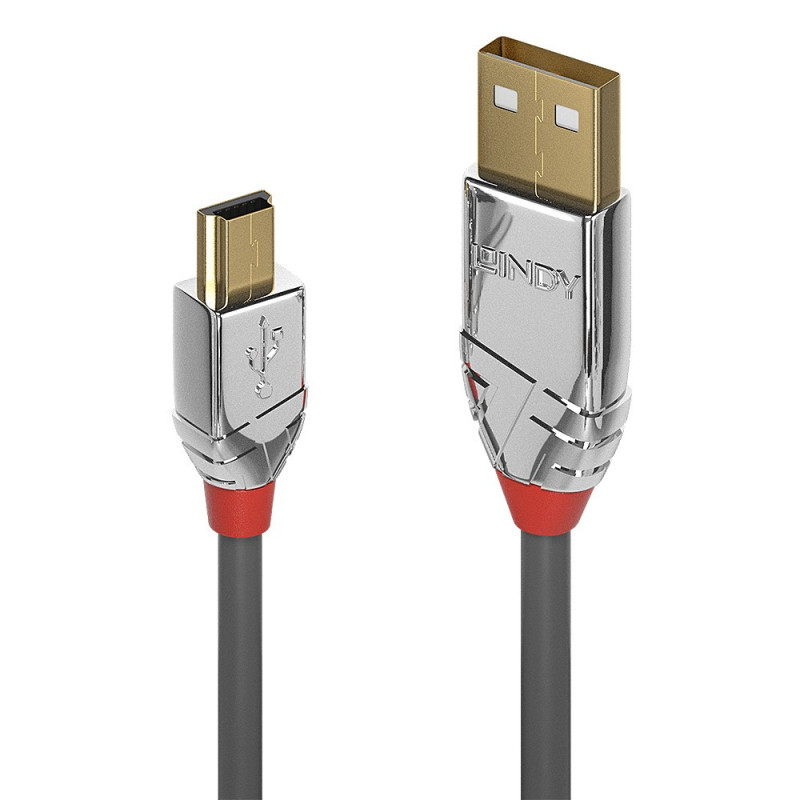

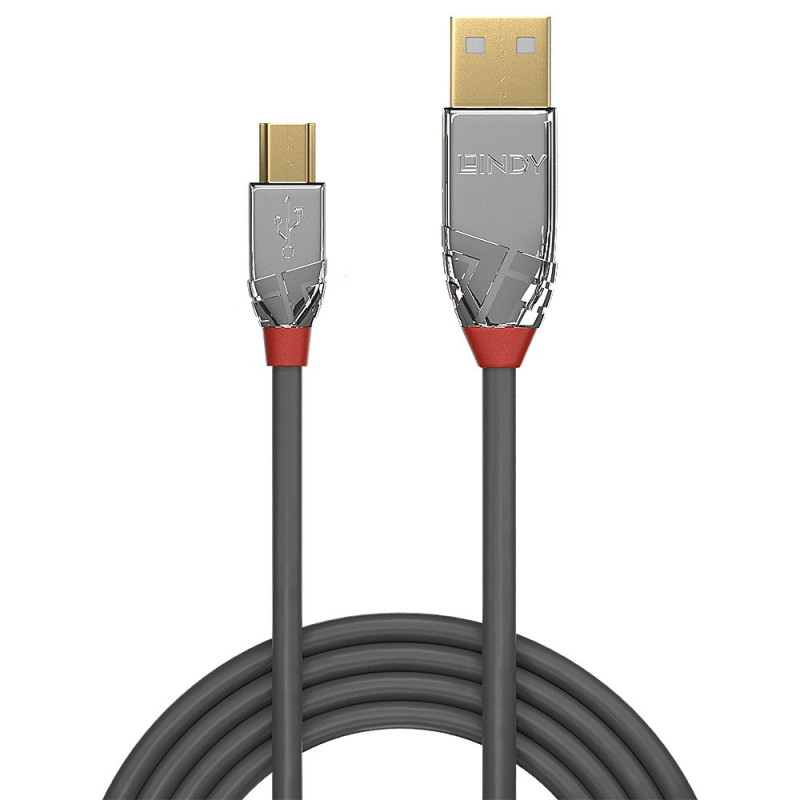

5 meter long USB 2.0 Type A to Mini-B cable with 480 Mbps bandwidth. It features gold-plated connectors and a PVC jacket with a diameter of 4.0 mm.
5 meter long USB 2.0 Type A to Mini-B cable with 480 Mbps bandwidth. It features gold-plated connectors and a PVC jacket with a diameter of 4.0 mm.


5 meter long USB 2.0 Type A to Mini-B cable with 480 Mbps bandwidth. It features gold-plated connectors and a PVC jacket with a diameter of 4.0 mm.
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
5 m USB 2.0 Type A to Mini-B cable with 480Mbps bandwidth. Features gold-plated connectors and a PVC jacket with a diameter of 4.0 mm.
Features | |
|---|---|
| Product type | USB cable |
| Product name | 5m USB 2.0 Type A to Mini-B Cable, Cromo Line USB Type A Male to Mini-B Male |
Specifications | |
| Connector A | USB 2.0 Type A Male |
| Connector B | USB 2.0 Type Mini-B Male |
| Housing material | Chrome plated, ABS |
| Coating of joints | Gold 1µm |
| Pin construction | Brass |
| Pin coating | Gold 3µm |
| Dimensions (A) | 15.5x35x7.8mm (0.61x1.38x0.31in) |
| Dimensions (Mini-B) | 10x24x7.5mm (0.39x0.95x0.30in) |
| Cable length | 5m (16.40 feet) |
| Shell material | PVC |
| Cable material | Copper plated |
| Wire thickness (power) | 24AWG |
| Wire thickness (data) | 28AWG |
| Armor | Copper mesh 70% |
| Supported bandwidth | 480Mbps |
| Nominal attenuation | 0.5-400MHz < 5.8dB |
| Minimum bending radius | 55mm (2.2in) |
| Operating temperature | -20°C - 80°C (-4°F - 176°F) |
| Safety temperature | -25°C - 85°C (-13°F - 185°F) |
Safety warning | |
| Use this product only for its intended purpose. | |
| Height | 259 mm |
| Length | 236 mm |
| Weight | 280 g |
| Width | 20 mm |
