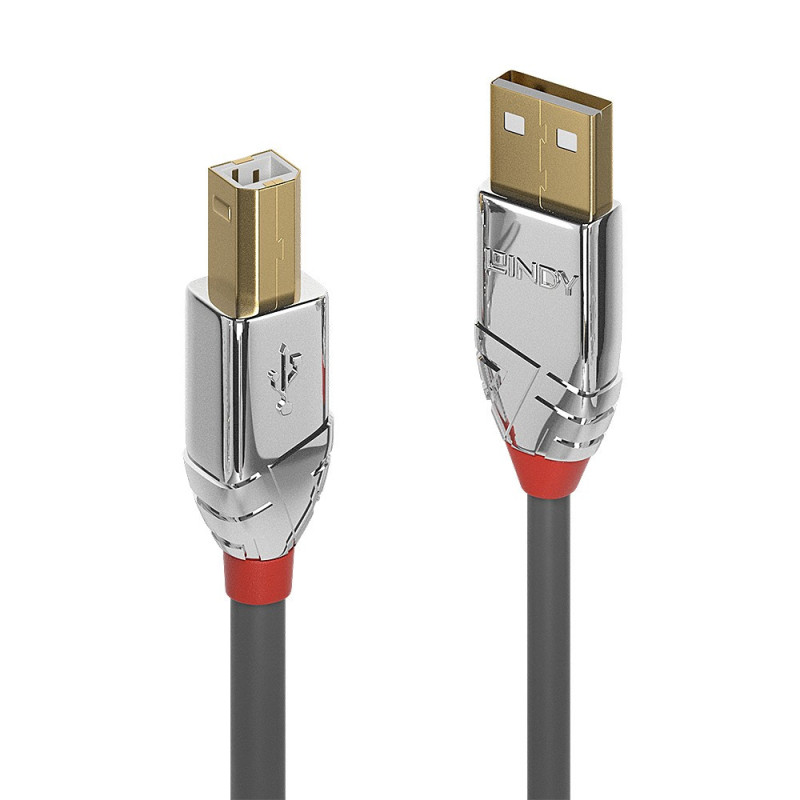

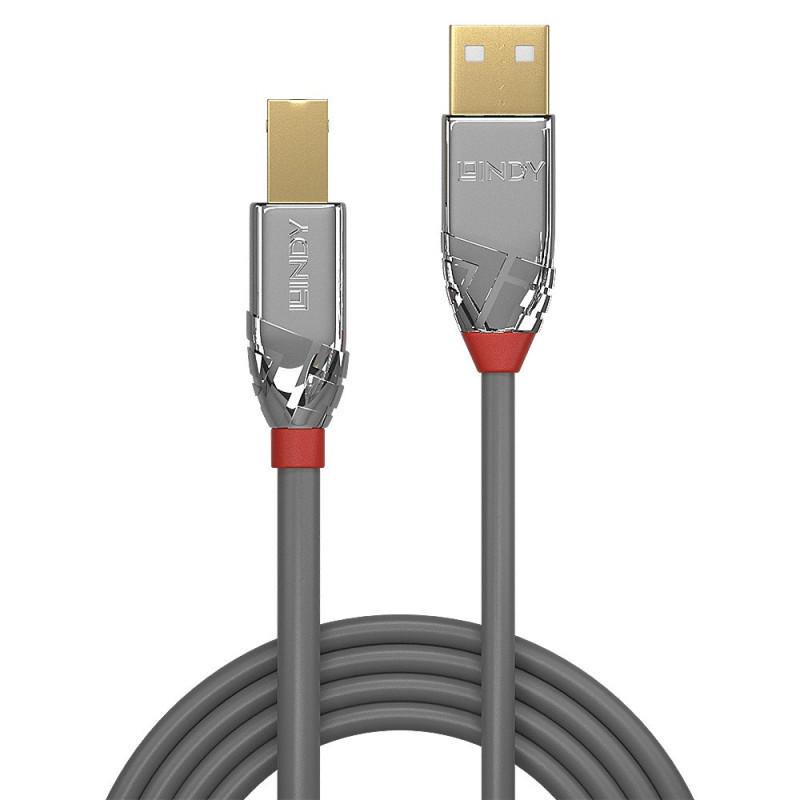

The 2-meter USB 2.0 Type A to B cable features gold-plated connectors and a PVC jacket. It supports 480 Mbps bandwidth and operates in a temperature range of -20°C to 80°C.
The 2-meter USB 2.0 Type A to B cable features gold-plated connectors and a PVC jacket. It supports 480 Mbps bandwidth and operates in a temperature range of -20°C to 80°C.
Guarantee
24 month
Delivery from Lithuania in
2 - 3
business days
The 2-meter USB 2.0 Type A to B cable features gold-plated connectors and a PVC jacket. It supports 480Mbps bandwidth and operates in a temperature range of -20°C to 80°C.
Features | |
|---|---|
| Product type | USB cable |
| Model | 2m USB 2.0 Type A to B cable |
Specifications | |
| Connector A | USB 2.0 Type A Male |
| Connector B | USB 2.0 Type B Male |
| Shell material | Chrome plated, ABS |
| Connector coating | Gold 1µm |
| Pin construction | Brass |
| Pin coating | Gold 3µm |
| Dimensions (A) | 16x35x8.3mm (0.63x1.38x0.34in) |
| Dimensions (B) | 11.8x35x10.2mm (0.47x1.38x0.40in) |
Cable construction | |
| Length | 2m (6.56 feet) |
| Standard | USB 2.0 |
| Color | Gray |
| Shell diameter | 4.6mm (0.18in) |
| Shell material | PVC |
| Cable material | Copper plated |
| Wire thickness (power) | 24AWG |
| Wire thickness (data) | 28AWG |
| Armor | Copper plated, 70% |
Technical data | |
| Supported bandwidth | 480Mbps |
| Nominal attenuation | 0.5-400MHz < 5.8dB |
| Minimum bending radius | 55mm (2.2in) |
| Operating temperature | -20°C to 80°C (-4°F to 176°F) |
| Storage temperature | -25°C to 85°C (-13°F to 185°F) |
