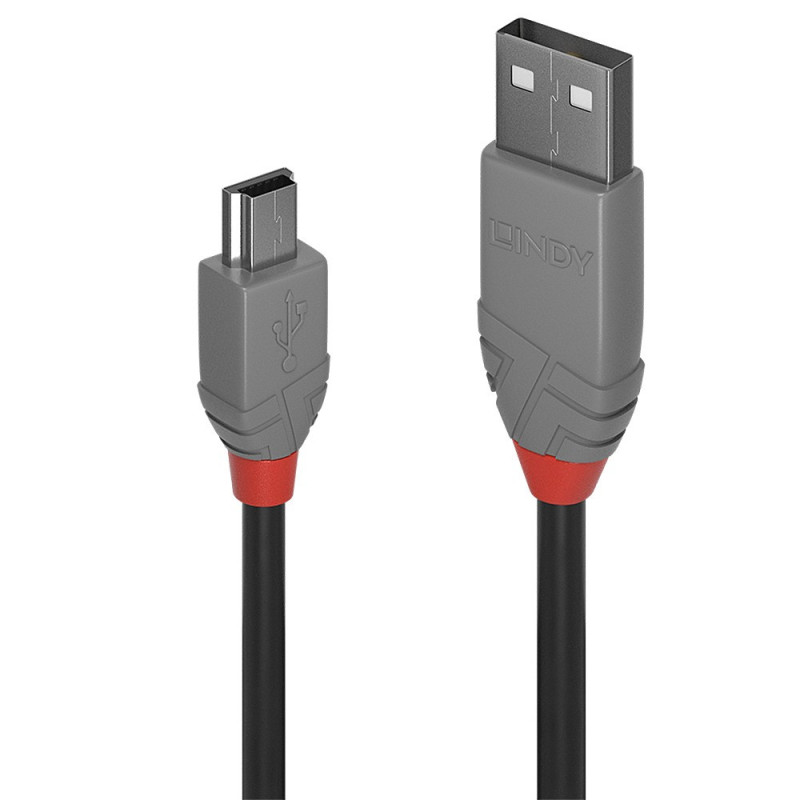

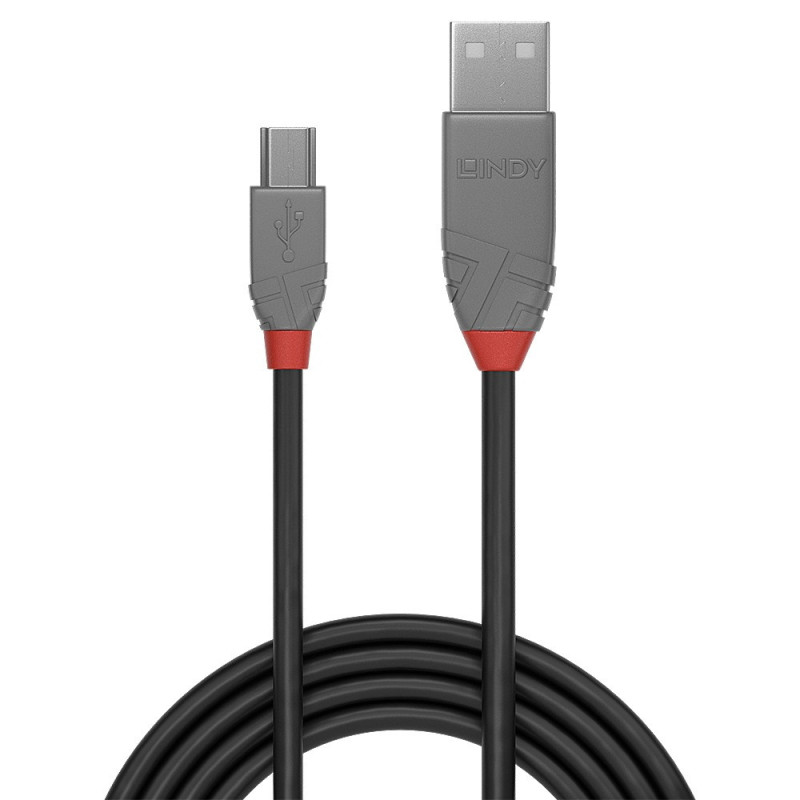

0.5m USB 2.0 Type A to Mini-B cable with nickel-plated connectors and PVC housing. It supports 480 Mbps bandwidth and operates in a temperature range of 0°C to 40°C.
0.5m USB 2.0 Type A to Mini-B cable with nickel-plated connectors and PVC housing. It supports 480 Mbps bandwidth and operates in a temperature range of 0°C to 40°C.


0.5m USB 2.0 Type A to Mini-B cable with nickel-plated connectors and PVC housing. It supports 480 Mbps bandwidth and operates in a temperature range of 0°C to 40°C.
Guarantee
24 month
Delivery from Lithuania in
2 - 3
business days
0.5 m USB 2.0 Type A to Mini-B cable with nickel-plated connectors and PVC housing. Supports 480Mbps bandwidth and operates in the temperature range from 0°C to 40°C.
Features | |
|---|---|
| Product type | USB cable |
| Model | 0.5m USB 2.0 Type A to Mini-B cable |
Specifications | |
| Connector A | USB 2.0 Type A Male |
| Connector B | USB 2.0 Type Mini-B Male |
| Housing material | PVC |
| Connector coating | Nickel |
| Pin construction | Brass |
| Pin coating | Gold |
| Dimensions (A) | 15.5 x 35 x 7.8 mm |
| Dimensions (Mini-B) | 10 x 24 x 7.6 mm |
| Cable length | 0.5m (1.64ft) |
| Standard | USB 2.0 |
| Color | Black |
| Shell diameter | 3.8 mm |
| Cable material | Tin copper |
| Wire thickness | 28AWG |
| Protection | Aluminum Magnesium Mesh 57% |
| Supported bandwidth | 480Mbps |
| Nominal attenuation | 0.5-400MHz < 5.8dB |
| Minimum bending radius | 16 mm |
| Operating temperature | 0°C - 40°C |
| Safety temperature | 0°C - 70°C |
Safety warning | |
| Use the product only for its intended purpose. | |
| Height | 144 mm |
| Length | 133 mm |
| Weight | 24 grams |
| Width | 10 mm |
