5m USB 2.0 Type A to Micro-B cable with nickel-plated connectors and copper wires. Supports 480 Mbps bandwidth and operates in a temperature range of 0°C to 40°C.
5m USB 2.0 Type A to Micro-B cable with nickel-plated connectors and copper wires. Supports 480 Mbps bandwidth and operates in a temperature range of 0°C to 40°C.
5m USB 2.0 Type A to Micro-B cable with nickel-plated connectors and copper wires. Supports 480 Mbps bandwidth and operates in a temperature range of 0°C to 40°C.
Guarantee
24 month
Delivery from Europe in
15 - 16
business days

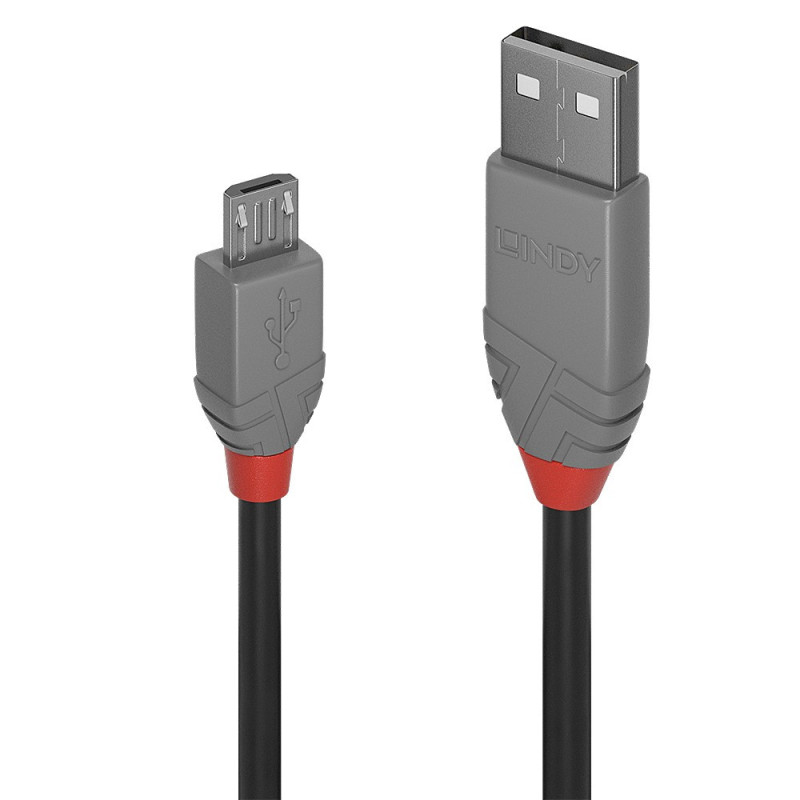

5m long USB 2.0 Type A to Micro-B cable with nickel-plated connectors and copper wires. Supports 480 Mbps bandwidth and operates in the temperature range from 0°C to 40°C.
Features | |
|---|---|
| Product type | USB Cable |
| Model | 5m USB 2.0 Type A to Micro-B Cable |
Specifications | |
| Connector A | USB 2.0 Type A Male |
| Connector B | USB 2.0 Type Micro-B Male |
| Shell | PVC |
| Connector coating | Nickel |
| Connection design | Brass |
| Connector coating | Gold |
| Dimensions (A) | 15.5 × 35 × 7.8 mm |
| Dimensions (Micro-B) | 10 × 24 × 7.6 mm |
| Cable length | 5m (16.40ft) |
| Standard | USB 2.0 |
| Shell diameter | 3.5mm |
| Cable material | Tinned copper |
| Wire thickness (power) | 28AWG |
| Wire thickness (data) | 28AWG |
| Protection | Aluminum Magnesium Mesh 57% |
| Supported bandwidth | 480Mbps |
| Nominal attenuation | 0.5-400MHz < 5.8dB |
| Minimum bending radius | 16 mm |
| Operating temperature | 0°C - 40°C |
| Safety temperature | 0°C - 70°C |
Safety warning | |
| Use the product only for its intended purpose to ensure safety and performance. | |
| Height | 194 mm |
| Length | 174 mm |
| Weight | 101 grams |
| Width | 20 mm |
