1m USB 2.0 Type A to Micro-B cable with nickel-plated connectors and copper wires. Supports 480 Mbps bandwidth and operates in a temperature range of 0°C to 40°C.
1m USB 2.0 Type A to Micro-B cable with nickel-plated connectors and copper wires. Supports 480 Mbps bandwidth and operates in a temperature range of 0°C to 40°C.
1m USB 2.0 Type A to Micro-B cable with nickel-plated connectors and copper wires. Supports 480 Mbps bandwidth and operates in a temperature range of 0°C to 40°C.
Guarantee
24 month
Delivery from Lithuania in
2 - 3
business days

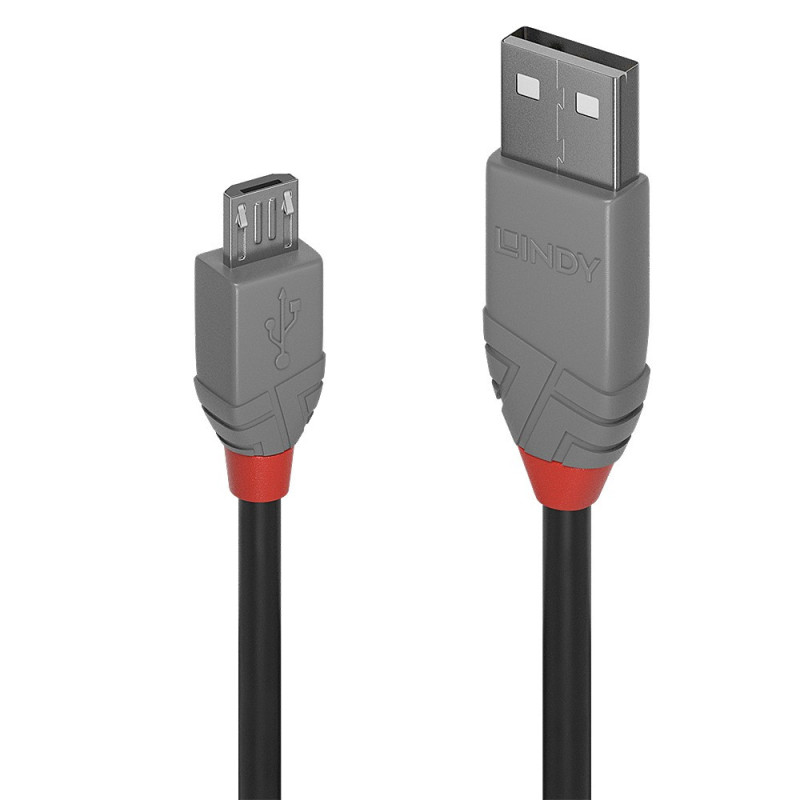

1m long USB 2.0 Type A to Micro-B cable with nickel-plated connectors and copper wires. Supports 480 Mbps bandwidth and operates in the temperature range from 0°C to 40°C.
Features | |
|---|---|
| Product type | USB cable |
| Model | 1 m USB 2.0 Type A to Micro-B cable |
Specifications | |
| Connectors | USB 2.0 Type A Male, USB 2.0 Type Micro-B Male |
| Housing material | PVC |
| Connector coating | Nickel |
| Pin construction | Brass |
| Pin coating | Gold |
| Dimensions (A) | 15.5 x 35 x 7.8 mm (0.61 x 1.38 x 0.31 in) |
| Dimensions (Micro-B) | 10 x 24 x 7.6 mm (0.29 x 0.95 x 0.30 in) |
| Cable length | 1 m (3.28 ft) |
| Standard | USB 2.0 |
| Color | Black |
| Shell diameter | 3.5 mm (0.14 inch) |
| Cable material | Tinned copper |
| Wire thickness (power) | 28AWG |
| Wire thickness (data) | 28AWG |
| Armor | Aluminum Magnesium Mesh 57% |
Technical data | |
| Supported bandwidth | 480Mbps |
| Nominal attenuation | 0.5-400MHz < 5.8dB |
| Minimum bending radius | 16 mm (0.63 inch) |
| Operating temperature | 0°C - 40°C (32°F - 104°F) |
| Storage temperature | 0°C - 70°C (32°F - 158°F) |
Additional information | |
| Packaging type | Polyethylene bag |
| Product compliance | RoHS, REACH, California Proposition 65 UL |
| Height | 194 mm |
| Length | 174 mm |
| Weight | 37 grams |
| Width | 10 mm |
