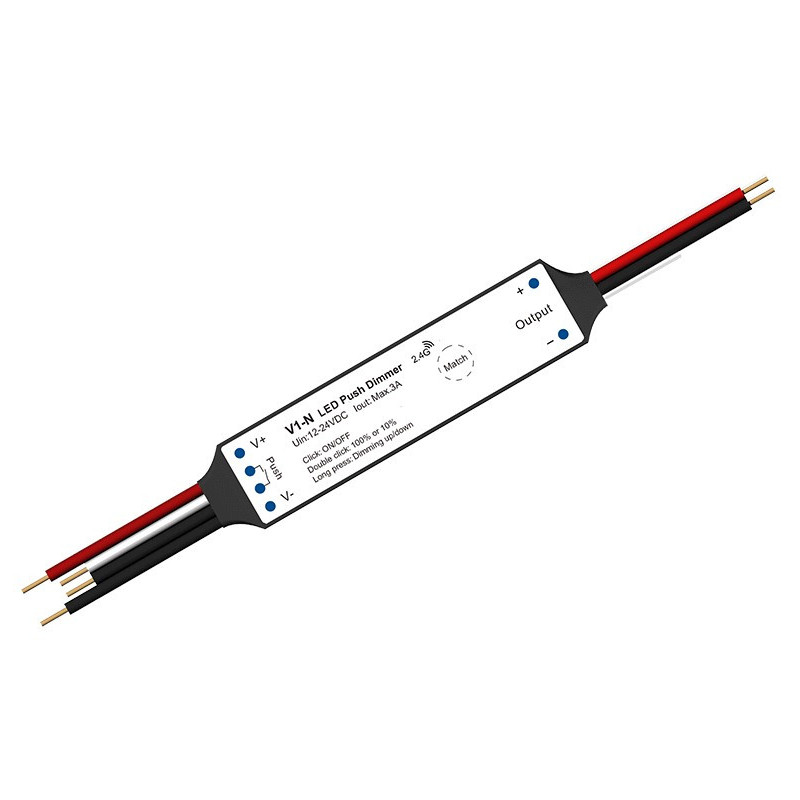

LED Controller - V1-N 12-24V 1x3A Push-Dimm 75W
Product reference: 14-9990001084400

Constant voltage controller for single-color LED strips, operating at 12-24V DC with a maximum power of 75W. It features a Push-Dimm function that allows for smooth adjustment of light intensity in 4096 levels, and is also compatible with RF 2.4 GHz remote controllers.

LED Controller - V1-N 12-24V 1x3A Push-Dimm 75W

LED Controller - V1-N 12-24V 1x3A Push-Dimm 75W

Product reference: 14-9990001084400

Constant voltage controller for single-color LED strips, operating at 12-24V DC with a maximum power of 75W. It features a Push-Dimm function that allows for smooth adjustment of light intensity in 4096 levels, and is also compatible with RF 2.4 GHz remote controllers.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
1783 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
4 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

V1-N Controller, 12-24V, 1x 3A, Push-Dimm


Constant voltage controller for single-color LED strips, operating at 12-24V DC with a maximum power of 75W. Features Push-Dimm function, smooth adjustment with 4096 levels and compatibility with RF 2.4 GHz remote controllers.


  • Facilitates smooth dimming with up to 4096 levels from 0 to 100% for single-color LED strips.
  • Compatible with RF 2.4 GHz remote controls, allowing connection of up to ten remote controls and synchronized operation.
  • The compact design fits into standard wall mounting boxes, making installation simple and space-saving.
  • Features a Push-Dimm function that allows convenient control using a standard momentary switch.

Features

Product model V1-N
Number of channels 1
Controlled lighting systems Single color

Specifications

Input voltage 12V-24V DC
Output voltage 12V-24V DC
Output current 3A per channel
Power Max 75W
PWM frequency 500Hz
Grayscale levels 4096 levels
Adjustment range 0-100%
Regulation curve Logarithmic
Operating distance Up to 30m (in open space)
Protection class IP20 (not waterproof)
Operating temperature -30°C to +55°C
Dimensions 14 x 60 x 4 mm
Color options White, Black
Weight 13g

Certificates

Certificates CE, EMC, RoHS
