LED Controller - V1-H 12-48V 8A Push-Dimm
Product reference:
14-9990001084554
The V1-H controller operates at 12-48V DC with a maximum output of 8A and supports smooth dimming with 4096 levels. It features a Push-Dimm function, compatibility with RF remote controls, and built-in protection against reverse polarity and short circuit.
LED Controller - V1-H 12-48V 8A Push-Dimm
Product reference:
14-9990001084554
The V1-H controller operates at 12-48V DC with a maximum output of 8A and supports smooth dimming with 4096 levels. It features a Push-Dimm function, compatibility with RF remote controls, and built-in protection against reverse polarity and short circuit.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Not available

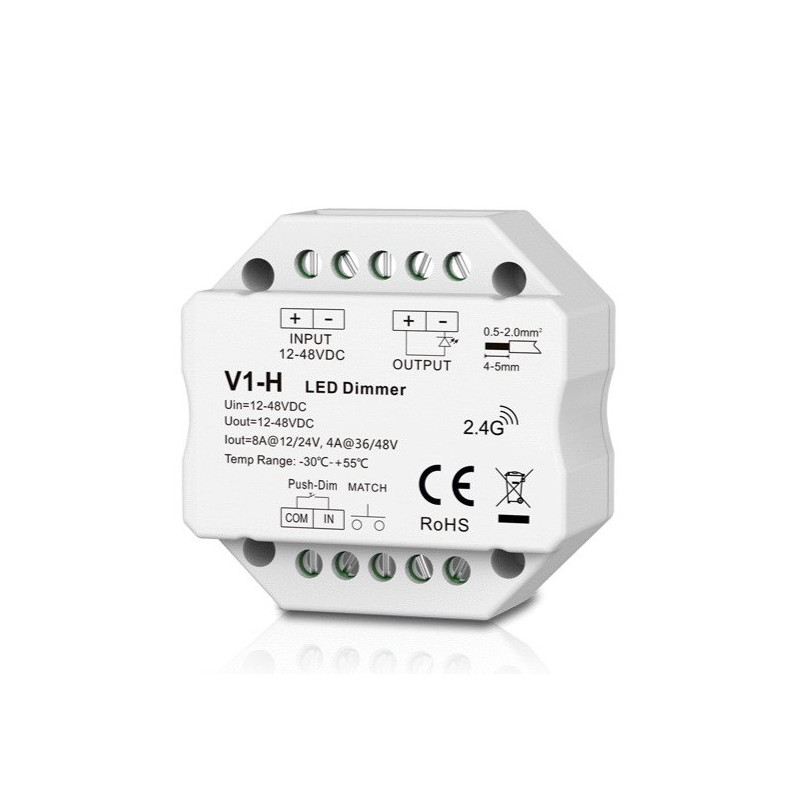

V1-H Controller, 12-48V, 1x 8A, Push-Dimm
V1-H The controller operates at 12-48V DC voltage with a maximum 8A output and supports smooth dimming with 4096 levels. It features a Push-Dimm function, compatibility with RF remote controls, and built-in protection against reverse polarity and short circuit.
- Compatible with single-color LED strips and panels, offering smooth adjustment with 4096 levels from 0 to 100%.
- The Push-Dimm function allows for easy control using a standard momentary switch.
- Supports RF 2.4 GHz remote controls, allowing up to ten remote controls to be connected and synchronized operation.
- The compact design fits into standard wall mounting boxes, with integrated protection against reverse polarity and short circuit.
Features | |
|---|---|
| Product Type | LED Controller |
| Model | V1-H |
Specifications | |
| Voltage | 12V - 48V DC |
| Output Voltage | 12V - 48V DC |
| Output Current | 8A @ 12/24V; 4A @ 36/48V |
| Power | 96W @ 12V; 192W @ 24V; 144W @ 36V; 192W @ 48V |
| PWM Frequency | 500Hz |
| Grayscale | 4096 levels |
| Adjustment Range | 0-100% |
| Regulation Curve | Logarithmic |
| Operating Distance | Until 30m (in open space) |
| Protection Class | IP20 (not waterproof) |
| Suitable Wire Cross-Section | 0.5-2 mm² |
| Operating Temperature | -30°C to +55°C |
| Dimensions | 52 x 52 x 26 mm |
| Color | White |
| Weight | 49g |
Certificates | |
| Certificates | CE, EMC, RoHS |
| Height | 60mm |
| Length | 100mm |
| Weight | 75 g |
| Width | 100mm |
