I / O CARD PCIE USB 5GBPS 4PORT / SP&LP PCEU-232RS AXAGON
Product reference: 2-8595247908599

I / O CARD PCIE USB 5GBPS 4PORT / SP&LP PCEU-232RS AXAGON

Product reference: 2-8595247908599
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
15,65 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

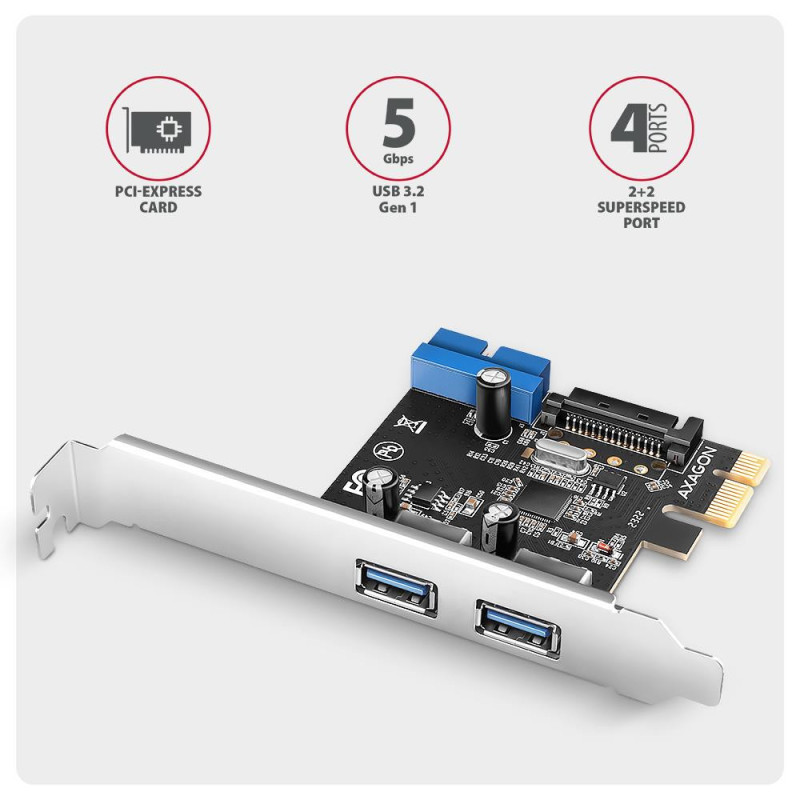

The AXAGON PCEU-232RS PCI-Express card adds four USB 5Gbps ports to your desktop computer. The card is designed for fast data transfers at speed up to 5 Gb/s.



Two USB-A ports are taken out to the bracket. You can connect two different USB devices such as printers, keyboards, card readers, flash drives, external HDDs, etc. Another two ports (in the form of an internal USB 5Gbps 19pin connector) are integrated on the card board. This allows connection of an internal USB reader or connection of the front USB ports of a PC case.

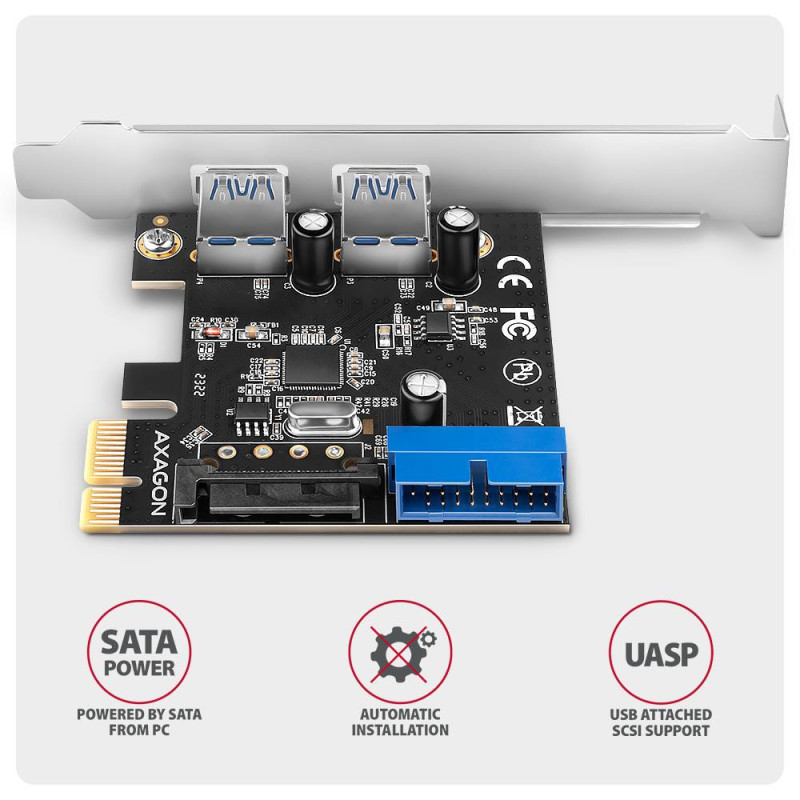

Reliable power supply of the card is provided from the computer power supply via the SATA power connector. The USB controller is equipped with a renowned Renesas company chipset with proven seamless compatibility and UASP support.

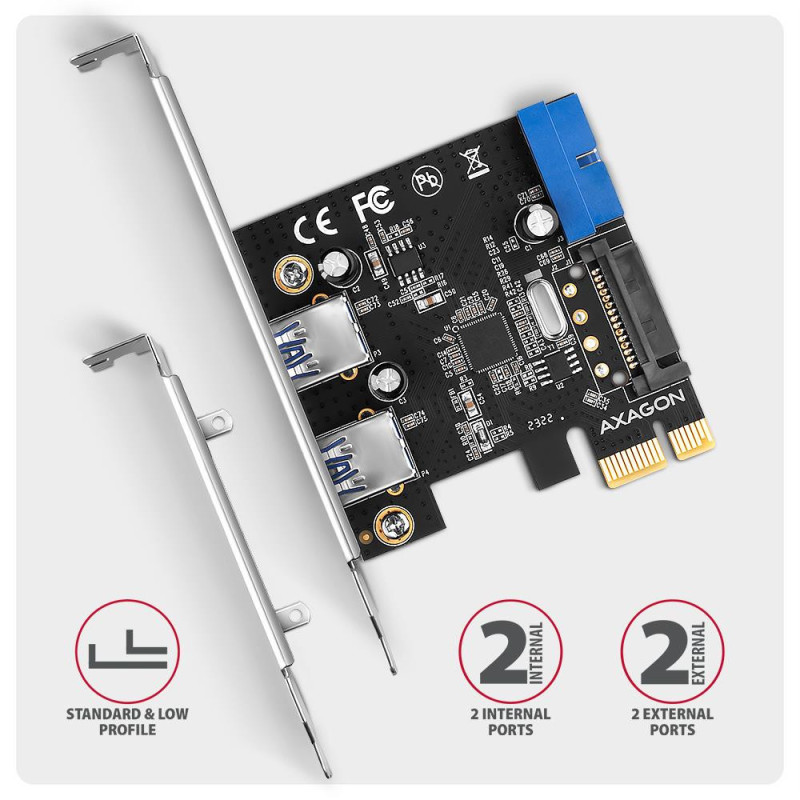

The package contains a low-profile bracket for mounting the adapter into low profile cases.



Input:

• PCI-Express 2.0 interface, compatible with PCI-Express 1.0a / 1.1 / 2.1. / 3.0 / 4.0.

• Number of 1-Lane lines (x1), compatible with x1 / x4 / x8 / x16 PCIe slots.

• A bandwidth of 1-Lane PCI-Express 2.0 bus up to 5 Gb/s.



Input (power supply):

• SATA 15-pin male power connector.



Output:

• 2x external USB 5Gbps port with USB A-F connectors.

• 19-pin internal USB 5Gbps connector with two ports used for example to connect an internal USB reader or the front USB ports of a PC case.

• USB - USB 5Gbps interface - before USB 3.2 Gen 1 / USB 3.0.

• Compatible with USB 3.2 Gen 2, backward compatible with USB 2.0 and USB 1.1.

• Supports transmission rates 5000 / 480 / 12 / 1.5 Mb/s.

• When connected to a PCI-Express bus version 1.0, theor. transmission rate max. 2500 Mb/s.



Other features:

• Full Plug and Play support.

• Supports concurrent activity of SuperSpeed USB, USB 2.0 and USB 1.1 devices.

• Compliant with the final official xHCI specification revision 1.0 by USB-IF.

• Supports UASP (USB Attached SCSI) for faster data transmission in Windows 8 and later.

• Fully supports Hot Plug connecting and disconnecting of USB devices while running.

• Internal SATA power connector for powering the controller from the PC power supply.

• Renesas PD720201 chipset is used.



Supported operating systems:

• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (supported are all 32- and 64-bit Windows OS versions), Linux with kernel 2.6.31 and above.

• Note: Drivers are only installed for Windows XP / Vista / 7. For Linux, Windows 8 / 8.1 / 10 / 11, Server 2012 / 2016 / 2019 / 2022 and later versions, no external drivers are required, they are already part of the operating system.

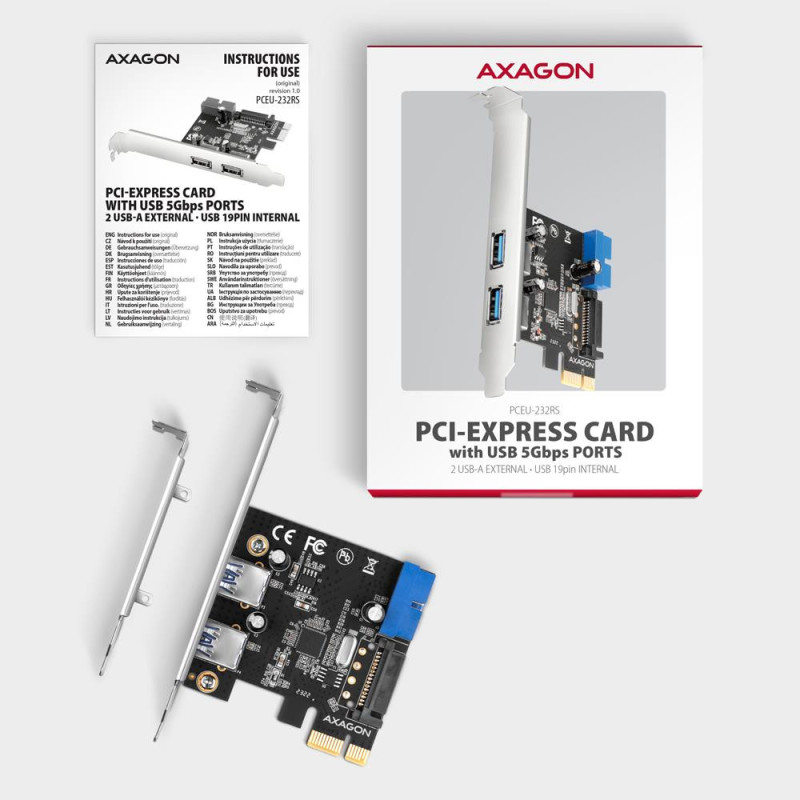

Package contains:

• PCI-Express card with a standard bracket,

• low profile bracket,

• multilingual manual CZ / DE / DK / ENG / ESP / EST / FIN / FR / GR / HR / HU / IT / LT / LV / NL / NOR / PL / PT / RO / SK / SLO / SRB / SWE / TR / UA / ALB / BG / BOS / CN / ARA,

• packed in a cardboard box.


Atitikties sertifikatai CE/RoHS
Bruto svoris 0.08 kg
Duomenų perdavimo sparta (maks.) 5 Gbit/s
Garantinis laikotarpis 3 metai
Hot-Plug palaikymas Taip
Instrukcija Taip
Išplėtimo kortelės formos faktorius Viso aukščio / žemo profilio
Išplėtimo kortelės standartas PCIe 2.0
Išvesties sąsaja USB 3.2 Gen 1 (3.1 Gen 1)
Kiekis pakuotėje 1 vnt
Kilmės šalis Kinija
Lengvas instaliavimas Taip
Model PCEU-232RS
Neto svoris 0.07 kg
Paketo svoris 77 g
Pakuotės aukštis 25 mm
Pakuotės gylis 145 mm
Pakuotės plotis 110 mm
Pakuotės tipas "Box"
Palaikoma operacinė sistema "Linux" Taip
Palaikomos serverio valdymo sistemos Taip
Palaikomos "Windows" operacinės sistemos Taip
Priimančioji sąsaja PCIe
Sertifikavimas CE, RoHS
Shipping Box Depth 2.5 cm
Shipping Box Height 14.5 cm
Shipping Box Weight 0.08 kg
Shipping Box Width 11 cm
Summary Axagon PCEU-232RS PCIe controller 2x ext. + 2x int. USB 5Gbps. Host interface: PCIe, Output interface: USB 3.2 Gen 1 (3.1 Gen 1), Expansion card form factor: Full-height / Low-profile. Country of origin: China, Certification: CE, RoHS. Data transfer rate (max): 5 Gbit/s. Quantity per pack: 1 pc(s), Package width: 110 mm, Package depth: 145 mm
Unit Box Height 0.145
Unit Box Length 0.025
Unit Box Width 0.11
Unit Brutto Volume 0.0003988 cubm
USB 3.2 (3.1 1 kart.) A tipo prievadų skaičius 2
Vendor Homepage https://www.axagon.eu/en/produkty/pceu-232rs
Vidinis Taip
Vidinių USB 3.2 Gen 1 (3.1 Gen 1) prievadų skaičius 2
Vieneto aukštis 14.5 cm
Vieneto gylis 2.5 cm
Vieneto plotis 11 cm
Vienetų skaičius vienoje siuntimo dėžėje 1
"Plug and Play" funkcija Taip
"SATA" energijos jungiklio tipas SATA 15-pin
