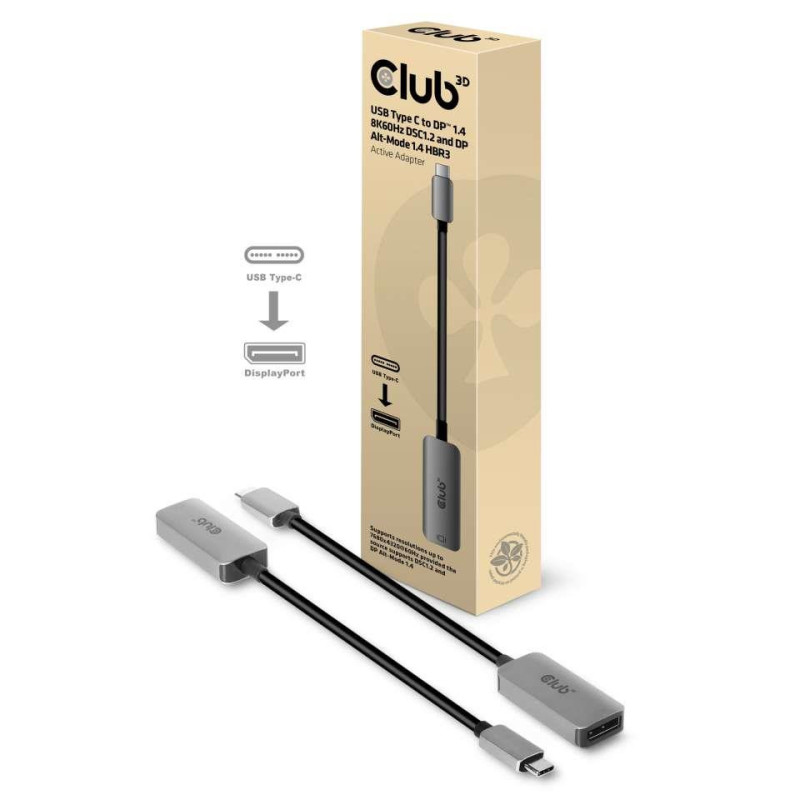

I / O ADAPTER USB-C TO DP / M / F CAC-1567 CLUB3D

USB Type C to DisplayPort 1.4 8K60Hz HBR3 Active Adapter.

The CAC-1567 Club 3D USB Type C to DisplayPort™ 1.4 Adapter 8K60Hz provided the source supports DSC1.2 HBR3 allows you to connect any USB Type C source to DisplayPort™ display at max 8K60Hz resolution and HDR support.



It works on any USB Type C host that supports DP 1.4/DP 1.2 Alt mode, resolutions are limited to the source device. When working on Thunderbolt™ 3 host, this product transmits DP signal.

The soft UltraFlex jacket protects the cable from bends and deformation damage. The Cable is 34AWG and Uni-Directional.

• Supports USB Type C input and DisplayPort™ output

• Supports DisplayPort™ resolutions up to 7680x4320@60Hz HDR, provided the source supports DSC1.2 and DP Alt-Mode 1.4

• Supports DisplayPort™ 1.4/1.2 Alt mode

• Compliant to Thunderbolt 3 specifications

• Supports per lane data rates of 8.1Gbps(HBR3), 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR)

• Support up to 48 bit (16bit per channel) deep color

• Supports content protection of HDCP1.4 & HDCP 2.2

• USB bus power (no external power supply)
