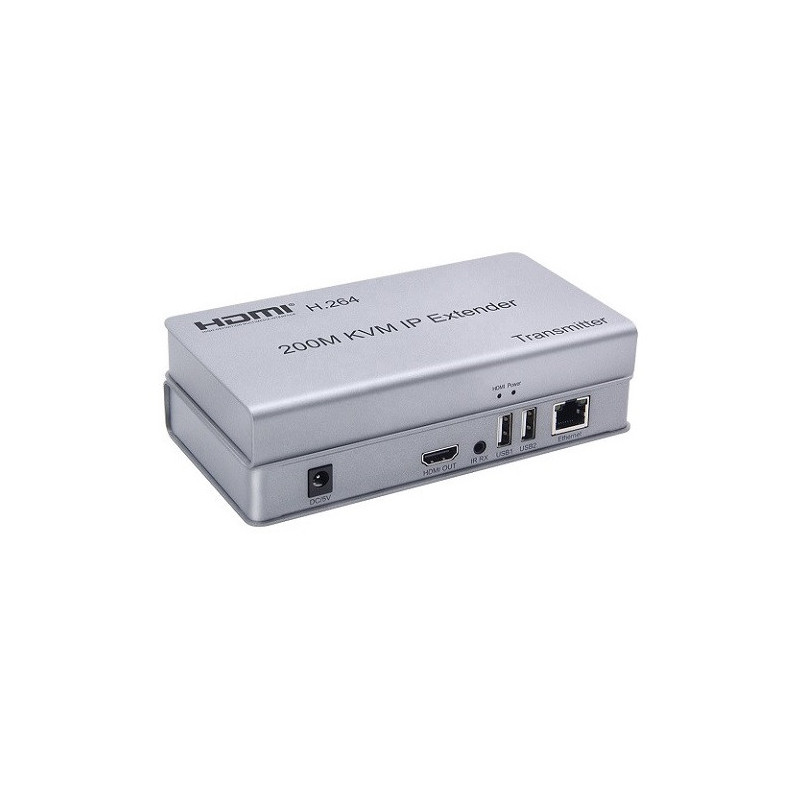

HDMI extender up to 200m, 1080P, with KVM, IR.
The HDMI extender uses a single Ethernet (Cat5e or Cat6) cable instead of an HDMI cable to transmit high-definition video and audio signals up to 200 meters.
Using a network hub, this device can distribute the signal to individual receivers (point-to-multipoint function).
Features:
Supports HDMI signal transmission up to 200m away.
802.3 Ethernet standard.
Simple connection (plug and play), no additional software required.
Low power consumption (max. 2/2.5W).
Direct connection (point-to-point), signal distribution (point-to-multipoint), cascade connection functions.
IR control, USB mouse and keyboard port (KVM control function) are supported.
Can be applied to TV, PC, projectors, video cameras.
Technical data:
Max. (CAT5e/CAT6 cable) length between transmitter and receiver: 200m.
HDMI resolution: 480p,720p,1080p.
Power adapter: AC (50Hz, 60Hz) 100V-240V; DC 5V /1A.
Max. power consumption: transmitter (TX) 2.5W; receiver (RX) 2W.
Operating temperature: -0°C ~ +45°C.
Operating humidity: 10-80%RH.
Size: 163x87x24 mm.
Weight: TX 474g; RX 474g.
Transmitter sockets:
DC/5V - power socket.
HDMI-IN - HDMI input.
HDMI-OUT - HDMI output.
IR-TX - IR transmitter socket.
USB - USB socket for connecting to a PC.
ETHERNET - CAT5e/CAT6 cable socket.
HDMI - signal indicator light.
POWER - power indicator light.
Receiver sockets:
DC/5V - power socket.
HDMI-OUT - HDMI output.
IR-TX - IR receiver socket.
USB-1-2 - USB socket for connecting a mouse/keyboard.
ETHERNET - CAT5e/CAT6 cable socket.
POWER - power indicator light.
Package:
Transmitter (TX).
Receiver (RX).
Power adapter x2 (5V/1A DC).
IR controller x2.
Instructions for use.
Warranty: 24 months
