HDBaseT Extender - LINDY Cat.6A 2 Host USB 3.2 Gen 1 HDBaseT Extender 100 m, Black
Product reference:
14-4002888434218
Supports USB 3.2 Gen 1 with 5 Gbps bandwidth up to 100m using Cat.6A or higher cables. Offers multiple output options, including Power over Cable, RS232, and various data transfer modes.
HDBaseT Extender - LINDY Cat.6A 2 Host USB 3.2 Gen 1 HDBaseT Extender 100 m, Black
Product reference:
14-4002888434218
Supports USB 3.2 Gen 1 with 5 Gbps bandwidth up to 100m using Cat.6A or higher cables. Offers multiple output options, including Power over Cable, RS232, and various data transfer modes.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

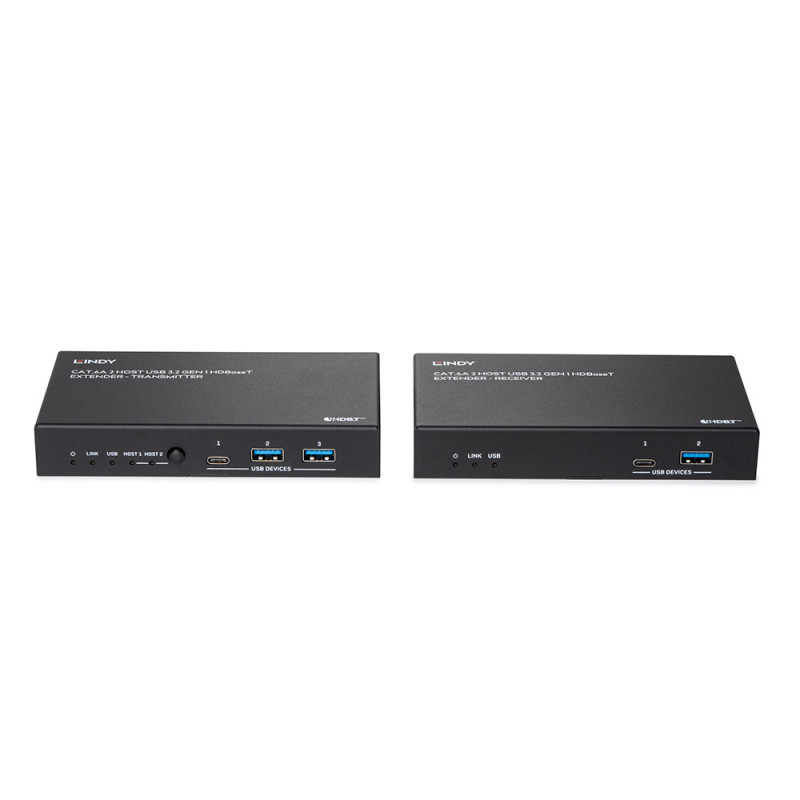

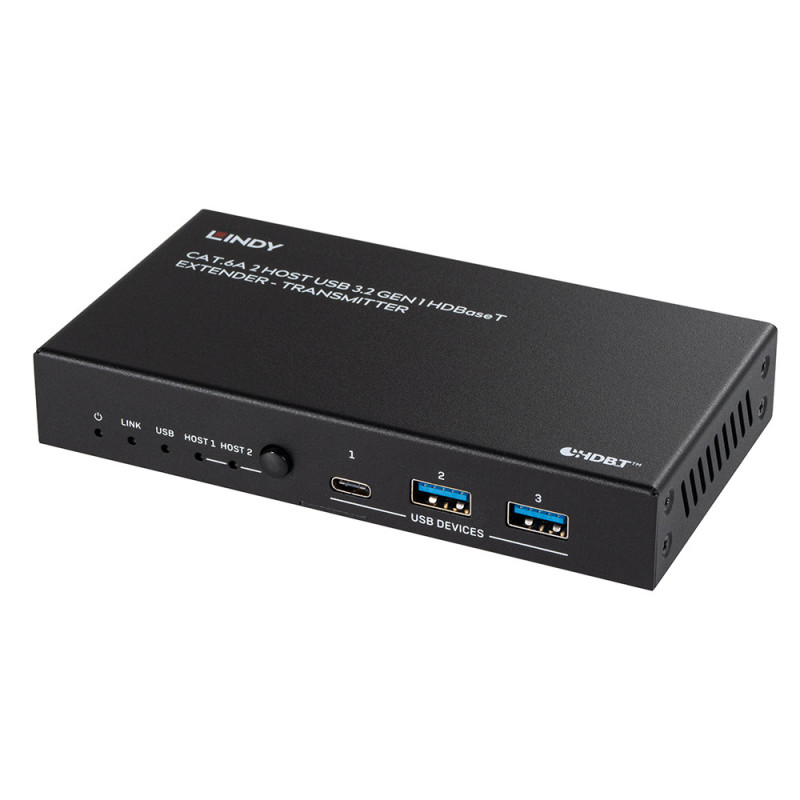

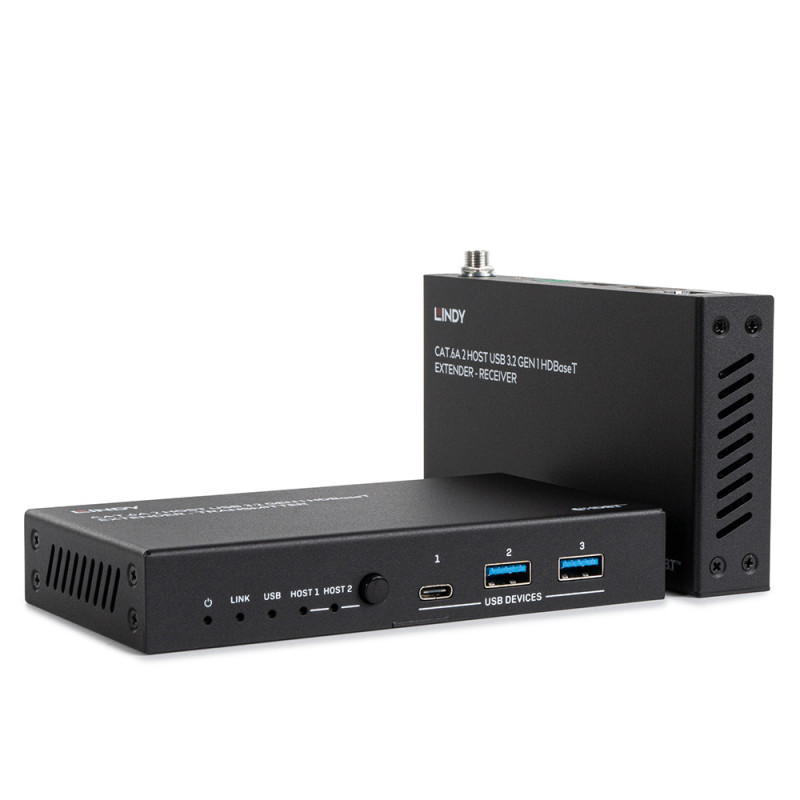

LINDY Cat.6A 2 Host USB 3.2 Gen 1 HDBaseT Extender 100 m, Black
Supports USB 3.2 Gen 1 with 5Gbps bandwidth over a maximum distance of 100m using Cat.6A or higher grade cables. Includes multiple output options and has Power over Cable, RS232 and various data transfer modes.
- Extends USB 3.2 Gen 1 signals up to 100 m (328.08 ft) using Cat.6A or higher class network cable.
- Supports high-speed data transfer with 5Gbps bandwidth and multiple data transfer modes.
- Includes a variety of connectors for universal compatibility, including USB Type C and RJ45.
- Has Power over Cable for easy installation and reduced clutter.
Features | |
|---|---|
| Product type | USB extension cord |
| Model | 100m Cat.6A 2 Host USB 3.2 Gen 1 HDBaseT extender |
Specifications | |
| USB standard | USB 3.2 Gen 1 |
| Supported bandwidth | 5Gbps |
| Maximum distance | 100 m (328.08 ft) |
| Transmission medium | Cat.6A or higher class network cable |
| Chipset | VS6320 |
| Power requirements | 24VDC 3.75A |

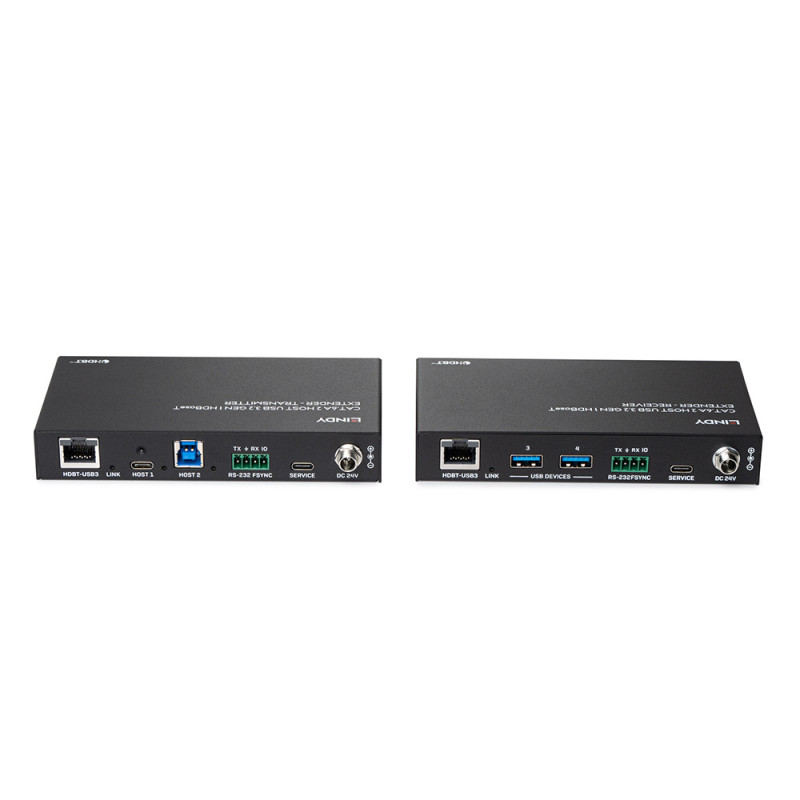

Connectors | |

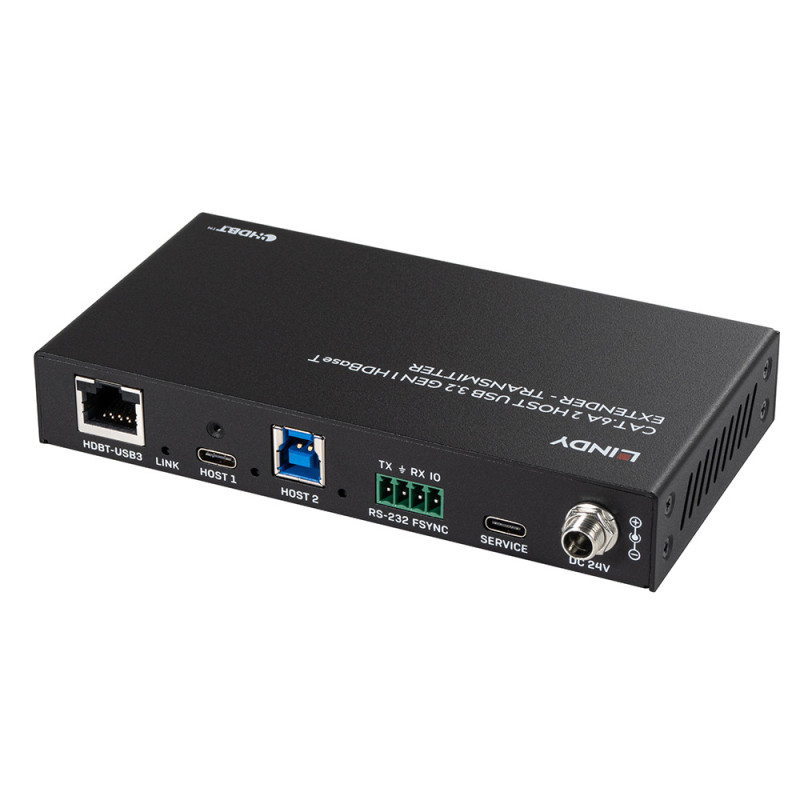

| Sender input | USB 3.0 Type B (Female), Type C (Female) |
| Sender output | RJ45 (Female), Type C (Female), 2 x Type A (Female) |
| Receiver input | RJ45 (Female) |
| Receiver output | Type C (Female), 3 x USB Type A (Female) |
| Control ports | Type C (Female), RS-232 4-Pin Terminal Block |
| Power connector | 5.5/2.1mm DC socket |
Physical properties | |
| Dimensions (WxHxD) | 140 x 75 x 23 mm (5.51 x 2.95 x 0.91 inches) per unit |
| Housing | Metal |
| Net weight | 1.72 kg (3.79 lb) |
| Working temperature | 0° - 40°C (32°F - 104°F) |
| Storage temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 10 - 90% RH (non-condensing) |
Compliance | |
| Product compliance | CE, UKCA, FCC, RoHS REACH, CP65 |
www.lindy.lt
| Height | 75 mm |
| Length | 270mm |
| Weight | 2020 |
| Width | 245 mm |
