DeLOCK 95254 network card

DeLOCK 95254. Connectivity technology: Wireless, Host interface: M.2, Interface: WLAN / Bluetooth. Maximum data transfer rate: 433.3 Mbit/s, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi band: Single-band (2.4 GHz). Product colour: Green, Silver

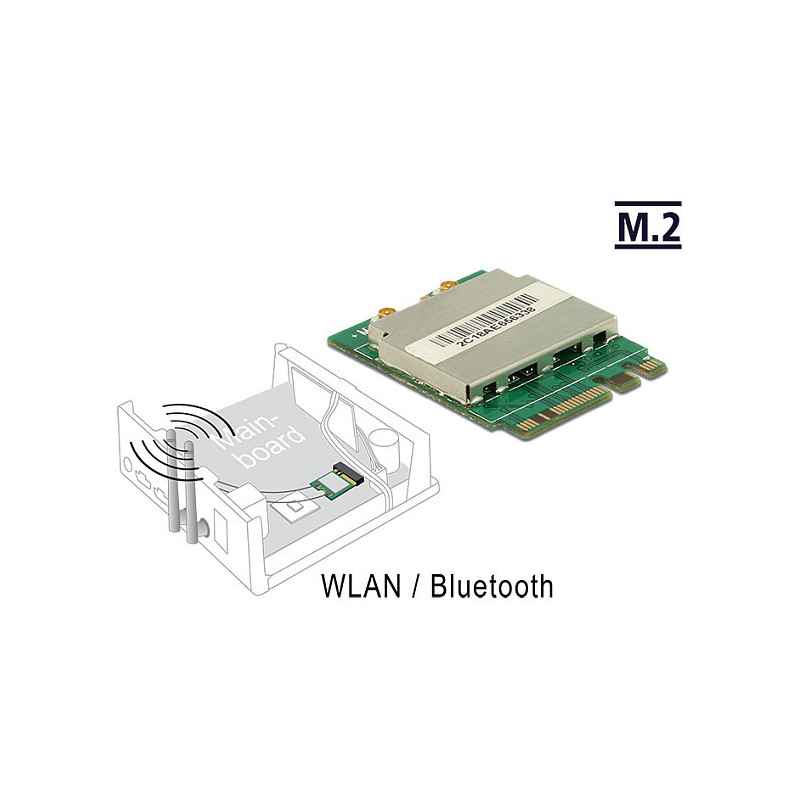

This M.2 module by Delock can be inserted into an M.2 slot with key A or key E. It provides one WLAN interface which exchanges signals via PCIe with the system and one Bluetooth interface which exchanges signals via USB with the system.

Ports & interfaces

Connectivity technology: Wireless
Host interface: M.2
Interface: WLAN / Bluetooth

Network

Maximum data transfer rate: 433.3 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n
Feature: Wi-Fi
Wi-Fi band: Single-band (2.4 GHz)
Frequency range: 2.4 - 2.4835 GHz
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported: 54,150,433 Mbit/s
Security algorithms: WPA, WPA2
Bandwidth (first): 2.4 GHz
Bandwidth (second): 5 GHz
Bluetooth version: 4.0

Design

Product colour: Green, Silver
Antenna design: Internal
Chipset: Realtek RTL8821AE

Power

Output voltage: 3.3 V
Power consumption: 500 mA

System requirements

Linux operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -5 - 65 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 22 mm
Depth: 30 mm
Height: 2.5 mm

Packaging data

Feature: Drivers included
Package type: Box

Packaging content

Feature: Manual

Other features

Antennas quantity: 2
