Steering wheel control adapter for Opel Astra, Corsa, Meriva, Vectra, Zafira 2004- ctsvx002.2

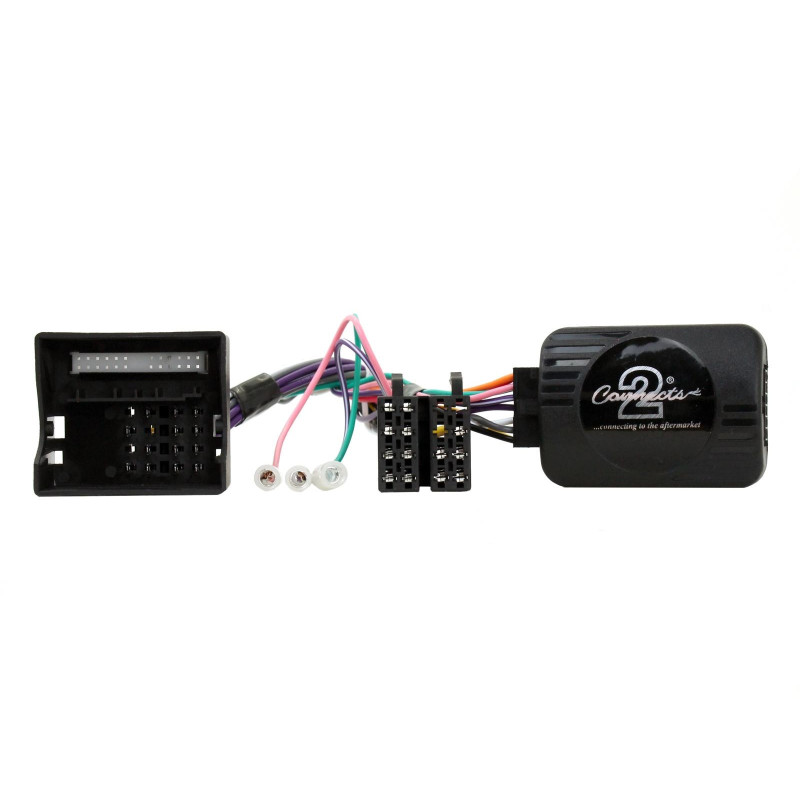

Steering wheel control adapter CTSVX002.2

Looking for a high-quality steering wheel adapter? Have other adapters on the market disappointed you with their poor performance? Our selection includes the CTSVX002.2 steering wheel control adapter, which is designed to withstand heavy use and frequent wear and tear. It's durable and resistant to damage, so you can be sure you're getting high quality at a great price. This adapter is the perfect way to take the next step towards fully automated driving.

Steering wheel adapter for Opel Astra and other models

The CTSVX002.2 steering wheel control adapter is compatible with Opel models such as the Opel Astra, Corsa, Meriva, Vectra, and Zafira 2004. Installation is incredibly simple and quick, and there's no need to cut any wires, as the adapter is plug-and-play. It also includes a USB port and features like Park Brake and Reverse Gear. Choose a steering wheel control adapter from our selection.

Keep the original functions of your steering wheel remote control when replacing your factory radio with a retrofit HU.
Depending on the vehicle equipment as well as the scope of functions and the retrofit HU software, individual operating functions may be omitted or replaced by other functions.
Compare the wiring harness connectors shown in the photos with the connectors in your car and make sure they match visually and technically.
Check if one of the listed OEM head units was originally installed.
Also check vehicle functionality, vehicle settings and SWC functionality before final installation.

Attention:

• CAN bus
• connector: 40-pin Quadlock Opel

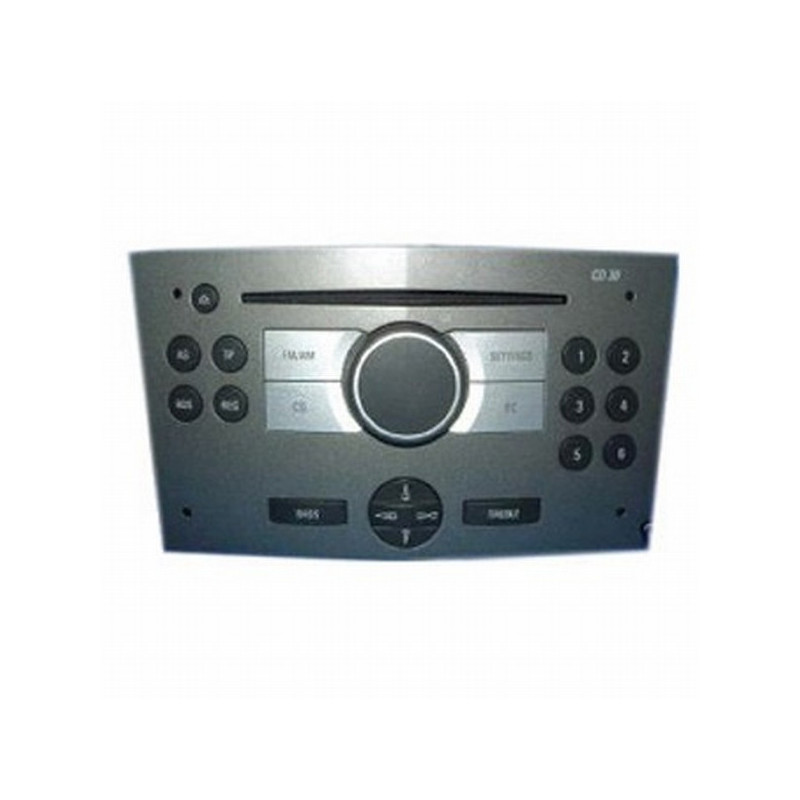

• vehicles with CD30 / CD30MP / CDC40 / CD50 / CD70 / DVD 90 OEM HU
• vehicles with Blaupunkt / Delphi / Siemens VDO OEM HU
• Opel Corsa D vehicles from year of manufacture 2008 > index: 06988

Make and model:

• Nissan Primastar (X83) 09/2006 - 01/2011*

• Opel Agila A (H00) 06/2003 - 10/2007
• Opel Antara (LA) 11/2006 - 11/2010
• Opel Astra H (AH) 03/2004 - 02/2007
• Opel Astra H (AH) 02/2007 - 11/2010
• Opel Combo (C) 10/2004 - 09/2011
• Opel Corsa C (X01) 07/2003 - 10/2006
• Opel Corsa D (S07) 10/2006 - 11/2008
• Opel Meriva A (X01) 11/2005 - 03/2010
• Opel Signum I (Z03) 09/2005 - 08/2008
• Opel Tigra Twin Top (XC) 07/2004 - 11/2009
• Opel Vectra C (Z02) 09/2005 - 09/2008
• Opel Vivaro A (X83) 09/2006 - 01/2011*
• Opel Zafira B (AH) 07/2005 - 06/2010
• Opel Zafira B (AH) 02/2008 - 12/2014

• Renault Trafic II (L/jL) 10/2006 - 01/2011*

*vehicles with a trapezoidal-shaped factory radio

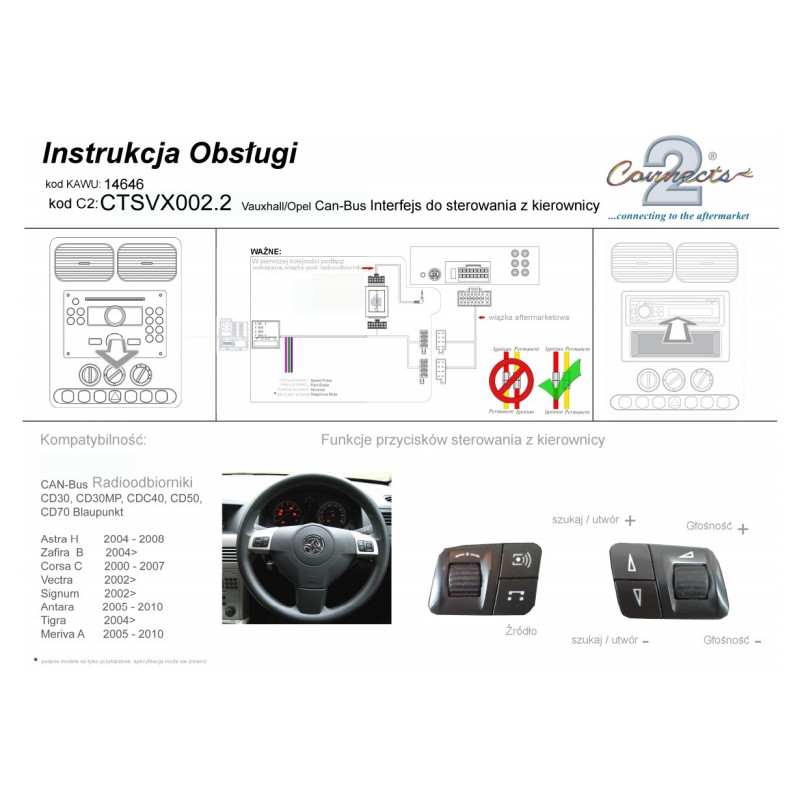

CAN-BUS installation and Quadlock connector d for the following radios CD30 / CD30MP / CDC40 / CD50 / CD70 / CCR2006 / CAR2003 / 2004 / CDR2005 Blaupunkt / Delphi

• red: ignition terminal +12V 15
• orange: lighting terminal +12V 58
• purple/white: reverse gear signal +12V
• pink: speed pulse signal
• green: parking brake signal GND
• total output load capacity: max. 100 mA. current demand above 100 mA:
• 1 relay coil resistance 75 Ohm min.
• 2 relay coil resistance 150 Ohm min.
• SWC

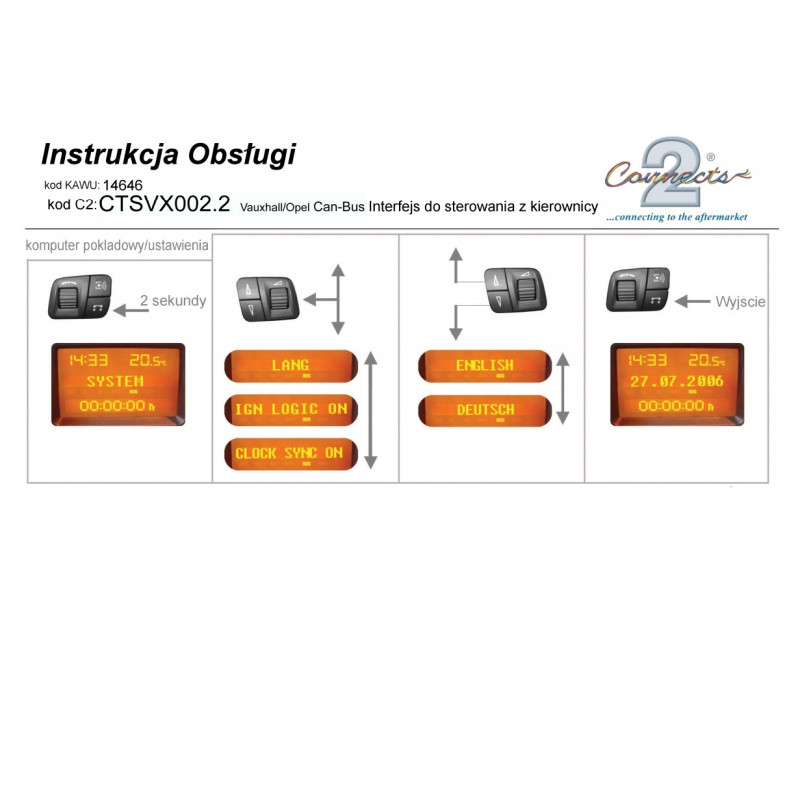

• supported vehicle settings

Attention CHOOSE THE CABLE FOR THE RADIO RECEIVER YOU WANT TO INSTALL (TO BE PURCHASED SEPARATELY)

• ALPINE
• BLAUPUNKT
• BLAUPUNKT NEW YORK / SONY
• CLARION
• JVC
• JVC KW-AVX
• KENWOOD
• NAKAMICHI / PHILIPS
• LG
• PANASONIC
• PANASONIC AV
• PARROT ASTEROID SMART
• PIONEER
• PIONEER AV
• ZENEC
• UNIVERSAL FOR CHINESE RADIO RECEIVERS

Features and benefits

• Allows you to install an aftermarket OEM radio and retain the factory steering wheel controls
• Safety: Allows you to keep your hands on the wheel and focus on driving
• Plug and Play, no wire cutting required
