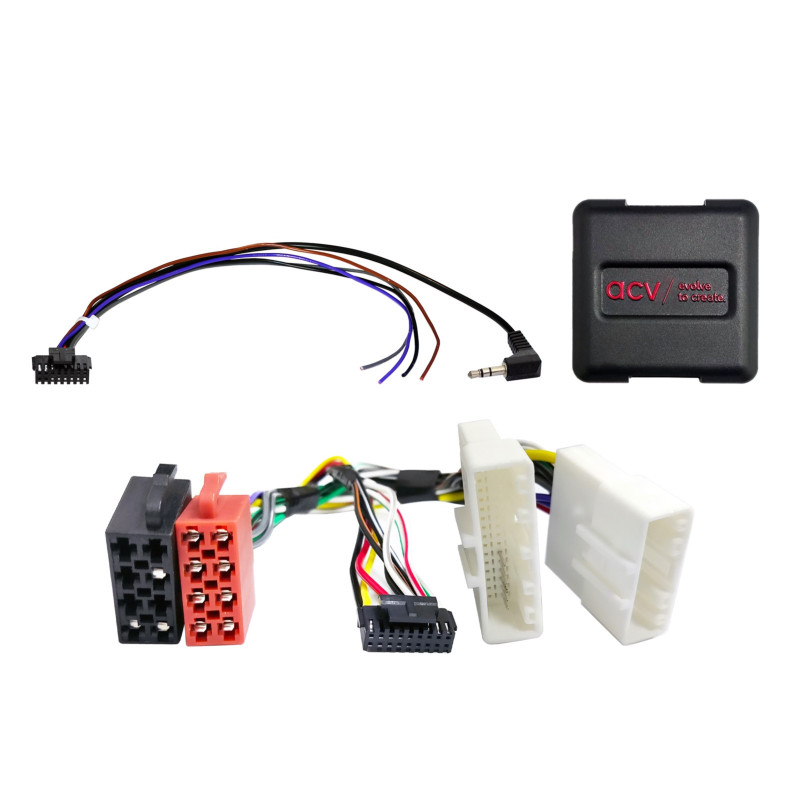

Steering wheel adapter various models 20Pin / 32Pin Nissan Multilead

The steering wheel remote control adapter allows you to retain all factory steering wheel functions when replacing your original radio with an aftermarket model. It is compatible with a wide range of vehicles, including models equipped with OEM navigation systems, rearview cameras, and radio prep.

• Maintaining full functionality of steering wheel controls

• Compatible with factory OEM systems Visteon, Anatel, Browse

• Analog connection support (20- and 32-pin Nissan connectors)

• Designed for many models of Dacia, Fiat, Nissan, Opel, Renault and Smart

• Manufacturer's technical support

• Analog connection:20-pin/32-pin Nissan connector

• OEM Steering Wheel Control → 3.5mm Jack / Loose Cable

• Factory connector codingrequires workshop equipment

• Auxiliary voltage:+12V ignition terminal (15) - protected in fuse box (if necessary)

Example signals:

• Red: +12V ignition terminal (15)

• Orange: +12V lighting terminal (58)

• Purple/White: +12V Reverse Signal

• Pink: Speed ​​Signal

• Green: GND / handbrake signal

The adapter is compatible with many Dacia, Fiat, Nissan, Opel, Renault, and Smart models. Example models:

Dokker, Dokker Stepway, Duster, Lodgy, Logan MCV, Sandero, Sandero Stepway (2016-2022)

Talento (2016-2021)

NV300, NV400, Primastar (2016-2024)

Movano B, Vivaro B (2013-2021)

Captur, Clio IV, Kangoo, Master III, Trafic III, Twingo (2012-2024)

ForTwo (453) (2014-2019)

A detailed list of models and years can be found in the detailed installation instructions.

1. Check the compatibility of the adapter with the vehicle model and the presence of a factory OEM radio.

2. Turn off the vehicle power.

3. Configure the interface hardware settings according to the manufacturer's instructions.

4. Connect the radio connection cable and any additional wires.

5. Connect
