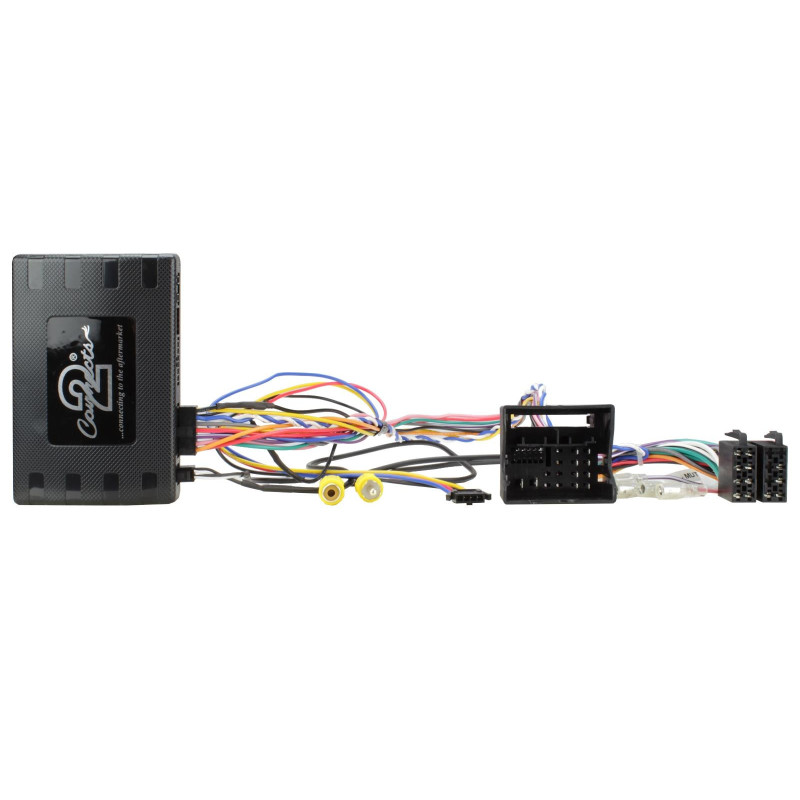

Steering wheel adapter + info adapter man tge, seat, skoda, vw. 52pin quadlock. ctuvw04.

Description

Car manufacturers have begun displaying certain information on the factory device screen. Replacing the original equipment won't preserve previously available features. Drivers will certainly appreciate the display and control options. The interface is our first solution that allows consumers to receive similar messages while controlling the heating or air conditioning, including while parking. The interface supports steering wheel controls and the vehicle's display interface. It is designed for all Alpine AV or AVN products with a direct rearview camera input.

Product features

• Allows you to replace your factory radio with a universal one while retaining the factory steering wheel controls
• Saves vehicle settings and generates a settings menu
• Provides input for an aftermarket rear view camera
• Provides output signals for parking brake, reverse gear, speed pulse
• Safety: Allows you to keep your hands on the wheel and your eyes on the road.
• Plug and play, no wire cutting required
• Select the appropriate main unit connection cable according to the brand of spare part you want to install
• This product has been developed based on carefully documented data and research. Connects2 Ltd. is not responsible for any discrepancies/inconsistencies that may occur due to changes in vehicle production or options, or damage that may occur to the vehicle during component installation. All application data is subject to change.


Note:

• vehicles with steering wheel controls
• Can Bus

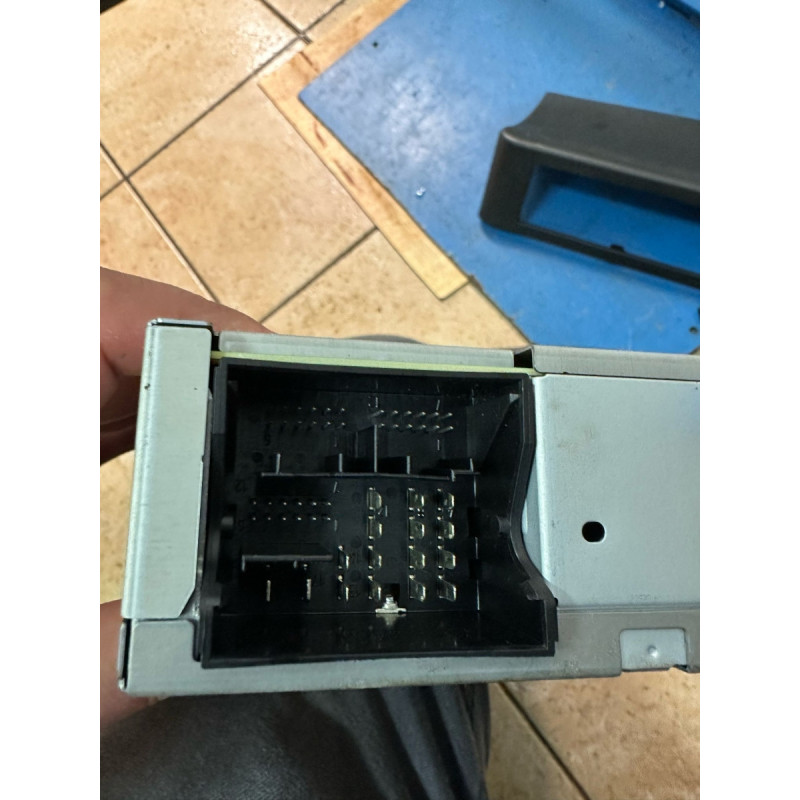

• connector: 52-pin Quadlock VAG
• vehicles equipped with MIB II systems and 8-inch Composition Media touchscreens
• call up menu settings > purple-white feedback output connect to HU
• visualization of menu settings > RCA(m) yellow connect to the reversing camera input and configure
• vehicle settings and vehicle information > reflected on the retrofit monitor rear camera input

• new feature: menu settings: mute button or speech button press 5 x

• depending on vehicle equipment and software:
• not all vehicle settings are supported
• not all vehicle functions are supported
• not all vehicle information is visualized
• operate the CAR vehicle setup menu using the SWC keys > no switch panel needed

Electronic connections are not supported

• vehicles with E-Call function:
• Maintaining the E-Call function MAN/Seat/Skoda/VW 52 Pin Quadlock > Article: 1424-02

Not for vehicles:

• with most OEM reinforced systems
• with an open line
• without OEM preparation > SWC / speakers / HU

• vehicles equipped with front PDC parking assistant > front PDC appears on the display after switching on the ignition
• exit display > confirm with vehicle PDC switch

Make and model:

Man

• MAN TGE 2017 - 2023*/******

Seat

• Seat Arona (KJ) 11/2017 - 06/2021*/**
• Seat Ibiza (6P) 07/2015 - 04/2017*/**/***
• Seat Ibiza (KJ) 07/2017 - 03/2021*/**/***
• Seat Leon (5F) 11/2012 - 12/2016*/***/****
• Seat Leon (5F) 11/2016 - 01/2020*/***/****

Skoda

• Skoda Fabia III (5J) 11.2014 - 08.2018
• Skoda Rapid (NH) 04/2015 - 05/2017
• Skoda Rapid (NH) 05/2017 - 02/2019

VW

• VW Crafter II (SY/SZ) 03.2017 - 2023*/****
• VW Golf VII (AU) 11/2012 - 12/2016
• VW Golf VII (AU) 03/2017 - 05/2020*/**********
• VW Golf Sportsvan (AUV) 03/2014 - 10/2017*/*******
• VW Golf Sportsvan (AUV) 10/2017 - 06/2020*/*******
• VW Grand California (SY/SZ) 03.2019 - 2023*/****
• VW Polo V (6R) 04/2014 - 07/2017*/**********
• VW Polo VI (AW) 11.2017 - 05.2021*/**********
• VW T6.1 (7HC) 11.2019 - 2023*
• VW Taigo (CS) 10.2021 - 2023
• VW Touran (5T) 09/2015 - 2023*/****

*OEM MIB II System
**5-inch OEM color touchscreen monitor
***6.5-inch OEM Color Touchscreen Monitor
****8" Media Plus OEM HU / Composition Media OEM HU
*****8" OEM HU Artwork Media
******8" Media Advanced OEM HU
*******Media composition
