Passive GPS/GNSS signal splitter Fakra Z(m)

GPS/GNSS antenna splitter Fakra Z(m) passive ATTB 4605.01 ATTB 4605.01 is a passive GPS/GNSS antenna splitter that allows you to connect one GPS/GNSS antenna to two receivers. This product comes from a German manufacturer. Antennentechnik Bad Blankenburg, known for its high-quality antenna solutions "Made in Germany." The splitter is suitable for automotive navigation, multimedia, and telematics systems. It allows the use of a single GPS/GNSS antenna signal for two devices without the need to install an additional antenna. The passive GPS/GNSS signal splitter model ATTB 4605.01 has one input. Fakra Z(m) and two exits Fakra Z(m) This allows you to split the signal from one GPS/GNSS antenna to two receivers, such as a car radio, navigation module, GPS tracker, or telematics system. The splitter is passive, so it requires no additional power supply. It operates with a 50-ohm impedance and supports the GPS/GNSS frequency of 1575.42 MHz. Key advantages of the ATTB 4605.01

• original ATTB antenna splitter Made in Germany,
• designed for GPS/GNSS systems,
• allows you to connect one antenna to two receivers,
• passive design without additional power supply,
• Fakra Z(m) input,
• 2 Fakra Z(m) outputs,
• impedance 50 Ohm,
• VSWR <1.5:1,
• compact dimensions,
• ideal for car, navigation and fleet installations.

Made in Germany - Quality Antennentechnik Bad Blankenburg. Antennentechnik Bad Blankenburg has been developing professional antenna solutions for automotive, communications, navigation, and industrial applications since 1919. The company produces antennas and accessories for numerous standards, such as GPS, GNSS, LTE, 5G, GSM, WLAN, DAB+, and TETRA. The production process for ATTB accessories is controlled according to automotive industry standards. This makes the ATTB 4605.01 splitter suitable for installations where a stable signal, good fit, and reliability are essential. Applications: The ATTB 4605.01 antenna splitter is designed for GPS/GNSS installations where a single antenna signal is to be distributed to two devices. It is a practical solution for passenger cars, vans, fleet vehicles, special vehicles, and campers. The product can be used for applications such as:

• splitting the GPS/GNSS signal into two receivers,
• connecting a car radio and an additional GPS module,
• car navigation systems,
• GPS locators,
• telematics systems,
• fleet installations,
• special and commercial vehicles.

Important installation information: Before installation, check the antenna cables, connectors, and adapters. If you experience reception problems, it's worth checking the entire antenna installation and ensuring the cables are undamaged. Interference from additionally installed LED lighting, USB chargers, voltage converters, power supplies, or digital power amplifiers can affect reception quality. Therefore, if you experience signal problems, it's worth checking these installation components as well. Technical data

• Producer: Antennentechnik Bad Blankenburg / ATTB
• Model: 4605.01
• Product type: GPS/GNSS antenna splitter
• Design: passive
• Entry: Fakra Z(m)
• Outputs: 2 x Fakra Z(m)
• Services: GPS/GNSS
• GPS/GNSS frequency range: 1575.42 MHz
• GPS/GNSS signal attenuation/loss: <3.5 dB
• GNSS impedance: 50 Ohm
• VSWR GNSS: <1.5:1
• Power supply: passive, no power required

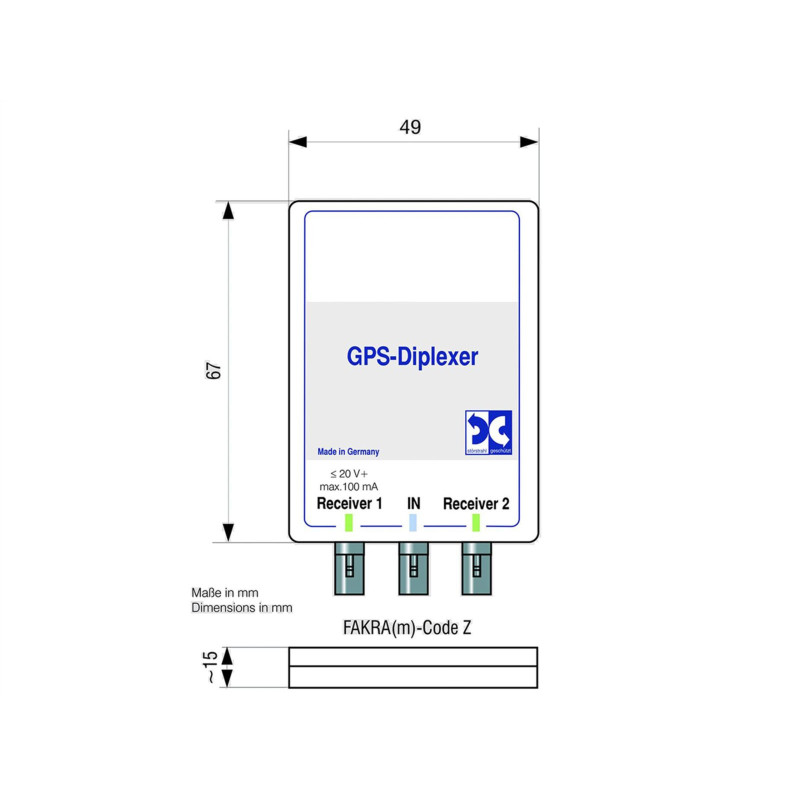

• Dimensions: 6.7 x 5.0 x 1.1 cm
• Country of production: Germany

Why choose the ATTB 4605.01? The ATTB 4605.01 is a good choice when a single GPS/GNSS antenna needs to support two devices in a vehicle. The splitter simplifies installation and reduces the number of additional antennas. The product combines a compact design, Fakra Z(m) connectors, passive operation without power, and "Made in Germany" build quality, making it ideal for professional automotive, fleet, and telematics installations.
