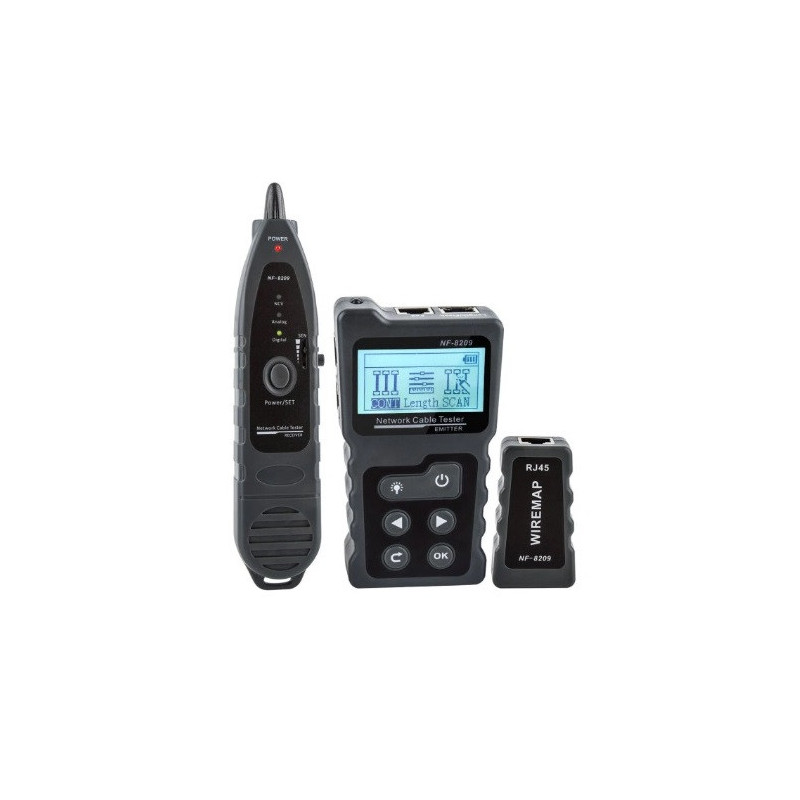

Network cable tester

Network cable tester.
Features:
This is a next-generation test device that includes analog, digital and PoE (Power over Ethernet) operating modes. It consists of a transmitter, receiver and remote controller.
Built-in LED lighting in the transmitter and receiver makes working in low light easier.
STP, UTP cable testing: cable length determination; accurate distance to defect determination.
For use with IEEE 802.3af/at and non-standard PoE devices.
The receiver has a built-in AC/DC voltage meter.
Features:
Cable Integrity Scan: Detects all short circuits, open or crossed wires at both ends, graphically displays results.
Cable length determination: measures the length of the cable/pair, range: 2.5 m ~ 200 m.
PoE testing: indicators of PoE type, voltage, power source polarity, power mode.
Flash function - determines the correct network port based on the frequency of the connected cable (by flashing the lights of the tester and the hub/router port). The screen displays network speed and protocol indicators.
Technical data:
Tested cables: (CAT5e/CAT6a/CAT6 categories) STP, UTP.
Power supply: 6R22, 9V battery (not included) and AAA batteries x3 (not included).
Max. tested cable length: 600m.
Cable length setting range: 2.5m ~ 200m.
Cable length setting accuracy: +/- 1.6m.
Scanning frequency: 130KHz.
Max. scan signal voltage: 9 +/- 1V pp.
Fault location: yes.
Analog/digital signal scanning: yes.
PoE testing range: DC 5-60V standard/non-standard PoE hub.
PoE voltage indicator: yes.
PSE type: standard: IEEE802.3af/IEEE802.3at; non-standard.
Voltage protection: DC 48V 5mA.
LCD display: 128x64 dot matrix with backlight.
Max. operating current of the transmitter: <150mA.
Adjustable sensitivity: yes.
AC voltage indicator: yes.
Max. receiver operating current: <100mA.
Remote control socket: RJ45.
Dimensions:
Transmitter: 125mmx68mmx28mm.
Receiver: 210mmx43mmx27mm.
Remote unit: 65mmx37mmx23mm.
Package:
Transmitter.
Receiver.
Remote device.
User manual and warranty card.
Cable adapter set.
Headphones.
Zippered bag.
Warranty: 24 months
