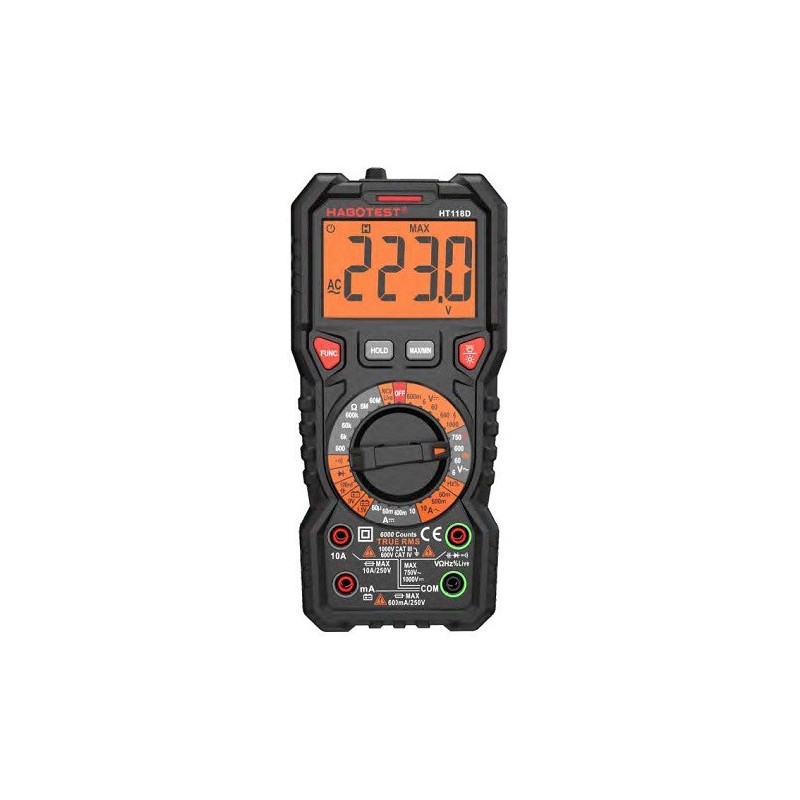

Multimeter DC1000V/10A, AC750V/10A
Features:
The multimeter allows you to measure: direct current, alternating current, direct voltage, alternating voltage, resistance, capacitor capacity up to 100mF, frequency up to 10MHz, and performs diode and circuit continuity tests.
Has a non-contact voltage measurement (NCV) sensor (90V-1000V, 50/60Hz).
With screen backlight, temperature measurement function, low battery warning.
The stand on the back of the case allows you to position the device for better visibility of the readings.
It has special holders for securing cables and a bracket for hanging the multimeter on the wall.
Automatic shut-off saves battery.
6000-digit scale display.
Compact, ergonomically shaped, comfortable to hold in your hand, the body is resistant to mechanical damage.
Comes with test leads. Batteries not included.
Technical data:
DC voltage measurement: 600mV / 6V / 60V / 600V / 1000V; measurement accuracy +/-(0.5%+3).
DC current measurement: 60uA / 60mA / 600mA; accuracy +/-(0.8%+3) / 10A; accuracy +/-(1.2%+3).
AC voltage measurement: 6V / 60V / 600V / 750V; measurement accuracy +/-(1.0%+5).
AC current measurement: 60mA / 600mA; accuracy +/-(1.0%+3) / 10A; accuracy +/-(1.5%+3).
Resistance measurement 600Om / 6kOm / 60kOm / 600kOm / 6MOm / 60MOm; accuracy +/-(0.8%+3).
Capacitance measurement: 10nF / 100nF / 1uF / 10uF / 100uF / 1mF / 10mF; accuracy +/-(4.0%+3) / 100mF; accuracy +/-(5.0%+5).
Frequency measurement: 10 Hz / 100 Hz / 1 kHz / 10 kHz / 10 kHz / 100 kHz / 1 MHz / 10 MHz; accuracy +/-(1.0 %+3).
Working load: 1%-99%; accuracy +/-(1.0%+2).
Temperature measurement range: -20°C ~ +1000°C; accuracy +/-(1.0%+3).
Readings: 6000 numbers.
Auto/manual measurement setting: yes.
Circuit continuity check: yes (with sound and light signals).
Diode test: yes.
Data retention on screen: yes.
NCV sensor: yes.
Backlight: yes.
Flashlight: yes
Low battery indicator: yes.
Automatic shut-off: yes.
True RMS: yes.
MAX/MIN: yes.
Battery testing: 1.5V / 9V.
Power supply: 2x 1.5 V AA batteries (not included).
Weight: 325 g.
Size: 190x88x53mm.
Safety class: EN61010-1, EN61010-2-030, EN61010-2-033, EN61326-1 CATIII 1000V, CATIV 600V.
Warranty: 24 months
