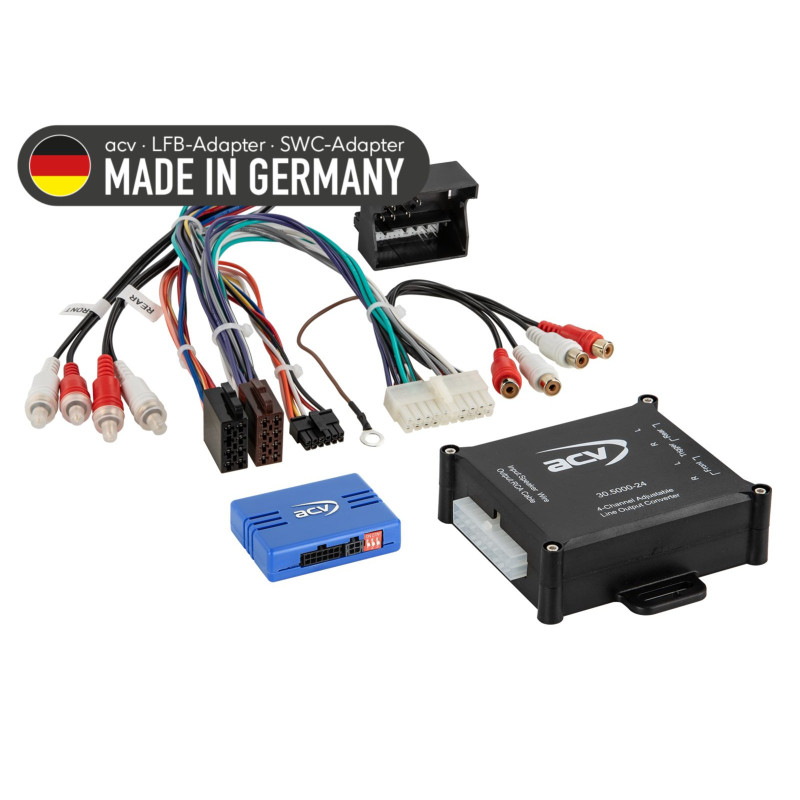

Audi Seat Exeo 40Pin Quadlock Amp Pro Steering Wheel Adapter

Audi steering wheel adapter

The adapter allows you to maintain full steering wheel control functionality after replacing the factory radio with a retrofitted head unit. It ensures CAN bus compatibility and integration with OEM systems in select Audi and Seat Exeo models.

Key features:

• Connectors: 40-pin Quadlock VAG, ISO / Mini ISO

• Exits: RCA (2-channel / 4-channel)

• LED signaling:

  • Blue flashing → searching for CAN bus

  • Blue steady → CAN bus active

  • Red → +12V ignition active

• Supported signals: vehicle speed, reverse gear signal, ignition, lighting

• Extras: amplifier coding capability, RCA noise decoupling filter

Compatibility:

Audi

• A1 (8X) 07/2010 - 04/2018

• A3 (8P) 05/2003 - 04/2005, 10/2004 - 04/2013

• A4 B6/B7 (8E) 11/2000 - 02/2009

• A6 (C5/B4) 05/2001 - 03/2006

• Q3 (8U) 10/2011 - 11/2014, 02/2015 - 06/2018

• R8 (42) 04/2007 - 05/2015

• TT (8J) 09/2006 - 04/2010, 08/2010 - 04/2014

Seat

• Exeo (3R) 03/2009 - 05/2013

Assembly - quick instructions:

1. Compare the adapter connectors with the connectors in your vehicle.

2. Disconnect power to the factory HU unit.

3. Connect the adapter according to the instructions of the HU being modernized.

4. Connect all remaining wires.

5. Connect the main adapter connector last.

6. Configure the device and test the SWC functionality.

Attention:

• Modifications should only be performed by a trained installer.

• Incorrect connection may void the warranty or damage the vehicle.

• If you have any problems, please contact support:
