Antenna Adapter GT13 (f) DIN (m) / SMB (f) Isuzu D-Max 11 / 2020 -

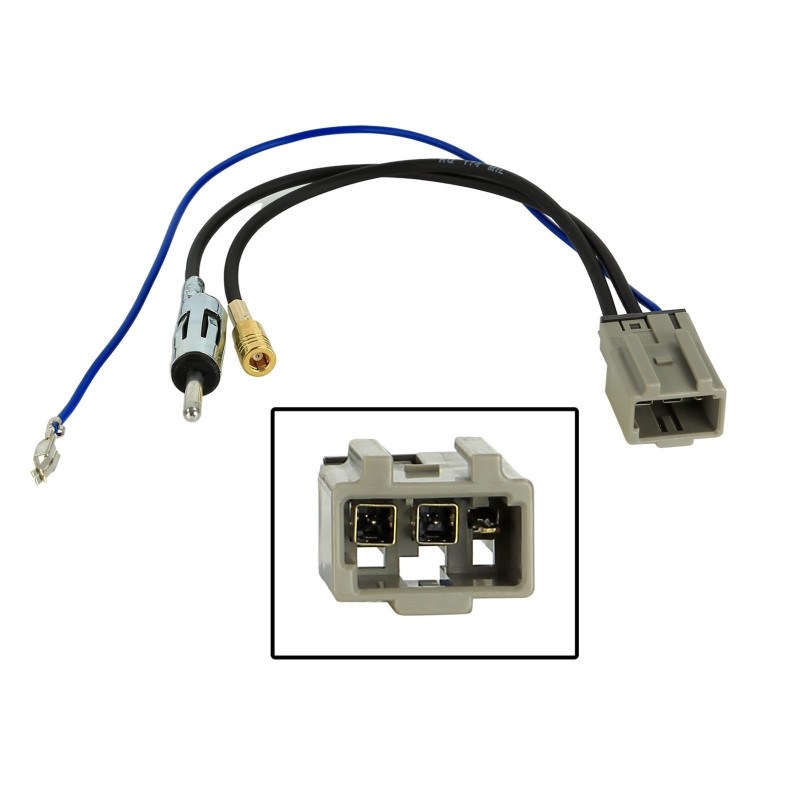

Antenna adapter GT13 (F) → DIN (M) / SMB (F) for Isuzu D-Max 11/2020-2021

The antenna adapter allows you to connect universal car radio for factory antenna installation in Isuzu D-Max 3rd generation This allows you to maintain the functionality of your original antennas. AM/FM and DAB after replacing the factory radio.

The adapter is equipped with connectors GT13 (female) → DIN (male) / SMB (female) and control cable +12V (blue), which powers the active antenna amplifier (antenna remote). This ensures proper radio signal reception without the need to modify the factory installation. The adapter is designed for vehicles without factory touch screen.

Product features:

• allows for the installation of an aftermarket radio in place of the factory one,
• retains support for factory antennas AM/FM and DAB,
• connectors: GT13 (F) → DIN (M) / SMB (F),
• wire +12V (blue) to power the antenna amplifier,
• installation without cutting the factory installation (Plug Play),
• solid workmanship ensuring a stable connection and high quality reception.

Note - if you have problems with radio signal reception, check:

• reception quality on the factory radio (OEM),
• continuity of the antenna cable and correct connection of the antenna adapter,
• presence of +12 V voltage on the antenna control cable (ANT REMOTE),

Additionally, check your vehicle for interference from aftermarket accessories such as:

• LED lighting,
• voltage converters, power supplies and USB chargers,
• digital audio amplifiers.

Such devices may negatively affect the quality of radio signal reception.

Compatibility:

• Isuzu D-Max 3rd generation - 11/2020-2021 (versions without factory touch screen)
