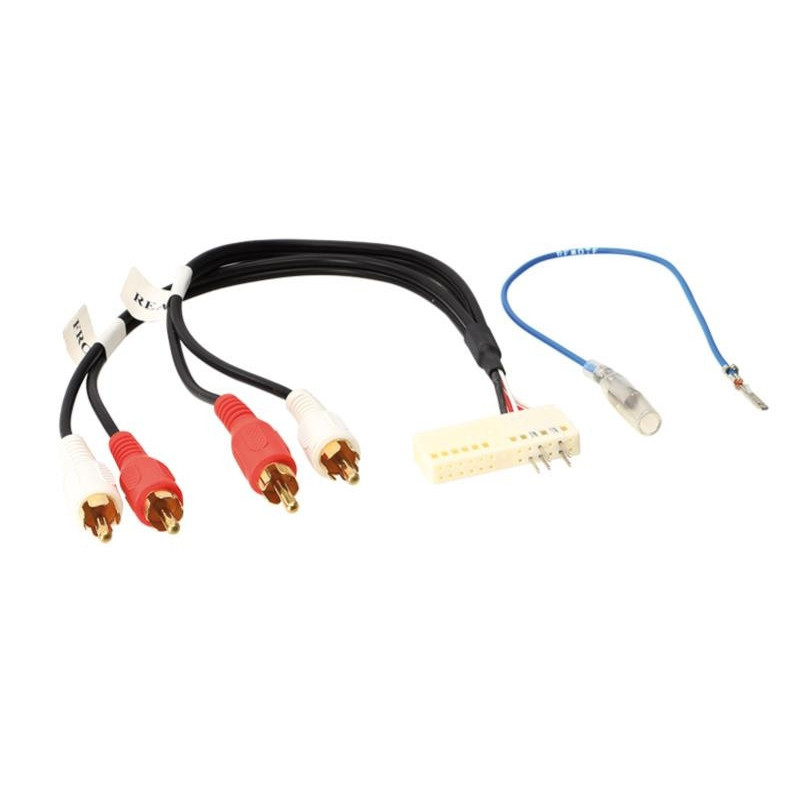

Adapter for active systems audi / vw with quadlock

Active Audi / VW system adapter

Active system adapters retain the functionality of the factory enhanced system.

This allows you to connect an aftermarket HU unit to an amplified OEM system while retaining the OEM amplifier and connected speakers by adapting, matching or converting the signal source output signals to the OEM amplifier input signal.

Depending on the vehicle and the OEM enhanced system installed, various features such as muffler, sound or subwoofer settings may be lost.

In individual cases, depending on the OEM system and the retrofitted radio, increased noise or switching on or off noise may occur.

Check functionality before final assembly.

Attention:

• connector: MQS Quadlock OEM housing reinforced system > RCA(m) front/rear
• vehicles with OEM 2-channel rear speaker amplified system
• Vehicles with 4-channel OEM front/rear speaker amplified by BOSE system
• Blue: +12V Amp remote > 40-pin Quadlock Pin 16
• RCA: Quadlock > MQS C connector Pin 3/9 front / Pin 5/11 rear / 9 GND

Make and model:

• Audi A2 (8Z) 11/1999 - 07/2005
• Audi A3 (8P) 03/2003 - 03/2006
• Audi A3(8L) 09/1996 - 06/2003
• Audi A4 (B5) 10/1994 - 09/2001
• Audi A4 (B6) 11/2000 - 11/2004
• Audi A4 (B7) 11/2004 - 02/2009
• Audi A6 (4B/C5) 04/1997 - 03/2005
• Audi A8 (D2) 05/1994 - 07/2002
• Audi TT (8N) 10/1998 - 06/2006

vehicles with 40-pin Quadlock

Optional for:

VAG 40Pin Quadlock CAN-Bus Kit > ISO/Antenna Fakra > ISO: 12-1324-45-15 VAG 40Pin Quadlock CAN-Bus Kit > ISO/Antenna Fakra > DIN: 12-1324-46-15 VAG 40Pin Quadlock CAN-Bus Kit > ISO/Antenna Fakra(Kit) > DIN: 12-1324-70-15 VAG 40Pin Quadlock CAN-Bus Kit > ISO/Antenna Fakra(Kit) > ISO: 12-1324-80-15 LFB Audi/Seat/Skoda/VW various Fahrzeuge 40Pin Quadlock: 42a-1324-001 SWC Harness 42cx401/42CX402 VAG 40Pin Quadlock: 42cx25
