Active FM or DAB+ windscreen antenna Fakra Z(f)

FM/DAB+ windscreen antenna Fakra Z(f) 12V phantom ATTB 4570.02 ATTB 4570.02 is an active shaft antenna FM/DAB+ Designed for mounting on a vehicle's windshield. The product comes from a German manufacturer. Antennentechnik Bad Blankenburg, which has been developing high-quality antenna solutions "Made in Germany" since 1919. The antenna provides optimized reception properties for FM radio and DAB+ digital radio. It is suitable for passenger cars, vans, campers, caravans, commercial vehicles and anywhere where mounting a roof antenna is difficult or inadvisable. The active windshield antenna for FM and DAB+. The ATTB 4570.02 model operates in the band FM 87.5-108 MHz, DAB+ BIII 174-230 MHz and DAB+ L 1452-1492 MHz The antenna has a cable RG174 250 cm long with a connector at the end Fakra Z(f) .Power is supplied by +12V phantom power Thanks to its active design, the antenna amplifies the signal and helps achieve stable radio reception. An optional antenna splitter is required for simultaneous FM and DAB+ reception. Key benefits of the ATTB 4570.02 antenna

• original ATTB shaft antenna Made in Germany,
• FM and DAB+ radio support,
• active design with +12V phantom power,
• installation on the vehicle windshield,
• Fakra Z(f) connector,
• RG174 cable, 250 cm long,
• optimized reception properties,
• FM range 87.5-108 MHz,
• DAB+ BIII range 174-230 MHz,
• DAB+ L range 1452-1492 MHz,
• FM gain 14 dB,
• DAB+ BIII gain 10 dB,
• low current consumption, maximum 23 mA.

Made in Germany - Quality Antennentechnik Bad Blankenburg Antennentechnik Bad Blankenburg is a German manufacturer of car antennas and antenna accessories. The company develops solutions for numerous communication standards, such as FM, DAB+, GPS, LTE, 5G, GSM, WLAN, Bluetooth, and TETRA. The production process of ATTB antennas is certified according to automotive industry standards. Antenna quality is monitored at our own test benches from the design stage, through series production, to final inspection. This makes the ATTB 4570.02 antenna suitable for demanding automotive installations. Applications: The ATTB 4570.02 windshield antenna is designed for FM or DAB+ radio reception in cars. It can be mounted on the windshield, rear window, or side window, provided the chosen location is free from coatings, metallic particles, and windshield heating ducts. This product is suitable for applications such as:

• FM radio reception in the car,
• DAB+ digital radio reception,
• modernization of car audio installations,
• installation with car radios with Fakra input,
• passenger cars and vans,
• campers, caravans and motorhomes,
• commercial and special vehicles,
• installations where we do not want to install a roof antenna.

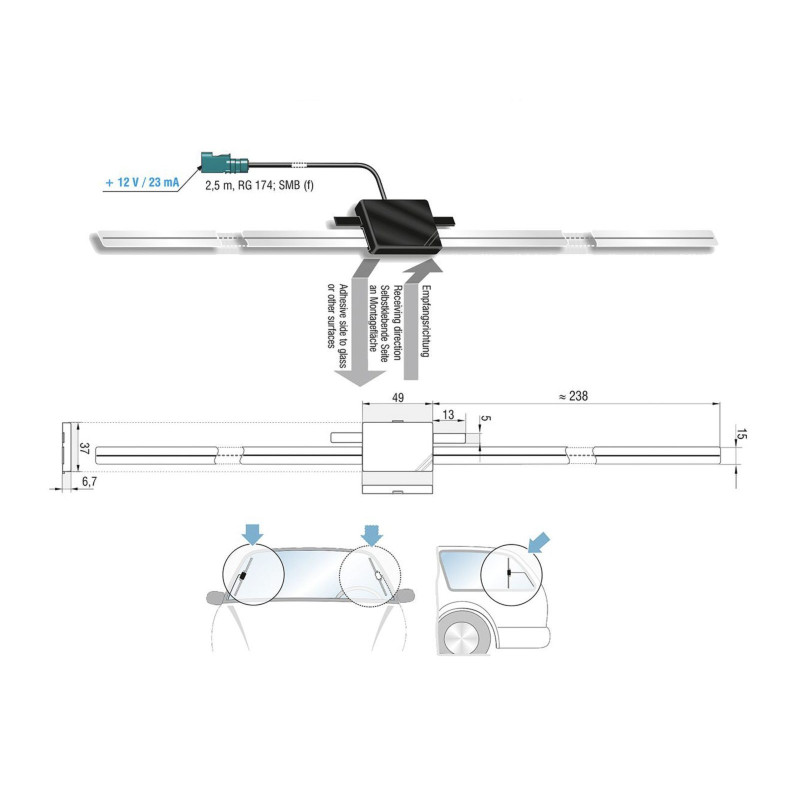

Important installation information: The antenna should be mounted horizontally on the windshield. Maintain a minimum 5mm gap between the antenna and bodywork. The mounting location should be clean, dry, degreased, and free of coatings, metallic particles, and windshield heating wires. An optional antenna splitter is required for simultaneous FM and DAB+ reception. AM/FM DAB+ Fakra(m) > DIN(m) / SMB(f), position 153-4724-05 If you experience reception issues, check the quality of your connections, the antenna cable, and the adapter you're using. It's also worth verifying that any additional LED lighting, USB chargers, voltage converters, power supplies, or digital power amplifiers aren't causing interference. Technical Specifications

• Producer: Antennentechnik Bad Blankenburg / ATTB
• Model: 4570.02
• Product type: active FM/DAB+ shaft antenna
• Reception mode: FM / DAB+
• Installation: on the glass
• Connector: Fakra Z(f)
• Wire: RG174 / L = 250 cm
• Power supply: +12V phantom power
• FM range: 87.5-108 MHz
• DAB+ BIII range: 174-230 MHz
• DAB+ L range: 1452-1492 MHz
• FM profit: 14 dB
• DAB+ BIII gain: 10 dB
• DAB+ L gain: 0 dB
• Power consumption FM/DAB+ BIII: max. 23 mA
• FM/DAB+ impedance: 50 Ohm
• VSWR FM: <2.0:1
• VSWR DAB+ BIII: <2.0:1
• VSWR DAB+ L: <2.0:1
• Country of production: Germany

Optional accessories

• AM/FM DAB+ antenna splitter Fakra(m) > DIN(m) / SMB(f) passive: 153-4724-05

Why choose the ATTB 4570.02 antenna?ATT
