Active DAB+ 12V SMB(f) 90° windscreen antenna

DAB+ SMB(f) 90° active shaft antenna 12V ATTB 4486.01 ATTB 4486.01 is an active shaft antenna DAB/DAB+ Designed for mounting on a vehicle's windshield. The product comes from a German manufacturer. Antennentechnik Bad Blankenburg, which has been developing high-quality antenna solutions "Made in Germany" since 1919. The antenna provides optimized reception properties for DAB+ digital radio. It is suitable for passenger cars, vans, campers, caravans, commercial vehicles and wherever the installation of a roof antenna is difficult or inadvisable. The active windshield antenna for DAB+ radio, model ATTB 4486.01, operates in the band DAB+ BIII 174-240 MHz and DAB+ L 1452-1492 MHz The antenna has a 300 cm long RG174 cable with a connector at the end. SMB(f) Power is supplied externally with 12V. Thanks to its active design, the antenna amplifies the DAB+ signal and helps achieve stable digital radio reception. It's a good solution for upgrading factory audio systems and installing a car radio with a DAB+ tuner. Key advantages of the ATTB 4486.01 antenna

• original ATTB shaft antenna Made in Germany,
• designed for DAB/DAB+ reception,
• active design with +12V power supply,
• installation on the vehicle windshield,
• SMB(f) connector at 90° angle,
• RG174 cable, 300 cm long,
• optimized reception properties,
• DAB+ BIII 174-240 MHz band support,
• DAB+ L 1452-1492 MHz band support,
• DAB+ BIII gain 9 dB,
• DAB+ L gain 11 dB,
• low current consumption, maximum 23 mA.

Made in Germany - Quality Antennentechnik Bad BlankenburgAntennentechnik Bad Blankenburg is a German manufacturer of automotive antennas and antenna accessories. The company develops solutions for numerous communication standards, such as DAB+, GPS, LTE, 5G, GSM, WLAN, Bluetooth, and TETRA. The production process of ATTB antennas is certified according to automotive industry standards. Antenna quality is monitored at our own test benches from the design stage, through series production, to final inspection. This makes the ATTB 4486.01 antenna suitable for demanding automotive installations. Applications: The ATTB 4486.01 windshield antenna is designed for receiving DAB+ digital radio in your car. It can be mounted on the windshield, rear window, or side window, provided the chosen location is free from metal coatings, heating ducts, and dirt. This product is suitable for applications such as:

• DAB+ digital radio reception in the car,
• modernization of car audio installations,
• installation with car radios with DAB+ tuner,
• passenger cars and vans,
• campers, caravans and motorhomes,
• commercial and special vehicles,
• installations where we do not want to install a roof antenna.

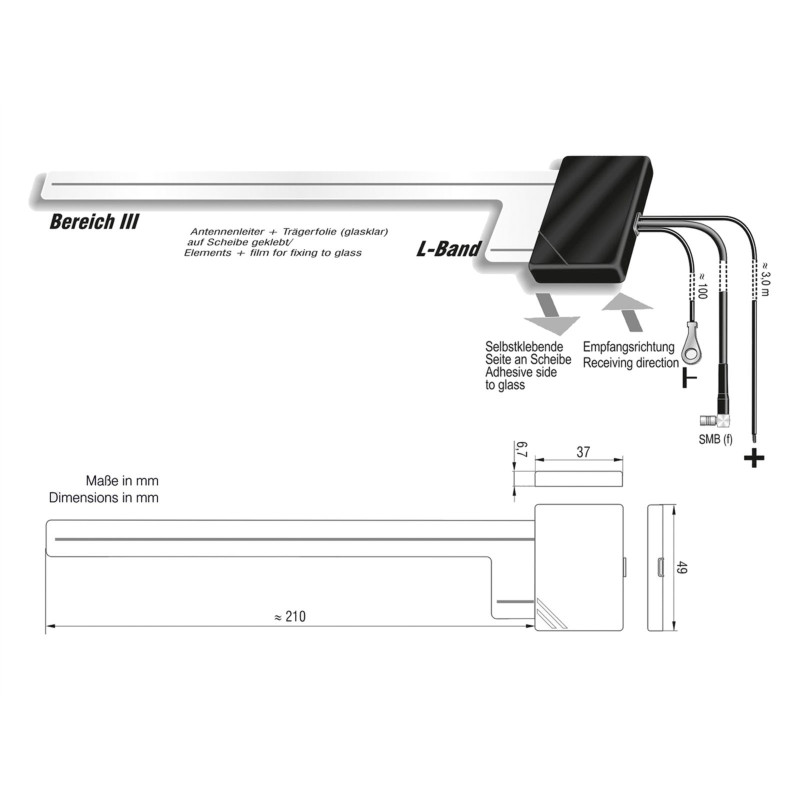

Important installation information: The antenna should be mounted vertically on the windshield. Maintain a minimum 5 mm gap between the antenna and bodywork. The mounting location should be clean, dry, degreased, and free of coatings, metallic particles, and windshield heating wires. The red wire should be connected to the output. +12V antenna remote The ground strap must be connected to the vehicle body. Do not extend the ground strap, as this may impair reception. The ground eyelet's contact surface should be cleaned of paint and protected against corrosion with a suitable anti-corrosion agent. If reception problems occur, it is worth checking whether additional LED lighting, USB chargers, voltage converters, power supplies, or digital power amplifiers are causing interference. Technical Data

• Producer: Antennentechnik Bad Blankenburg / ATTB
• Model: 4486.01
• Product type: DAB+ active shaft antenna
• Reception mode: DAB / DAB+
• Installation: on the glass
• DAB+ connector: SMB(f)
• Connector angle: 90°
• Wire: RG174 / L = 300 cm
• Power supply: +12V external
• Power cord: red, +12V antenna remote / L = 300 cm
• Mass bar: for bodywork / L = 10 cm
• DAB+ BIII range: 174-240 MHz
• DAB+ L range: 1452-1492 MHz
• DAB+ BIII gain: 9 dB
• DAB+ L gain: 11 dB
• DAB+ power consumption: max. 23 mA
• DAB+ impedance: 50 Ohm
• VSWR DAB+ BIII: <2.0:1
• VSWR DAB+ L: <2.0:1
• Country of production: Germany

Why choose the ATTB 4486.01 antenna? The ATTB 4486.01 is a good choice for people who want to add or improve DAB+ radio reception without installing antennas.
