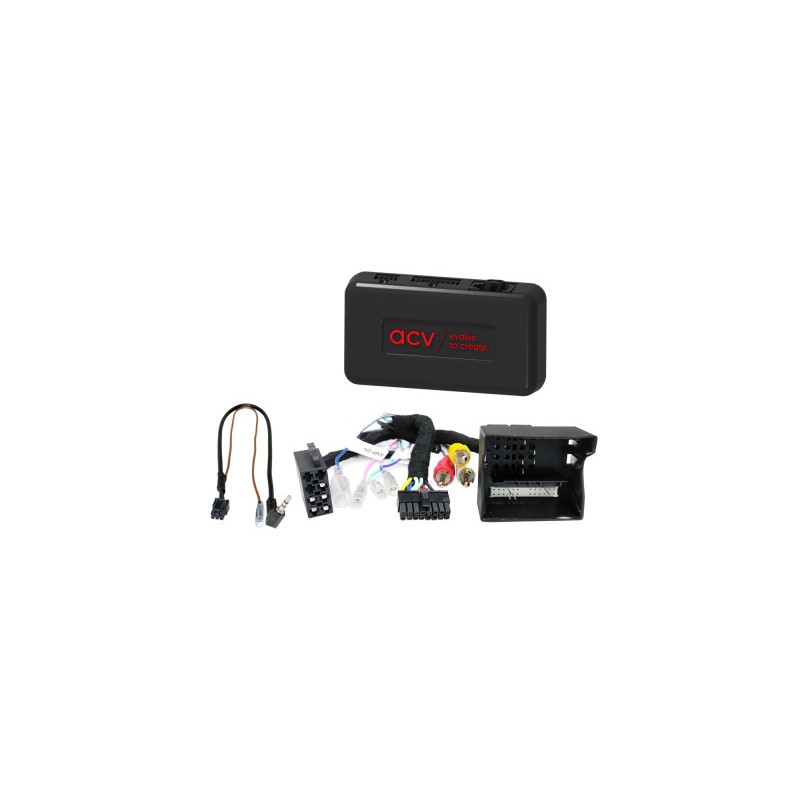

Adapter for steering wheel control porsche 911, cayenne, macan, panamera, amplifier most.

When replacing the factory radio with an aftermarket radio, the original functions of the steering wheel remote control must be retained. Depending on the vehicle's equipment and the scope of functions and software of the retrofit device, individual operating functions may be omitted or replaced by other functions. Compare the adapter plugs shown with the plugs in your vehicle and make sure that they match visually and technically. Also check whether one of the specified original factory radios is installed in your vehicle. Before final installation, check the vehicle's operation, the vehicle settings and the steering wheel remote control for functionality. Note: CAN BUS Connection: 40-pin Quadlock Porsche connector Connection: OEM MOST sound system > Cinch(m) red/white Connection: OEM USB HSD LVDS > USB-A Connection: OEM reversing camera > Cinch(m) yellow Vehicles with OEM PCM 3.1 device Vehicles with most OEM sound systems Vehicles without OEM 360° camera system Vehicles without Burmester 3D High End surround OEM sound system Vehicle settings are not supported Settings DIP switches for the manufacturer of the retrofit device (see BDA) Cinch(m) > front preamplifier output for retrofit radio Fader function is not supportedBrand and model: Porsche 911 (991) 12/2011 - 01/2017 Porsche Cayenne (92A/958) 05/2010 - 12/2017 Porsche Macan (95B) 04/2014 - 08/2018 Porsche Panamera (970) 09/2009 - 07/2016xa0The following signals are provided: Re-imported vehicles or vehicles with different software may have incompatible functions. red: ignition terminal +12V 15 orange: lighting terminal +12V 58 purple/white: reversing signal +12 V pink: speed signal green: handbrake signal ground GND Output load capacity: max. 250 mA. Current requirements greater than 250 mA: 1 Relay coil resistance 75 Ohms min. 2 Ralais coil resistance 150 Ohms min. Steering wheel remote control OEM sound system MORE> muffler function not supportedGeneral installation instructions:Testing:1: Check all operational functions and vehicle settings functions of the OEM device2: Dismantle the OEM device without voltage3: Check all interface connections for correctness and continuity without voltageConnection and connection sequence:1: Make settings and hardware configuration of the interface without voltage2: Check the configuration of the radio connection cable3: Connect the radio connection cable according to the user manual of the retrofitted device4: Make all other connections according to the user manual of the retrofitted device5: Connect the entire installation to the vehicle with the live connection last6: Configure the interface software according to the information in the article text and in the BDA7: Configure the retrofitted device according to the user manual of the retrofitted device steering wheel remote control/camera/FSE/antenna phantom power and others8: Functional test of the steering wheel remote control and vehicleChanges to the hardware configuration of the interface and the radio connection cable:1: Make changes without voltage2: Connection after modification, see 5 to 8 aboveIf the interface or vehicle is not functioning properly:1: Update to OEM device2: Operate OEM device3: Establish CAN bus silence4: Check the hardware configuration of the interface5: Connect after CAN bus rest, see 5 to 8 aboveConnections, changes in connections, alternative connections, connections of loose cables or extensions of connections of loose cables given in the information text or operating instructions are for guidance and information purposes only for trained specialist personnel.Additional connections, changes in the wiring configuration in the wiring harness or the use of alternative connections or extensions of connections:1: Connections and changes may only be carried out by trained specialists2: Before connecting, the connections and changes must be checked for any manufacturer approvals or manufacturer warranty conditions that may be affected by the changes3: Before connecting, the connections and changes must be checked for functionality and correctness by measuring and comparing using the vehicle's wiring layout4: You make connections and changes at your own risk and do not guarantee functionality5: You make connections and changes at your own risk, without guaranteeing damage vehicle, retrofit device or interface6: Modifications to the pre-assembled wiring harness may void the product warranty
