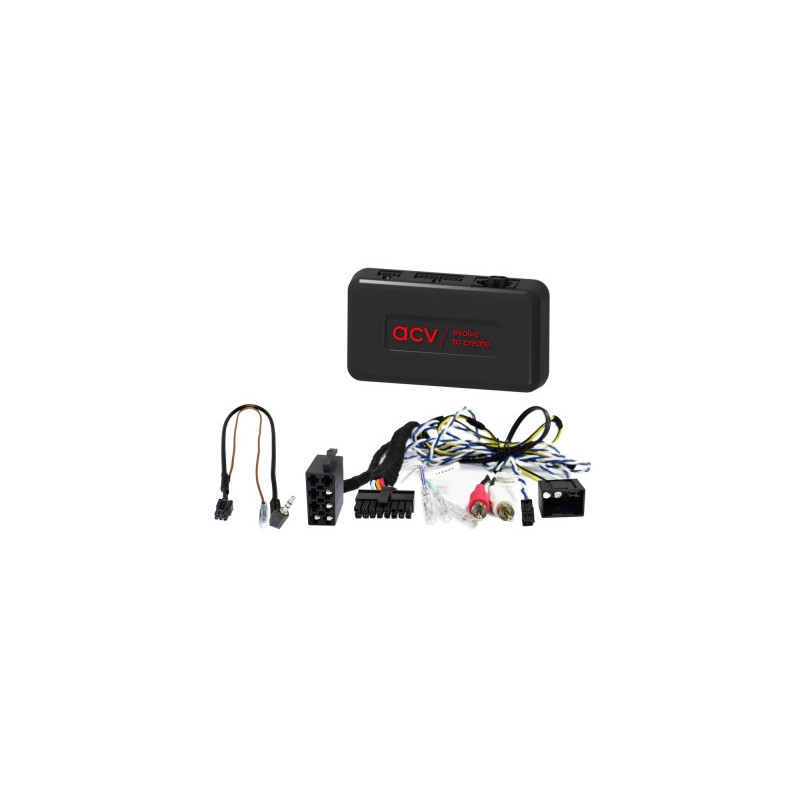

Adapter for steering wheel control mercedes cls, e, slk amplifier most.
Product reference: 13-42xmc013-0
Adapter for steering wheel control mercedes cls, e, slk amplifier most.

Adapter for steering wheel control mercedes cls, e, slk amplifier most.

Product reference: 13-42xmc013-0
Adapter for steering wheel control mercedes cls, e, slk amplifier most.
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
1 26268
Product in warehouse

Guarantee
12 month

Delivery in
4 - 14
business days

Your message has been successfully sent!
Fill in the required fields*

When replacing the factory radio with an aftermarket radio, the original functions of the steering wheel remote control must be retained. Depending on the vehicle equipment and the scope of functions and software of the retrofit device, individual operating functions may be omitted or replaced by other functions. Compare the adapter plugs shown with the plugs in your vehicle and make sure that they match visually and technically. Also check whether one of the specified original factory radios is installed in your vehicle. Before final installation, check the vehicle's operation, vehicle settings and the steering wheel remote control for functionality. Note: CAN Bus Connection: 2-pin Mercedes power supply Connection: 2-pin CAN bus splitter Connection: OEM MOST sound system > Cinch(m) red/white Vehicles with OEM Harman Kardon sound system* Vehicles with OEM MOST25 sound system* Vehicles with audio gateway Vehicles with OEM Command APS NTG1 navigation Vehicles without OEM Command 2.0 / 2.5 navigation Vehicles without D2B optical bus system Cinch(m) > Front preamplifier output for retrofit radio Fader function is not supported Time setting is not supported > If possible, code vehicles on OEM device Audio 20 Antenna extension not included**Brand and model: Mercedes CLS-Klasse (W219) 10/2004 - 06/2008 Mercedes E-Klasse (W211) 03/2002 - 02/2008*** Mercedes SLK-Klasse (R171) 03/2004 - 03/2008The following signals are supplied: Re-imported vehicles or vehicles with different software may have incompatible functions. red: ignition terminal +12V 15 orange: lighting terminal +12V 58 purple/white: reversing signal +12 V pink: speed signal green: handbrake signal ground GND Load capacity of the outputs: max. 250 mA. Current requirements greater than 250 mA: 1 Relay coil resistance 75 Ohms min. 2 Ralais coil resistance 150 Ohms min. Steering wheel remote control OEM sound system MOST25 > Fader function is not supported *In individual cases, depending on the OEM system and aftermarket radio, increased noise or switching on and off noises may occur *Additional OEM components > If necessary, remove the CD changer/TV tuner/telephone module from the MOST ring: *Fiber optic cable connector MOST ring > Article: 771000-2100 *Fiber optic cable loop (f) MOST ring > Article: 771000-2101 ***Electrical compartment function is not supported Optional: **Antenna extension cable Fakra(m)>Fakra(f) 200cm > Article: 1524-200 **Antenna extension cable Fakra(m)>Fakra(f) 500cm > Article: 1524-500 **Antenna adapter Fakra(m)>DIN(m) passive > Article: 1524-01General installation instructions:Test:1: Check all operational functions and vehicle settings functions of the OEM device2: Dismantle the OEM device without voltage3: Check all interface connections for correctness and continuity without voltageConnection and connection sequence:1: Make settings and hardware configuration of the interface without voltage2: Check the configuration of the radio connection cable3: Connect the radio connection cable according to the operating instructions of the retrofitted device4: Make all other connections according to the operating instructions of the retrofitted device5: Connect the entire installation to the vehicle with the live connection last6: Configure the interface software according to the information contained in the article text and in the BDA7: Configure the retrofitted device according to the operating instructions of the retrofitted device steering wheel remote control/camera/FSE/phantom power supply for the antenna and others8: Functional test of the steering wheel remote control and vehicleChanges to the hardware configuration of the interface and the cable for connecting the radio:1: Make changes without voltage2: Connection after modification, see 5 to 8 aboveIf the interface or vehicle is not functioning properly:1: Update to OEM device2: Operate OEM device3: Establish CAN bus silence4: Check interface hardware configuration5: Connection after CAN bus rest, see 5 to 8 aboveConnections, connection changes, alternative connections, connections of loose cables or extensions of connections of loose cables given in the information text or operating instructions are for guidance and information purposes only for trained specialist personnel.Additional connections, changes to the wiring configuration in the wiring harness or the use of alternative connections or extensions of connections:1: Connections and changes may only be carried out by trained specialists2: Before connecting, connections and changes must be checked for any manufacturer approvals or manufacturer warranty conditions that may be affected by the changes3: Before connecting, connections and changes must be checked for operation and correctness by measuring and comparing using the vehicle's wiring layout4: Connections
