Adapter for Mazda 2015 rear view camera - Radio 7 inches

Adapter for Mazda 2015 rear view camera-> Radio 7 inches

A rearview camera is no longer a feature reserved for owners of a select few car models – you can use it virtually regardless of the type of vehicle you drive. Simply use the appropriate equipment to install the camera. If you own a 2015 or newer Mazda, the accessory you need is the 2015 Mazda rearview camera adapter -> 7-inch radio.

For universal rear view camera

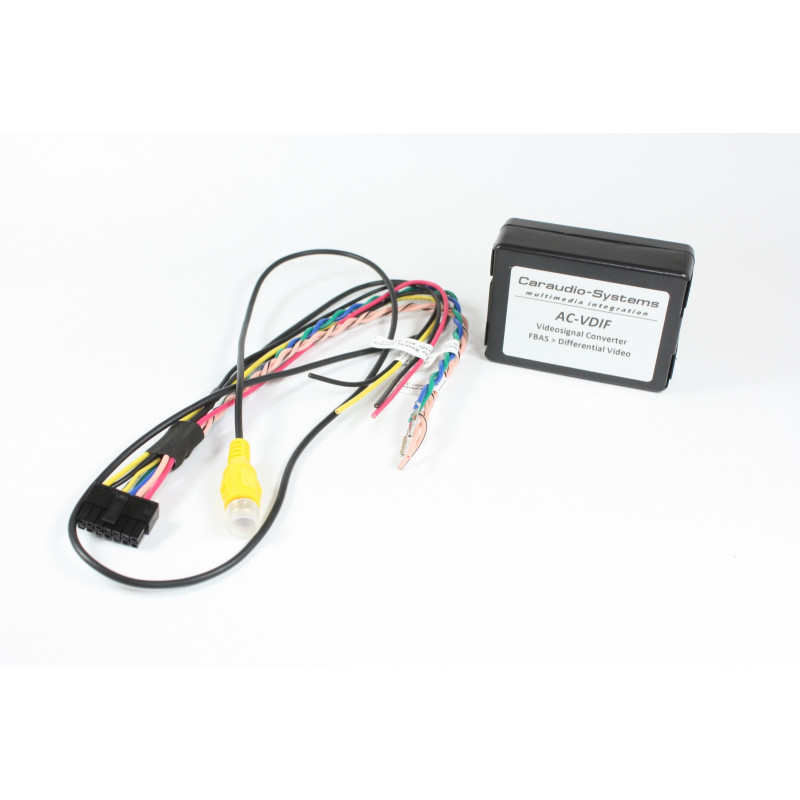

With the Mazda 2015->7-inch radio rearview camera adapter, you can connect a universal NTSC rearview camera to your car. This model is designed for cars with a 7-inch touchscreen radio. You can connect the rearview camera to the factory navigation system or an OEM LCD screen. Below you'll find more technical details and a list of car models that can use this adapter.

The adapter allows you to connect a universal rear view camera (NTSC) for the factory radio with a color LCD monitor. Model manufactured from 2013 with a 7-inch touchscreen radio. Mazda Connect Infotainment System

This interface allows you to connect a rear view camera to your factory navigation system or OEM LCD screen.

Product features

• Reversing camera input

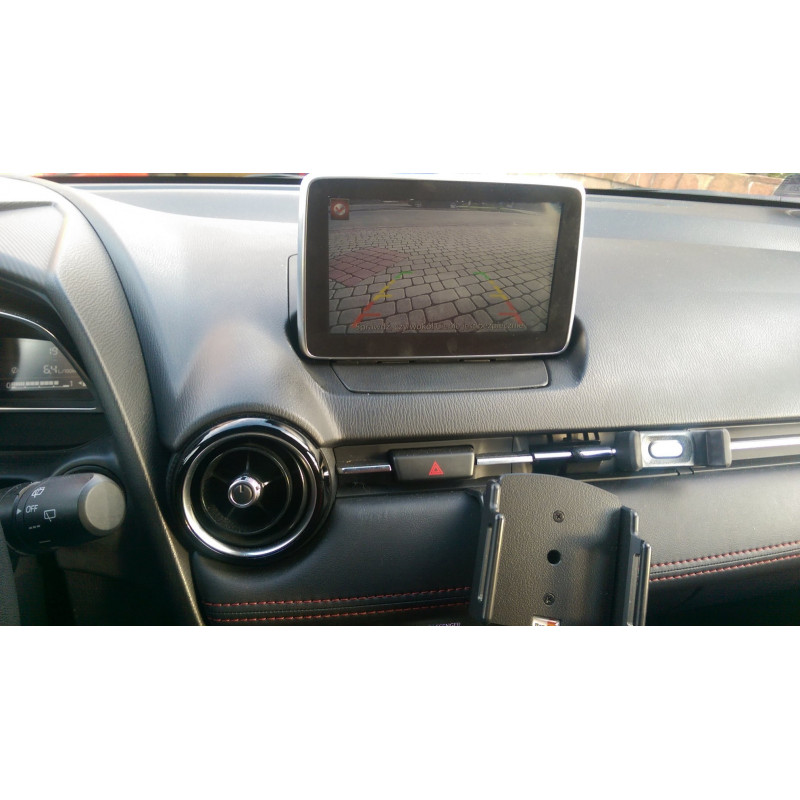

• Automatic switching to rear camera

Navigation system

• Mazda MZD Connect 7 "


Car Compatibility

• Mazda 2 2014 ->
• Mazda 3 2014 ->
• Mazda 6 2015 - 2017
• Mazda CX-3 2015 - 2017
• Mazda CX-4 2016 ->
• Mazda CX-5 2015 - 2017
• Mazda CX-7 2017 ->
• Mazda CX-9 2015 ->
• Mazda MX-5 2014 ->
• Mazda Miata 2016 ->

The red wire of the RL-MZ72D kit should have +12V when the car is unlocked (not just when reverse gear is engaged). This system is very sensitive to camera signal input. It constantly measures whether the camera input is receiving a valid video signal. If the measurement is correct, it opens the camera level when reverse gear is engaged. Additionally, if the radio at the camera input experiences any short-term problems (e.g., poor signal or no video signal), it will only open the reverse camera input after the car has been locked for at least 30 minutes.

Check if the camera has the correct +12V constantly, connect everything as described in the description and let the car close for those 30 minutes.
