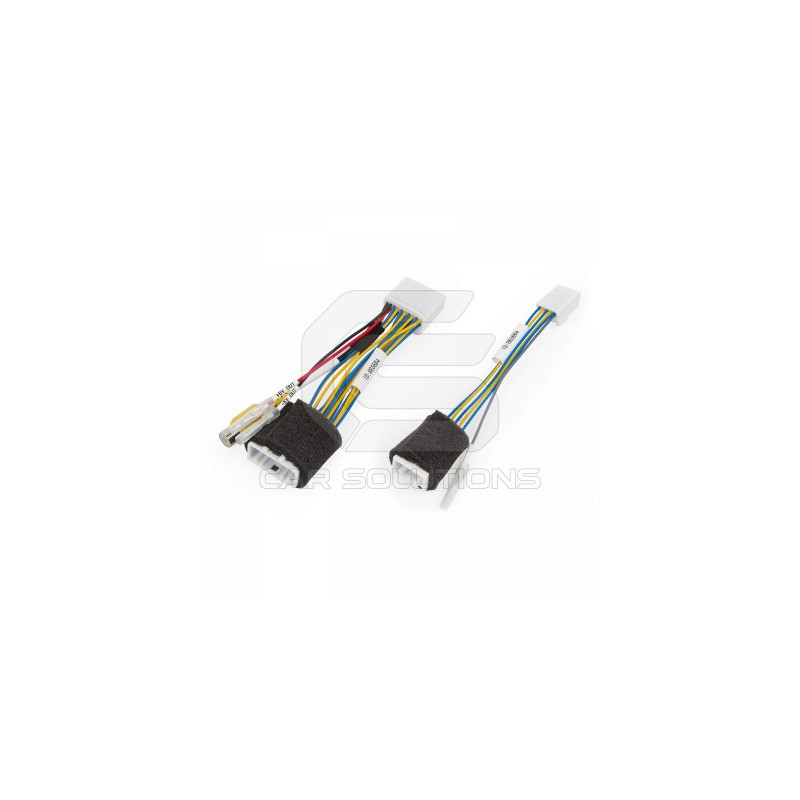

Adapter for connecting a reversing camera toyota gen5 / gen6

Adapter for connecting a rear view camera for Toyota cars with multifunctional MFD displays GEN5 and GEN6.xa0The cable offers Plug Play installation without damaging the factory wiring.The image from the rear view camera will be automatically displayed on the screen when reversing.xa0The device is connected to a 20-pin socket (see:xa0wiring diagram for GEN5xa0,xa0wiring diagram for GEN6xa0).xa0After connection, all factory devices that work with this socket will not be disturbed and will work as before the connection.xa0The package includes a special cable for cars that do not have a rear view camera activation signal on the monitor and are not equipped with a rear view camera connection function by the manufacturer.Note!xa0The power supply for the rear view camera must be obtained from the ACC line (first turn of the key), otherwise the camera input will not be active.xa0Depending on the type of camera (more precisely, on the voltage required for operation), an output voltage of +6 V can be used monitor.xa0If the camera requires more than 6V, it should be connected to the ACC line.COMPATIBILITY: Toyota Auris 2008 - 2014 Toyota Avensis 2006 - 2009 Toyota Corolla 2009 - 2010xa0 Toyota Corolla Verso 2009 -> Toyota Hiace 2009 -> Toyota Hilux 2006 - 2011 Toyota iQ 2008 -> Toyota Land Cruiser C150 2009 - 2013 Toyota Prius 2009 - 2011 Toyota RAV4 2008 - 2011 Toyota Urban Cruiser 2009 -> Toyotaxa0Versoxa02009 - 2011 Toyota Verso S 2006 - 2011 Toyota Yaris 2006 - 2011GEN 5 Radio Systemxa0TNS510 Toyota Auris 2006 - 2011xa0 Toyota Avensis 2006 - 2009xa0GEN 5 System Radioxa0B9030 (TNS700), B9013 (TNS700) Toyota Avensis 2009 - 2011 Toyota Camry 2009 - 2012 Toyota Hightlander 2009 - 2012 Toyota Prius 2009 - 2012 Toyota RAV4 2009 - 2013 Toyota Verso 2009 - 2012EU GEN6 Systemxa0Radioxa0B9012, B9018, B9028, B9016 / B9019, B9017, B9020 / B9029Note!xa0Only NTSC format cameras are supported.
