Adapter for connecting a rear view camera toyota mfd gen5 / gen6 dvd navi monitors

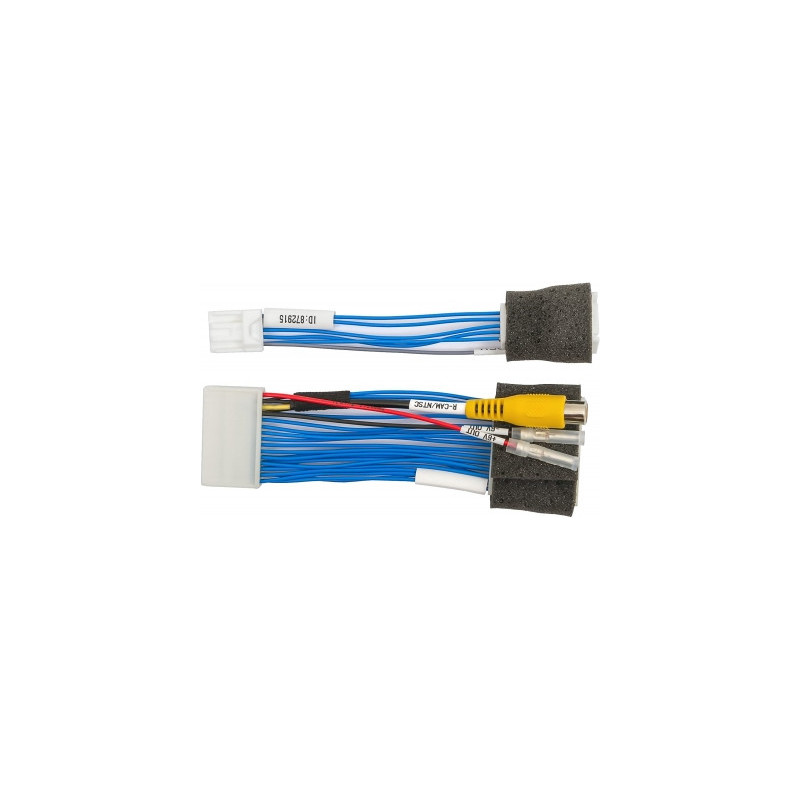

Cable for connecting a rear view camera in Toyota cars with MFD GEN5 / GEN6 multifunction displays with DVD navigation. This cable allows you to install an aftermarket camera Plug Play without damaging the car's wiring. The image from the rear view camera will automatically be displayed on the screen when reversing. The device connects to a 24-pin socket (as shown in the wiring diagram). Once connected, all OEM functions that operate via this socket are preserved due to the pass-through connection type. A special cable for activating the rear view camera function is included. It is designed specifically for cars in which the manufacturer did not include rear view camera functionality (the rear view camera activation signal was not implemented in the head unit). Note: xa0 An additionally installed rear view camera should be powered from the ACC line (first turn of the key), otherwise the camera input will not be active. Depending on the type of camera being connected, namely the voltage required for the camera, you can use the +6V input voltage generated by the monitor. In case the camera requires more than +6V, connect the camera's power to the ACC line. FAQs about camera and video connection cables. Compatibility: xa0xa0Denso GEN5 DVD Navigation in the USAMake and model: System: US Denso GEN5 DVD Navi xa0 Toyota 4Runner 2006-2009 Radio (2DIN*) Toyota Camry, Camry Hybrid 2007-2009 Radio (E7011 / E7012) Toyota Highlander 2011-2012 Radio (E7014 / E7016) Toyota Highlander Hybrid 2011-2012 Radio (E7015 / E7017) Toyota Sequoia 2008-2009 Radio (E7013) Toyota Sienna 2006-2010 Radio (2DIN*) Toyota Solara 2007-2009 Radio (2DIN*) Toyota Tundra 2007-2009 Radio (E7013) Toyota Toyota 2DIN* 2006-2012 Radio (26028 / 26023 / E7007 / E7008 / E7009) *Toyota 2DIN are factory car radios with unified dimensions of 200×100 mm. The model is indicated on the car radio panel. xa0 System: US Denso GEN6 DVD Navi xa0 Toyota 4Runner 2010-2013 Radio (E7028 / E7029) Toyota Avalon 2011-2012xa0Radio (E7031) Toyota Camry, Camry Hybrid 2010-2011 Radio (E7024) Toyota Highlander, Highlander Hybrid 2011-2012 Radio (E7033) Toyota Prius 2010-2011 Radio (E7022) Toyota Sequoia 2010-2012 Radio (E7026) Toyota Sienna 2011-2014 Radio (E7027) Toyota Tundra 2010-2013 Radio (E7026) Toyota Venza 2009-2012 Radio (E7021) xa0 Radio: EU, Asia - Aisin GEN5 DVD Navi Toyota Auris 2006- 2011 Radio: B9005 / B9006 Toyota Avensis 2006 - 2011 Radio: 2DIN* Toyota Camry 2006 - 2010 Radio: B9007 Toyotaxa0Corola 2006 -2011 Radio: (B9005 / 2DIN*); Toyota Verso Yarisxa02006 -2011Radio:xa0(2DIN*) Toyota Hiace 2006 - 2010 Radio:xa0(2DIN*) Toyotaxa0Hilux 2006 - 2010xa0Radio:xa0(2DIN*) Toyota LC150 2006 - 2010xa0Radio:xa0(2DIN*) Toyotaxa0Previa 2006 - 2010 Radio:xa0(2DIN*) Toyota RAV4 2006 - 2010 Radio B9004 / 2DIN* Toyota Verso 2006 - 2009 Radio:xa0(2DIN*) Toyota Yaris 2006 - 2012xa0Radio:xa0(2DIN*) Toyota 2006-2012: Toyota 2DIN* (B9008 / B9013 / B9014) xa0 *Toyota 2DIN - This is a factory radio with a universal dimension of 200×100 mm. The model is indicated on the radio panel. Adapter for connecting a Toyota MFD GEN5/GEN6 DVD Navi Monitors reversing camera, an easy way to connect a camera. Connecting a camera allows us many additional possibilities while driving, and above all, ensures our safety while driving. While it is true that the adapter for connecting a reversing camera will not protect us from a collision or accident, its presence will help us when we need to prove our innocence after the fact. Moreover, the adapter for connecting a Toyota MFD GEN5/GEN6 DVD Navi Monitors reversing camera allows us to connect it safely without damaging the original car wires.
