Adapter do sterowania z kierownicy Renault Trafic, Master 2015-

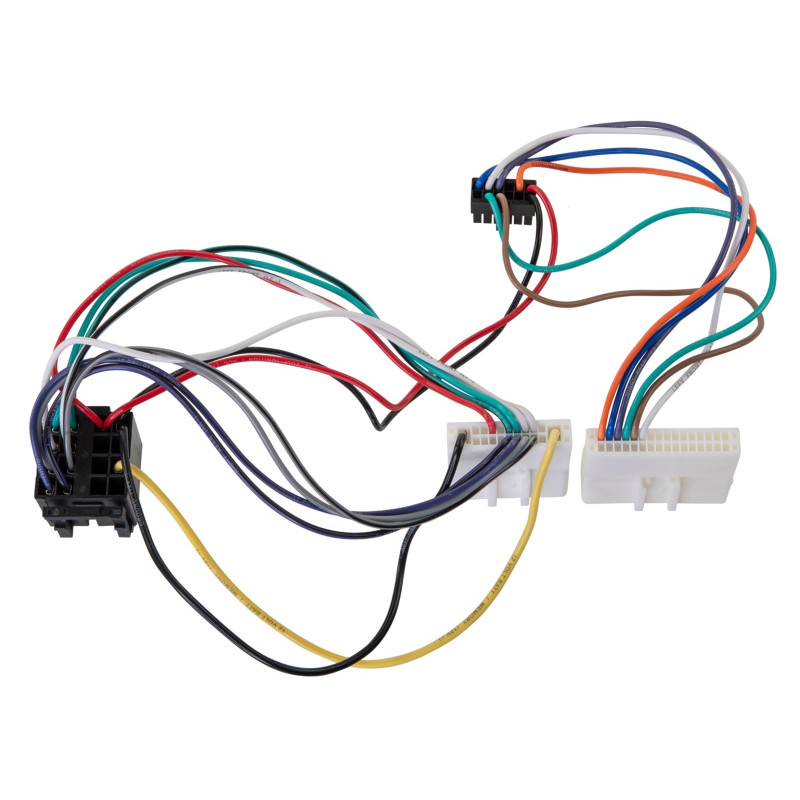

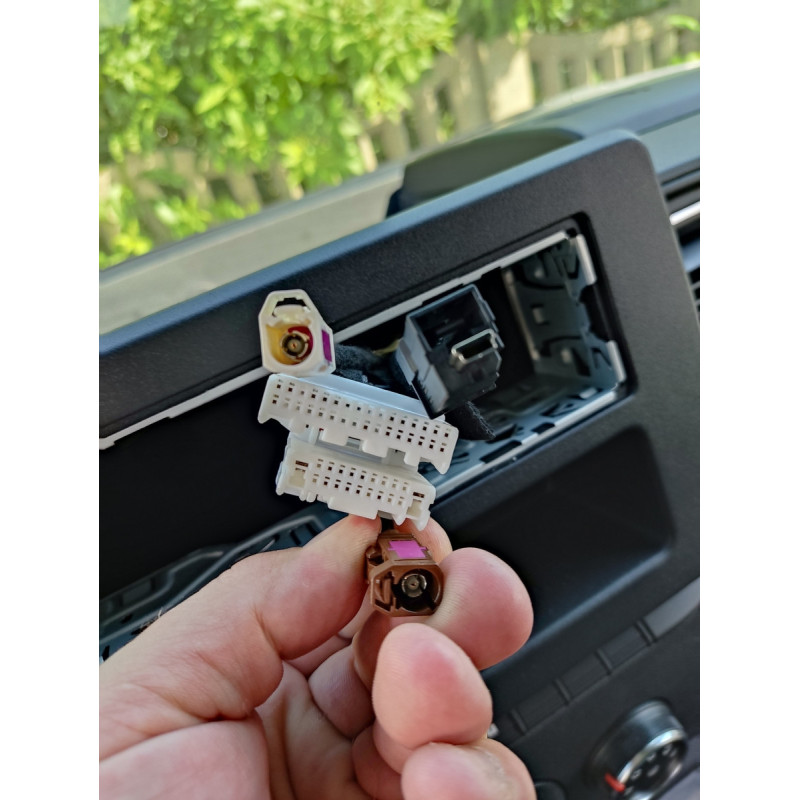

Steering Wheel Adapter for Dacia / Fiat / Nissan / Opel / Renault / Smart. Retain the original functions of your steering wheel remote control when replacing your factory radio with an upgraded head unit. Depending on your vehicle's equipment, the functionality and software of the upgraded head unit, individual operating functions may be omitted or replaced with other functions. Compare the wiring harness connectors shown in the pictures with those in your vehicle and ensure a visual and technical match. Verify that one of the listed OEM head units was originally installed. Also verify vehicle functionality, vehicle settings, and SWC functionality before final installation.

Attention:

• analog

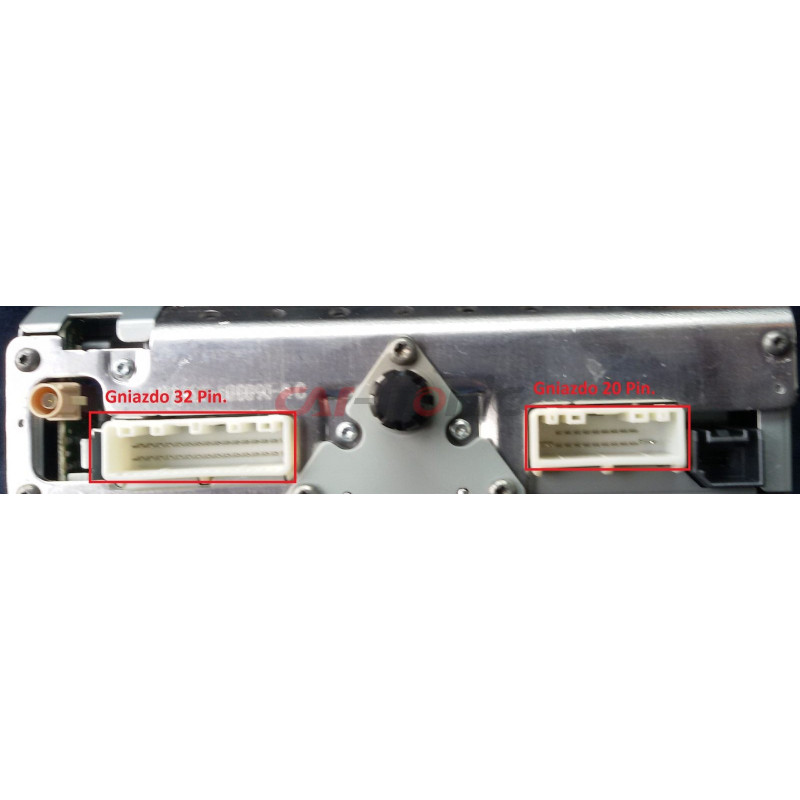

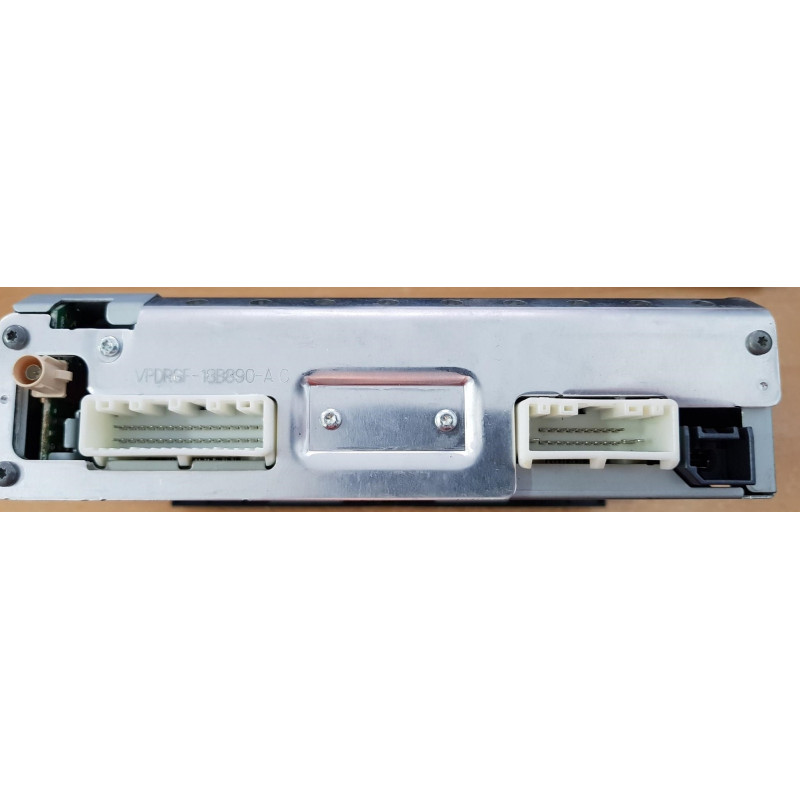

• connector: 20-pin / 32-pin Nissan
• check DIP switches (see manual)
• 2018 vehicles> red ignition power terminal +12V 15 fuse box secured> if needed
• 2018 vehicles> interface red ignition power terminal +12V 15 fuse box secured > if necessary

vehicles:

• Renault Trafic Renault Trafic III (J/JL) 09/2019 - 03/2022 with PDC
• Nissan Primastar (4/J4) 09/2021 - 2024 with PDC
• optional Chimes PDC interface Nissan Primastar/Renault Trafic > item: 42cxpdc-trafic3-1

diagnostics LED:

• blue steady > Interface active +12V ignition power present
• red > steering wheel remote control button function recognized

Make and model:

Dacia

• Dacia Dokker (SD) 03/2017 - 11/2020*
• Dacia Dokker Stepway (SD) 03/2017 - 11/2020*
• Dacia Duster (SR) 01/2018 - 07/2021*
• Dacia Lodgy (SD) 03/2017 - 01/2022*
• Dacia Lodgy Stepway (SD) 03/2017 - 02/2022*
• Dacia Logan MCV (SD) 11/2016 - 09/2020*
• Dacia Logan MCV Stepway (SR) 05/2017 - 09/2020*
• Dacia Sandero (SD) 11/2016 - 09/2020*
• Dacia Sandero Stepway (SD) 11/2016 - 09/2020*

Fiat

• Fiat Talento (ZAF 296) 07/2016 - 10/2021*/**

Nissan

• Nissan NV300 (4/J4) 11/2016 - 06/2019*/**/***
• Nissan NV300 (4/J4) 06/2019 - 09/2021*/**/***
• Nissan NV300 (4/J4) 05/2021 - 09-2021*/**/***
• Nissan NV400 (M) 08/2014- 07/2020*/**/***
• Nissan NV400 (M) 07/2020 - 12/2021*/**/***
• Nissan Primastar (4/J4) 09/2021 - 2024**/****

Opel

• Opel Movano B (X62) 10/2013 - 09/2019*/**
• Opel Movano B (X62) 10/2019 - 08/2021*/**
• Opel Vivaro B (X82) 06/2014 - 01/2019*/**

Renault

• Renault Captur (R) 06/2013 - 03/2017*
• Renault Captur (R) 03/2017 - 12/2019*
• Renault Express (RJK) 05/2021 - 2023****
• Renault Kangoo Rapid (W) 05/2013 - 05/2021
• Renault Kangoo ZE Rapid (W) 05/2013 - 06/2022
• Renault Kangoo III (RJK) 05/2021 - 2023**
• Renault Master III (M) 09/2014 - 08/2018**
• Renault Master III ZE (M) 06/2018 - 06/2020**
• Renault Master III (M) 10/2019 - 2024**
• Renault Trafic III (L/JL) 09/2014 - 07/2019*/**
• Renault Trafic III (L/JL) 09/2019 - 03/2022*/**
• Renault Trafic III (L/JL) 05/2021-2024**/***
• Renault Twingo (AH) 09/2014 - 04/2019*/**

Smart

• Smart ForTwo (453) 11/2014 - 06/2019*

The following signals are provided:

• Re-imported vehicles or vehicles with different software may be incompatible in terms of functionality.
• SWC

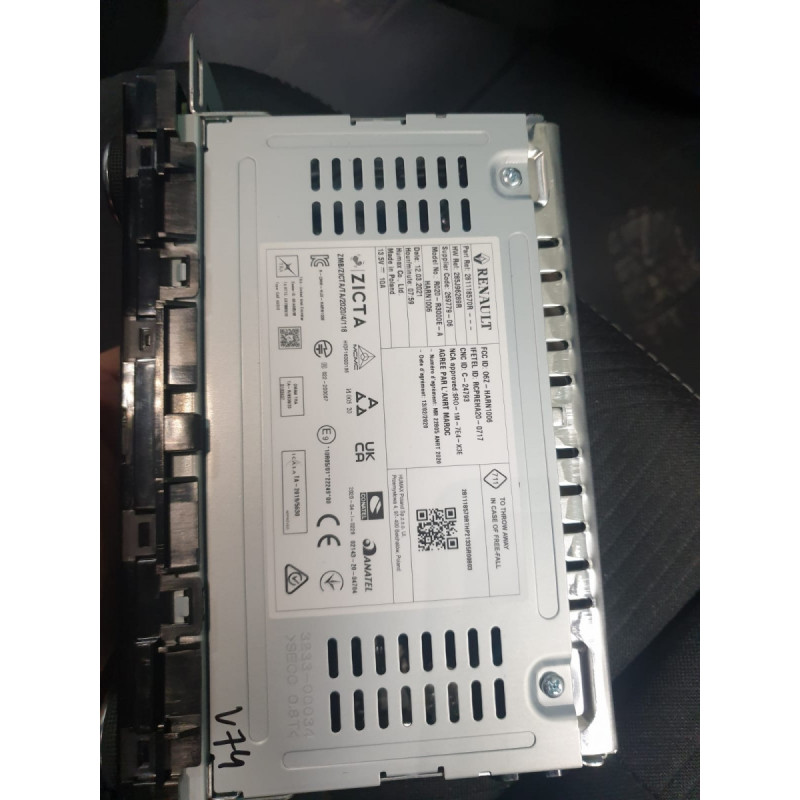

*vehicles with Visteon Anatel RO13-X07 OEM HU without CAN bus **vehicles with Browse 1-DIN OEM HU with 2 black knobs **vehicles with open dashboard ***vehicles with 1-DIN OEM HU ****vehicles with Browse Visteon 1-DIN OEM HU

HU Application:

• Multilead different HU: 42arc100
• Alpine 3.5 mm jack connector: 42arc101
• Blaupunkt 2010 > 3.5 mm jack connector: 42arc107
• Blaupunkt 2010 > Key1 / Key2 / (GND) connector: 42arc000
• China Hu Key1/Key2/(GND): 42arc000
• Clarion 3.5 mm jack connector: 42arc104
• Digital Dynamics single-wire connector: 42arc108
• ESX Key1 / Key2 Connector: 42arc000
