Adapter do kamery cofania Fiat Ducato (ZAF 250) 11.2021 -

Fiat Reversing Camera Interface

Rearview camera adapters are required to retain the factory rearview camera. They allow you to connect the factory-equipped camera to an aftermarket device with a camera input.

Depending on the vehicle and equipment, the adapter provides a Cinch video signal, +6V power/ground for the OEM camera and a +12V reversing signal or must be connected at a suitable location in the vehicle.

Vehicles with 360° camera systems or systems with movable guide lines may not be compatible. Before installation, please verify the correct adapter assignment to the OEM connector. Many retrofit devices must be set to the camera function in the menu.

Adapter for Fiat Ducato (ZAF 250) reversing camera 11.2021 ->, problems with a non-working camera will no longer bother you!

A rearview camera is a truly practical car accessory. Even true driving virtuosos appreciate their functionality, as challenging conditions can be a challenge for anyone, regardless of driving experience. The Fiat Ducato (ZAF 250) Rearview Camera Adapter (November 2021) allows you to connect a factory camera to an aftermarket device.

Make and model:

• Fiat Ducato (ZAF 250) 11/2021 ->

• Connection: loose cables
• Connection: OEM camera Fakra(D) > Cinch(m) yellow

Attention:

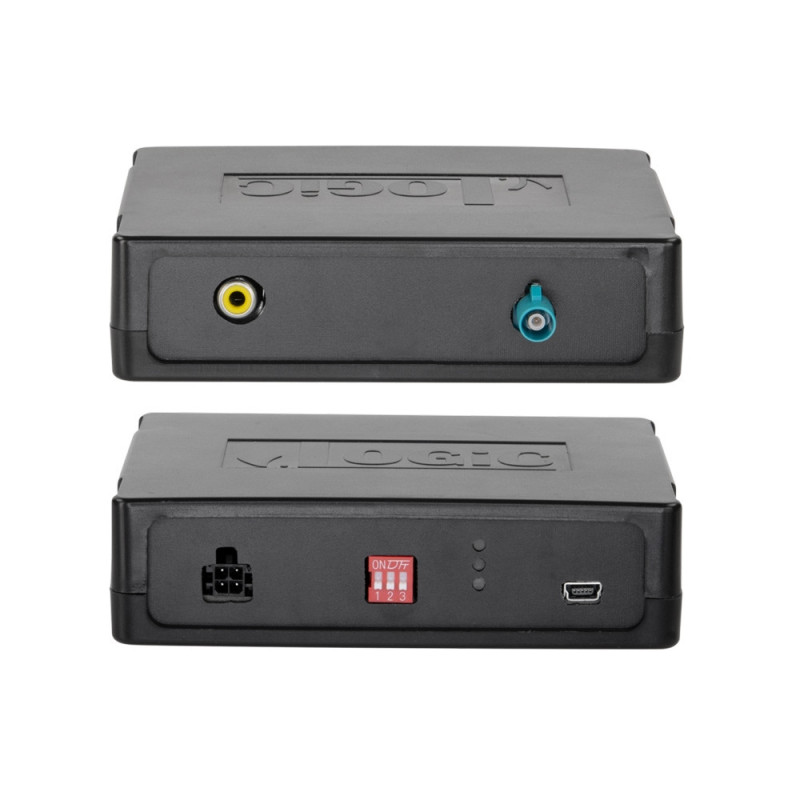

connector: loose wires connector: OEM Fakra L(f) camera > Fakra Z(m) connector: HU retrofit reversing camera input > RCA(f) yellow

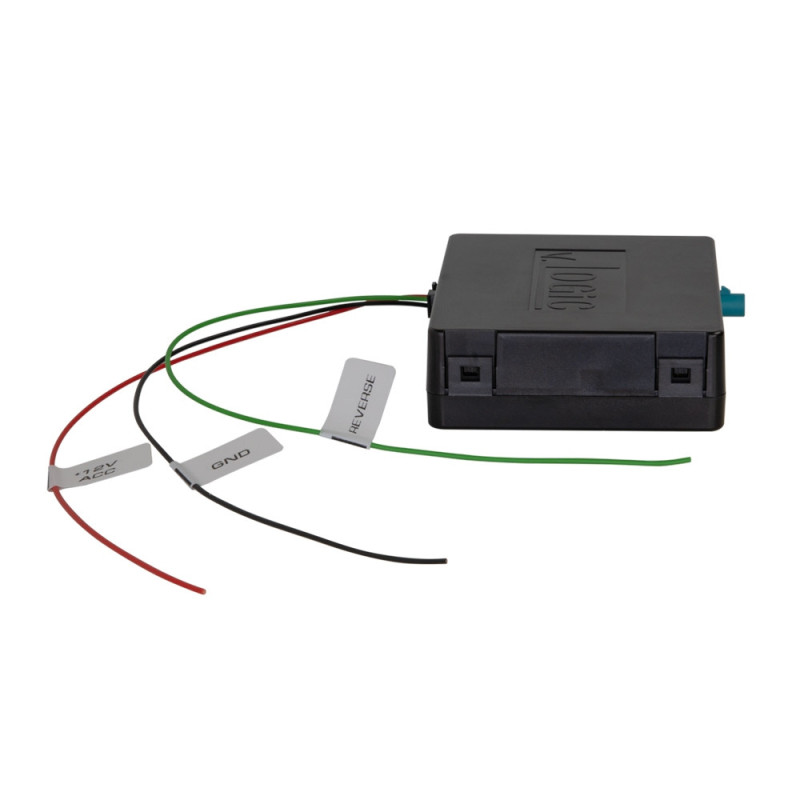

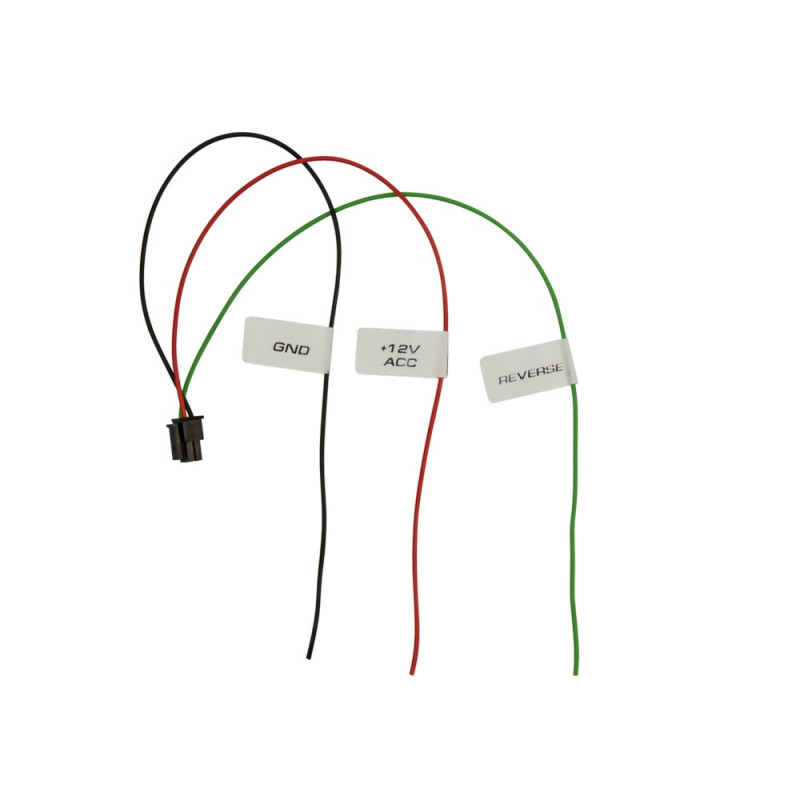

connection:red: ignition terminal +12V 15 with fuse black: GND terminal 31 green: reverse gear signal input +12V

Camera signal:adjust the voltage-free DIP switch position

Camera type 1: DIP switch 1 off / 2 off / 3 off Camera type 2: DIP switch 2 on / 2 off / 3 off Camera type 3: DIP switch 2 off / 2 on / 3 off

LED:red: interface in operation green: reversing signal activated blue: camera signal camera type correct
