Adapter do kamery Audi MMI3G, MMI3G+ A4 (B8), A5 (8T), A6 (4F), A7 (4G), A8 (4E), Q5 (8R), Q7 (4L)

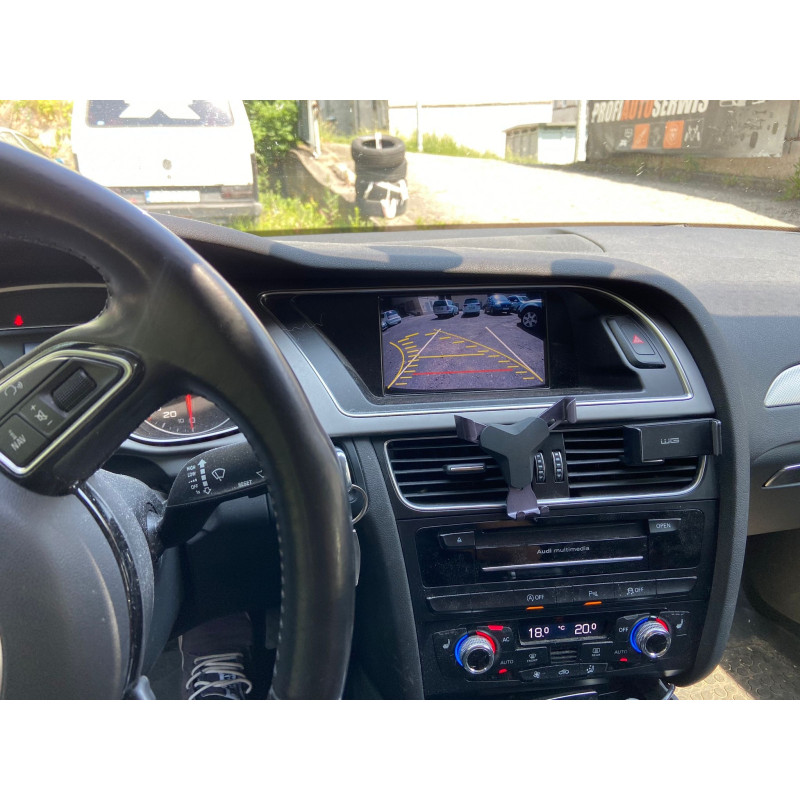

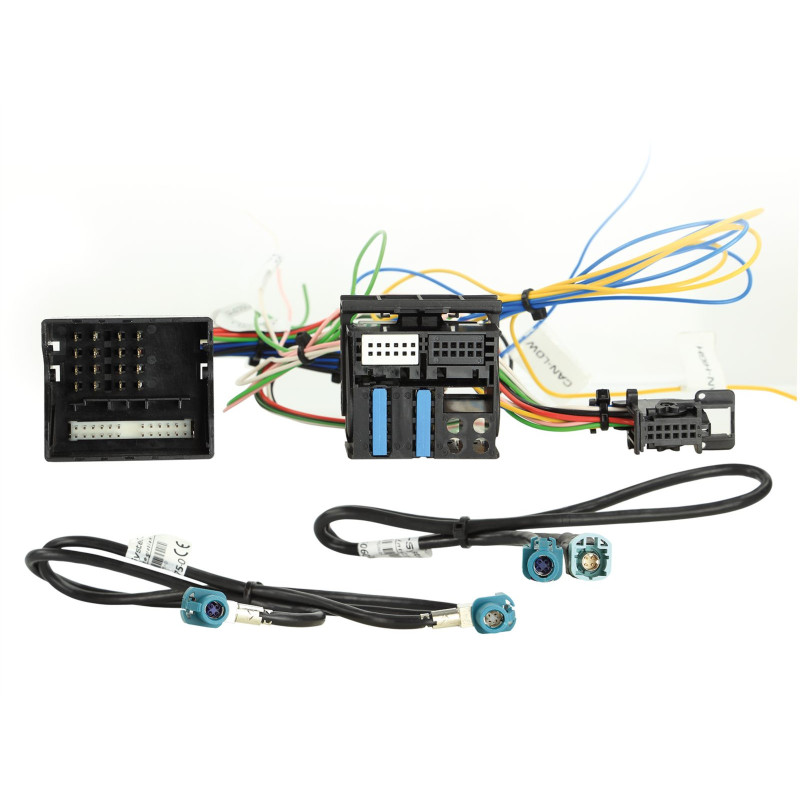

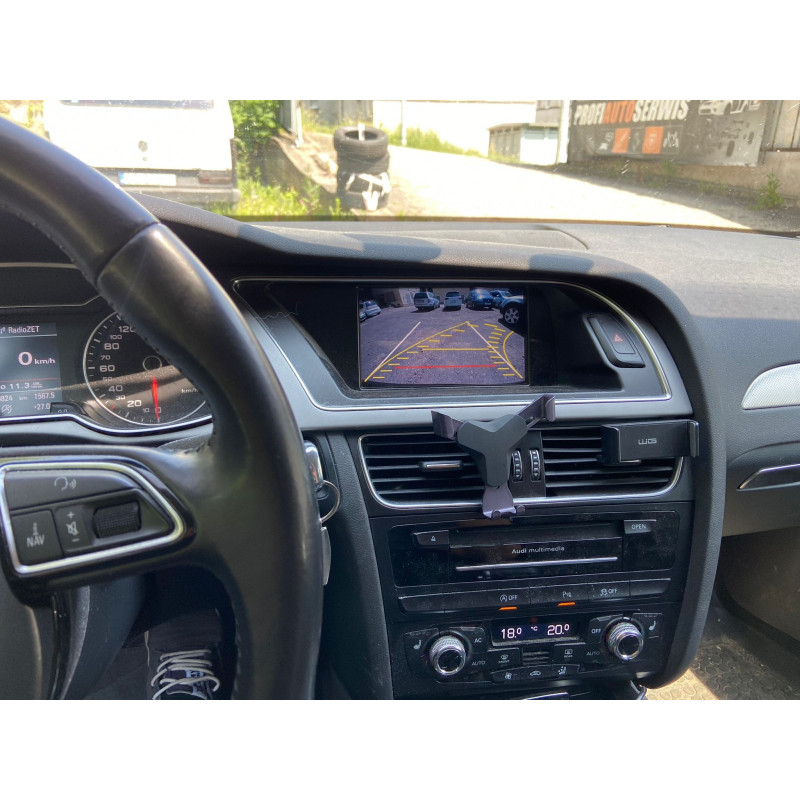

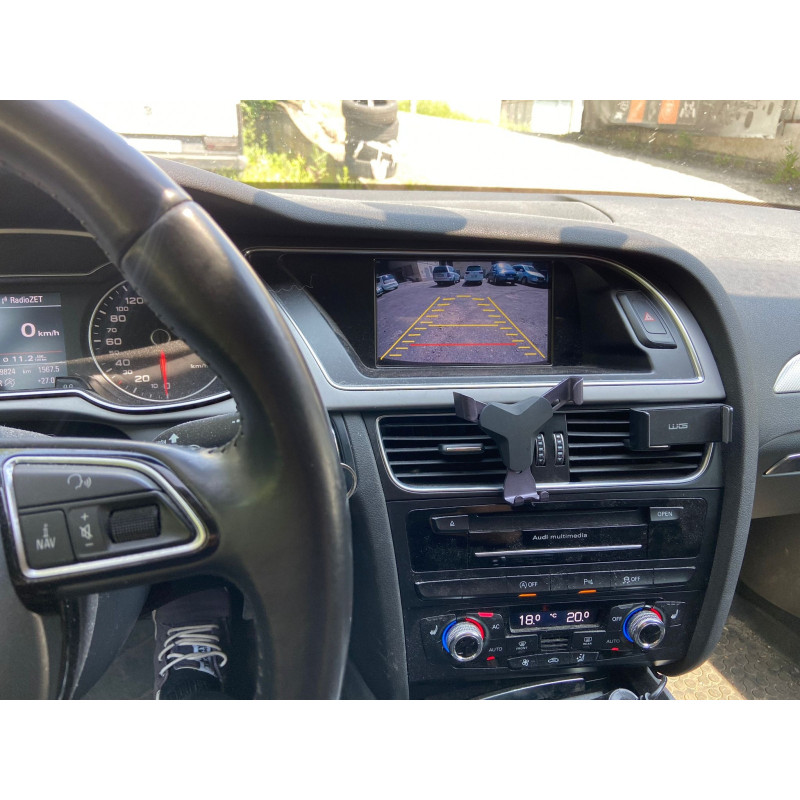

Adapter for Audi MMI3G, MMI3G+ cameraInstalling a dashcam is becoming increasingly common among drivers. It offers numerous benefits and improves road safety. To install a dashcam, you'll need the necessary components. One of these is an adapter. The device is designed for Audi owners. The v.LOGiC interface allows you to connect the front and rear cameras to the MMI3G and MMI3G+ systems, automatically merging the image when in reverse gear.

Car camera adapterWhat are the features of this product? • Custom configuration on the screen, • Dynamic lines, • Input for rear and front camera, • Automatic switching for rear view camera in any MMI operating mode, • Input for front camera, • Manual camera switching (only for vehicles with PDCTaste), • Compatible with all factory video accessories (e.g. rear camera, TV tuner), • USB port update for software updates by the consumer.

Video input for aftermarket cameras front and rear.

• MMI Navigation (Plus) 7" or 8"
• MMI 3G High or Basic,
• MMI3G +


Note: In case ofPosition faults Fig. 4 incompatibility with the optical distance of the OPS parking sensors. Only the sounds of the PDC sensors are retained.

Make and model:

• Audi A4 (B8) 05/2009 - 08/2015
• Audi A5 (8T) 11/2008 - 06/2016
• Audi A6 (4F) 08/2008 - 03/2011
• Audi A6 (4G) 04/2011 - 09/2014
• Audi A7 (4G) 07/2010 - 05/2014
• Audi A8 (4E) 09/2008 - 03/2010
• Audi A8 (4H) 03/2010 - 09/2017
• Audi Q5 (8R) 11/2008 - 03/2017
• Audi Q7 (4L) 05/2009 - 03/2015


Technical specifications• Operating voltage: 10.5V to 14.8V, • Quiescent current: <0.1mA, • Operating current: ~ 190mA, • Power consumption: 2.6W ~, • Temperature range -30 ° C to + 80 ° C, • Weight: 208g, • Dimensions 103 x 30 x 105 mm (width x height x length).
