Adapter do kamery Audi A1,A4,A5,A6,A7Q3,A5,Q7 MMI 3G / 3G+ basic / high

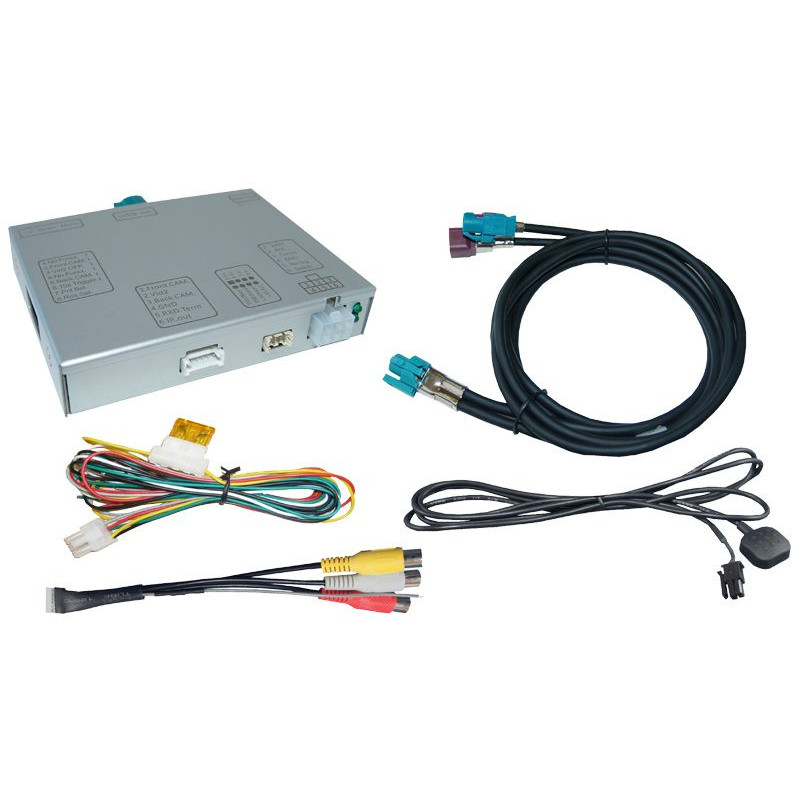

The r.LiNK interface allows you to connect a rear view camera and any two video sources (retrofit device, e.g. DVD player, DVB-T tuner, ...) to your vehicle's factory infotainment system.

Product features

• The interface allows you to connect 2 external video sources to display the image (e.g. DVD player, DVB-T tuner, etc.).
• 1 entryrear view camera videoCVBS
• 2 FBAS video inputs for retrofit devices (e.g. DVD player, DVB-T tuner, ...)

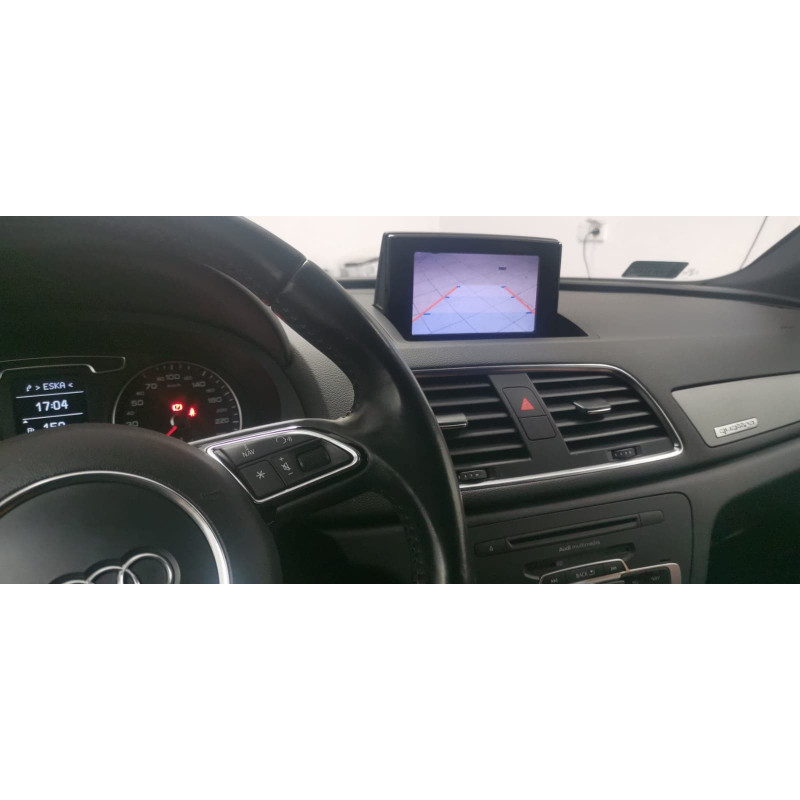

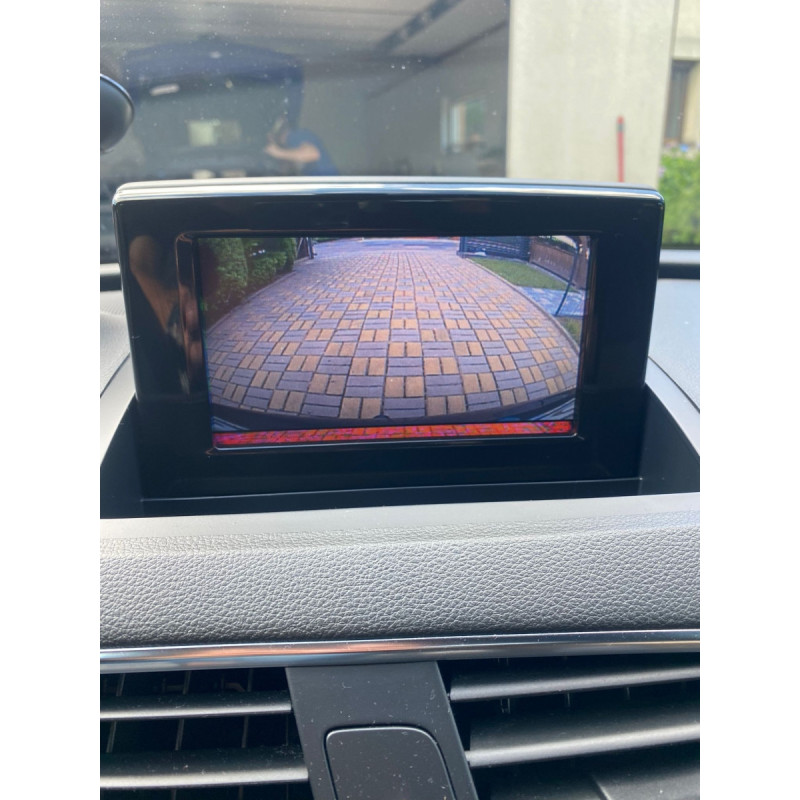

• Automatic switching to rear view camera inputwhen engaging reverse gear

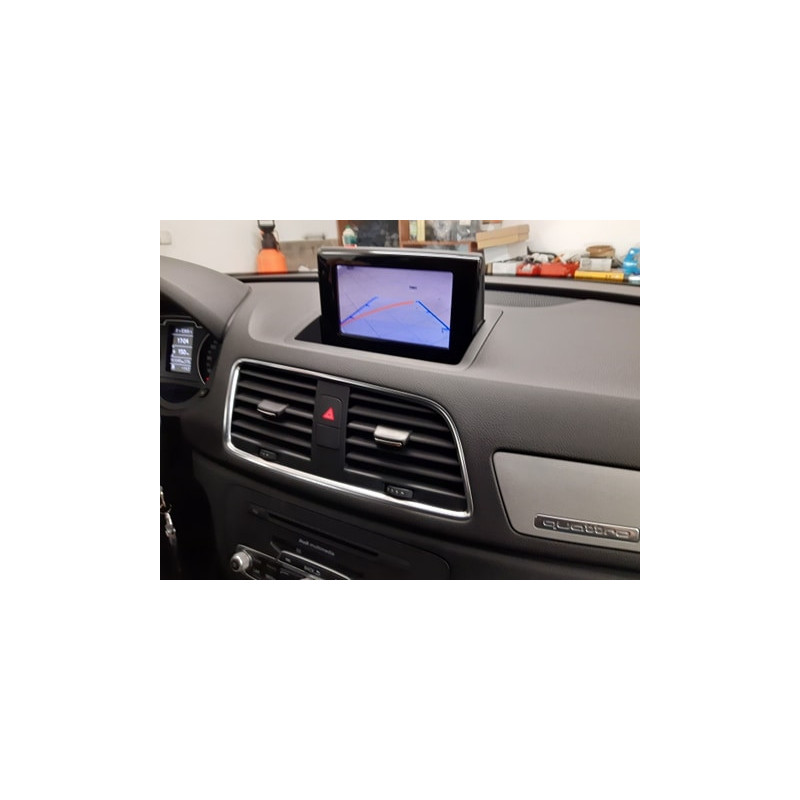

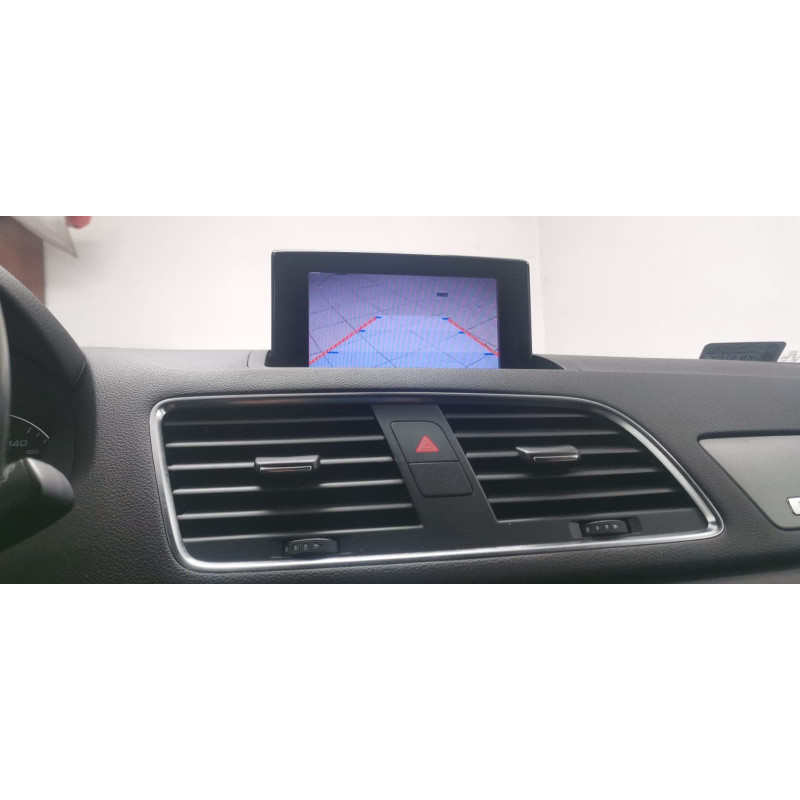

• Distance linesfor the rear view camera can be activated (not for all vehicles)
• Unlocking the image while driving(ONLY for video input)
• Video inputs compatible withPAL and NTSC

Make and model:

• Audi A1 (8X) 05 / 2010-,
• A4 (8K) 05/2009 - 08/2015,
• A5 (8T) 11/2008 - 06/2016,
• A6 (4F) 08/2008 - 03/2011,
• A6 (4G) 04/2011 - 09/2014,
• A7 (4G) 07/2010 - 05/2014,
• A8 (4E) 09/2008 - 03/2010,
• A8 (4H) 03/2010 - 10/2017,
• Q3 (8U) 10/2011 - 07/2018,
• Q3 (8U) 10/2008 - 2017,
• Q5 (4H) 8R) 11/2008 -2017,
• Q7 (4L) 05/2009 - 03/2015

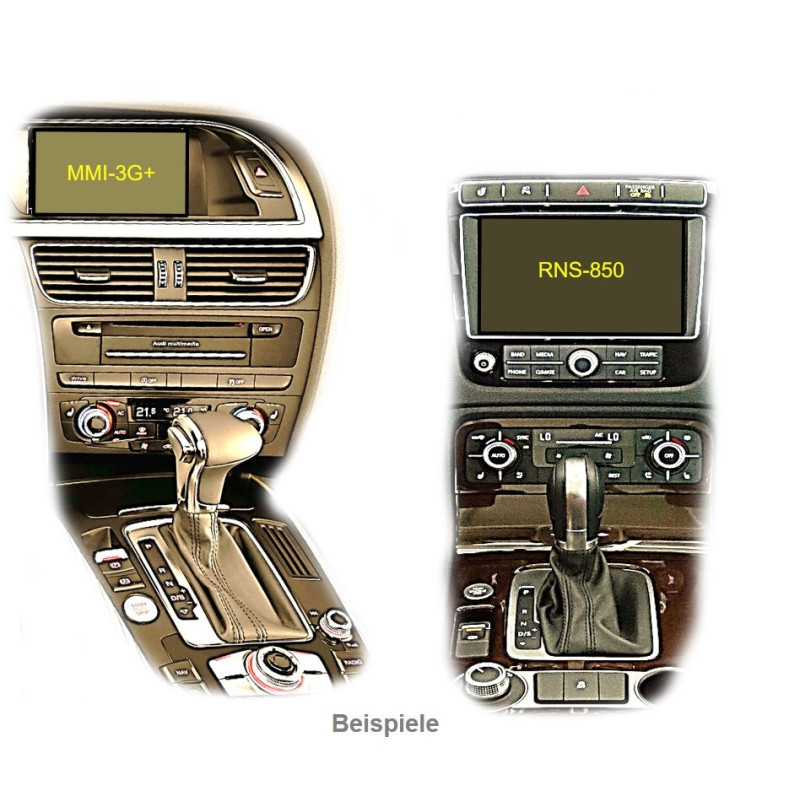

MMI Navigation (Plus) 7" or 8" - MMI3G High and Basic, MMI3G +

• A1 (8X) 05 / 2010-,
• A6 (4F) 08/2008 - 03/2011,
• A6 (4G) 04/2011-05/2018,
• A7 (4G) 07/2010-01/2018,
• Q3 (8U) 10/2011 - 07/2018,
• Q7 (4L) 05/2009 - 03/2015

MMI Radio / MMI Radio Plus / MMI Navigation 6.5" - RMC / RMC_Cnct_Plus / RMC_Cnct_Nav

• VW Touareg from model 2011 RNS850

Limitations Video onlyThe interface ONLY provides video signals to the infotainment system. To provide audio signals, you can use the existing factory AUX audio input, FM modulator, or AUX-110 AUX-IN interface. Factory reversing cameraAutomatic switching to the rearview camera is only possible when reverse is engaged. Delaying downshifts requires additional electronics. OPSThe optical parking distance indicator (OPS) is not available when reverse gear is engaged and the universal rear view camera is installed. Acoustic signals are still available. Connectors

• Image Source 4-pin HSD
• Video inputs: RCA connector
• Rear camera input: RCA connector

Specification

• Power supply 7V - 25V
• Standby <10mA
• Power 0.7A @ 12V
• Video input 0.7V - 1V
• Video input formats PAL / NTSC
• RGB video amplitude 0.7V with 75 Ohm impedance
• Temperature range -40 ° C to + 85 ° C
• Video cassette dimensions
• 113 x 22 x 92 mm (W x H x D)
• CAN box dimensions
• 73 x 22 x 30 mm (W x H x D)
