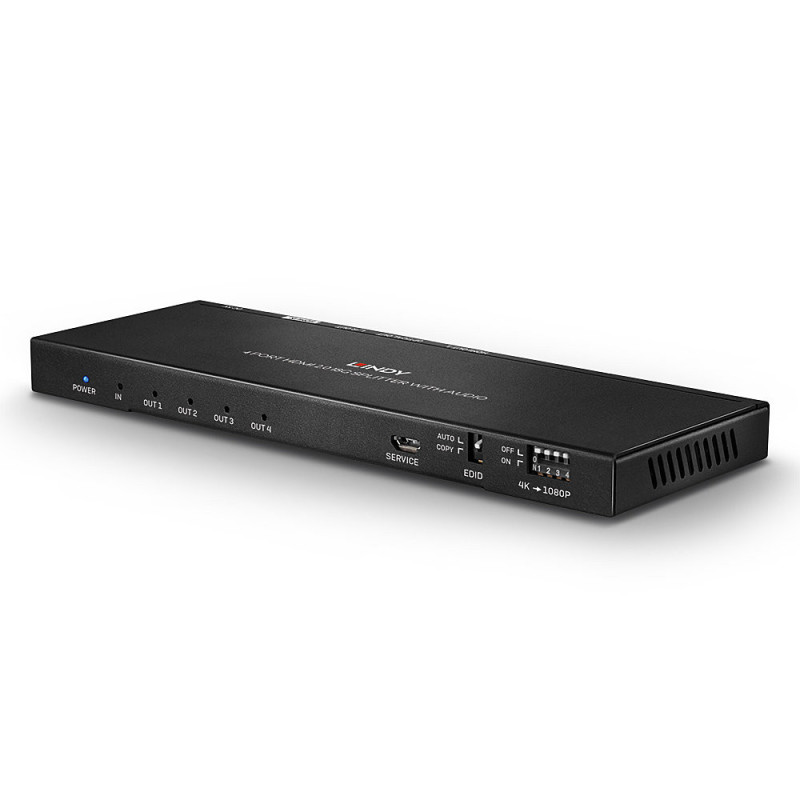

Adapter - 4 Port HDMI 2.0 4096x2160@60Hz Audio Extractor
Product reference:
14-4002888382311
Split HDMI® 2.0 signals to 4 displays, supporting a maximum resolution of 4096x2160@60Hz. This splitter also outputs digital or analog audio via separate audio jacks, including Toslink and 3.5mm.
Adapter - 4 Port HDMI 2.0 4096x2160@60Hz Audio Extractor
Product reference:
14-4002888382311
Split HDMI® 2.0 signals to 4 displays, supporting a maximum resolution of 4096x2160@60Hz. This splitter also outputs digital or analog audio via separate audio jacks, including Toslink and 3.5mm.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
4 Port HDMI 18G Splitter with Audio Extraction and Downscaling
Distributes HDMI® 2.0 signals to 4 displays, supporting a maximum resolution of 4096x2160@60Hz. The splitter also extracts digital or analog audio via separate audio jacks, including Toslink and 3.5mm.
- Supports 4K resolution at 60Hz with 18Gbps bandwidth for high-quality video output.
- Separate audio jacks are included for various audio options: 3.5mm and Toslink (Optical).
- There is a downscaling function and EDID emulation for better compatibility.
- Compact metal housing with lightweight design, perfect for easy installation.
Features | |
|---|---|
| Product Type | AV Splitter |
| Model | 4 Port HDMI 18G Splitter |
Specifications | |
| AV Interface | HDMI® |
| Interface Standard | HDMI® 2.0 |
| Supported Bandwidth | 18Gbps |
| Maximum Resolution | 4096x2160@60Hz 4:4:4 8bit |
| HDCP Support | 2.2 |
| Supported Audio Type |
|
| Separate Audio Jacks |
|
| Special Features | Reduction Function, EDID Emulation |
Connectors | |
| Entrance | HDMI® Type A (Female) |
| Exit | 4 x HDMI® Type A (Female), Toslink (Optical), 3.5mm (Female) |
| Power supply | 5.5/2.1mm |
Physical Properties | |
| Dimensions (approximate) | 180x14.4x63mm (7.09x0.57x2.48in) |
| Housing Material | Metal |
| Net Weight | 0.122kg (0.27lb) |
| Operating Temperature | 0°C - 40°C (32°F - 104°F) |
| Storage Temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 20-90% RH (non-condensing) |
| Reduction Requirements | 5VDC 1A |
| Color | Black |
Safety Warning | |
| Use the product only for its intended purpose. | |
