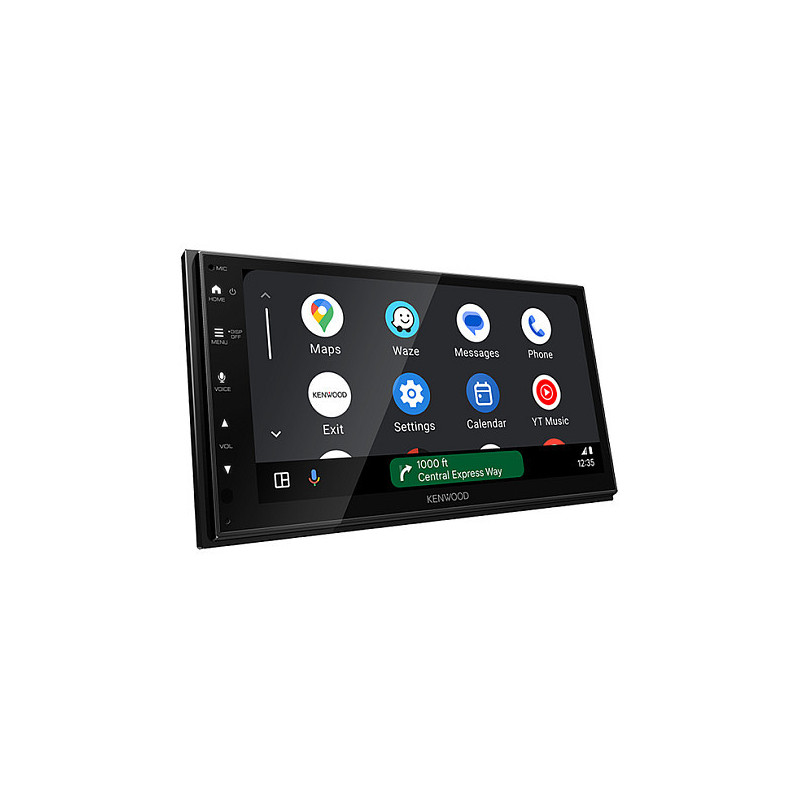

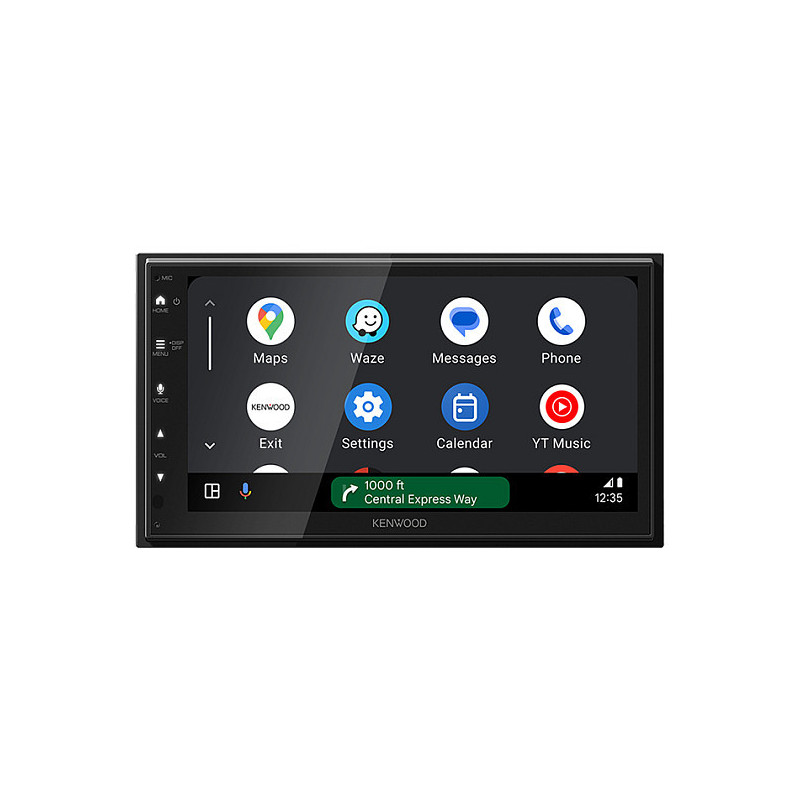

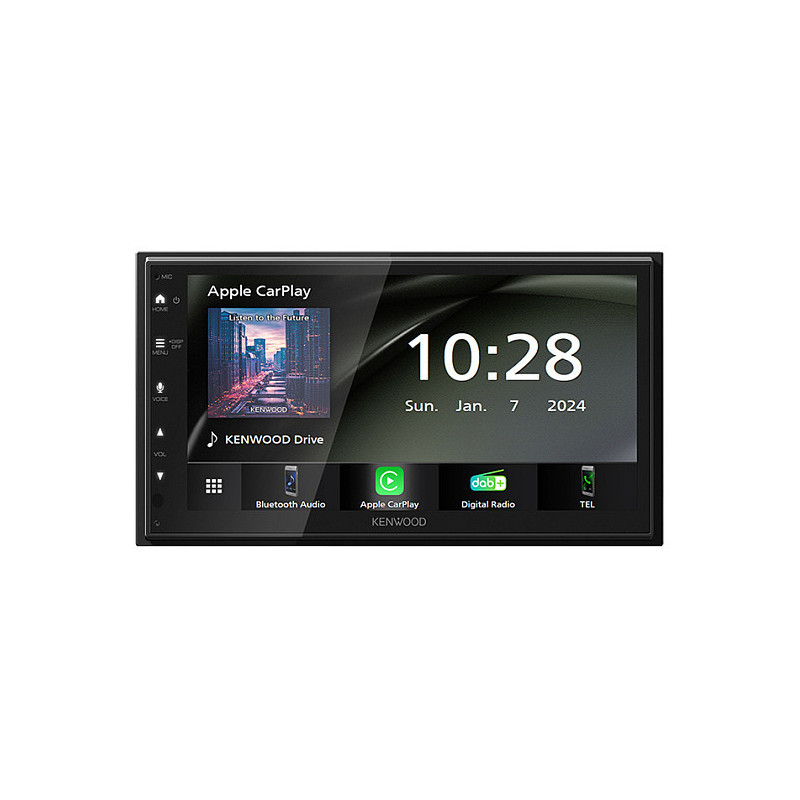

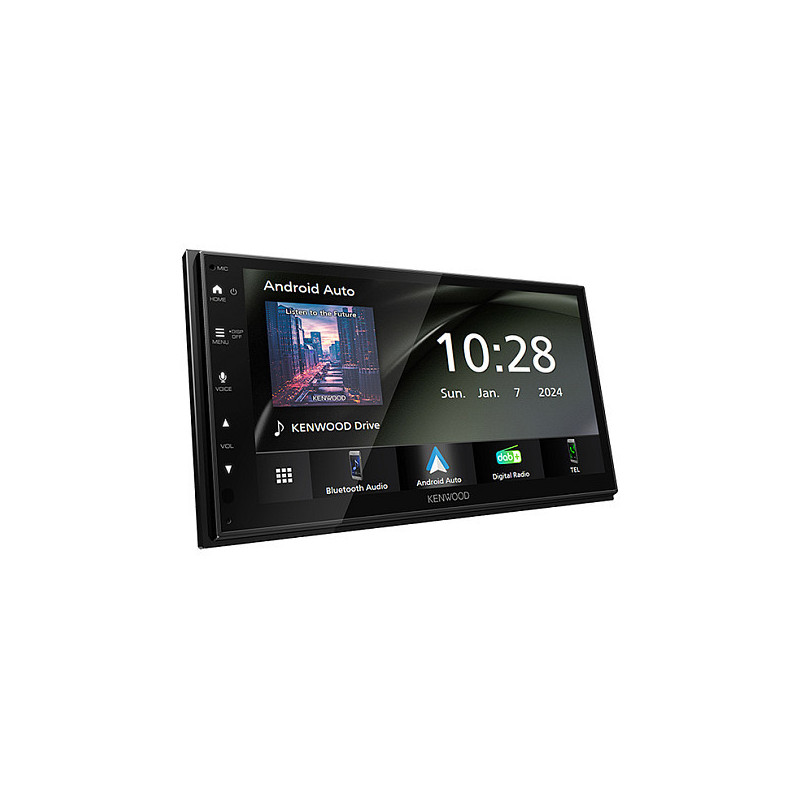

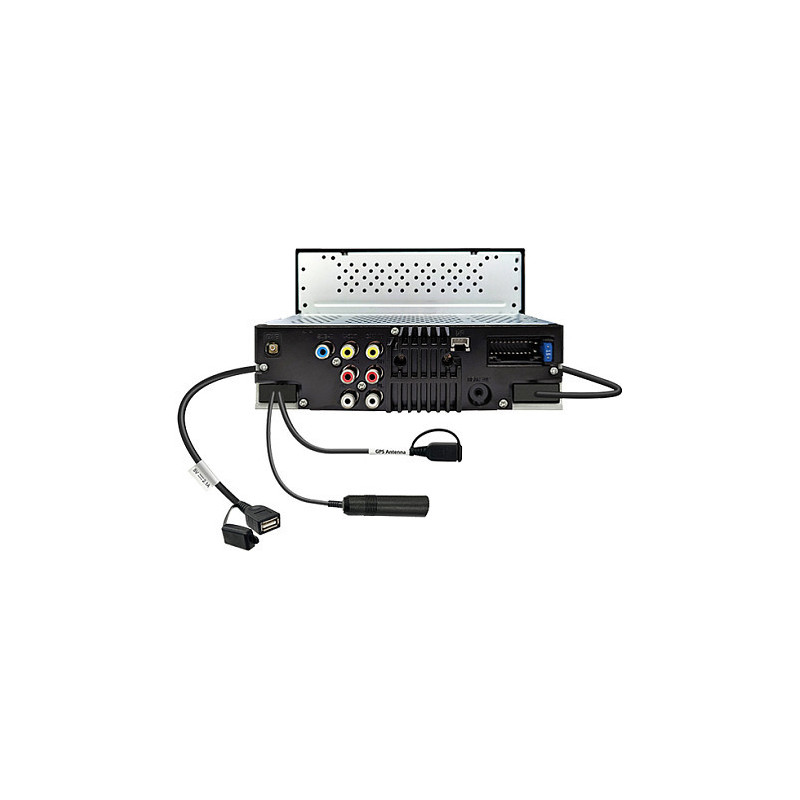

Kenwood DMX6523DABS car media receiver

Kenwood DMX6523DABS. Product colour: Black, DIN size: 2 DIN, Maximum power per channel: 50 W. Audio formats supported: AAC, FLAC, MP3, OGG, WAV, WMA, Video formats supported: H.264, MKV, MPEG, MPEG1, MPEG2, MPEG4, WMV. Display type: LCD, Touchscreen type: Capacitive, Display diagonal: 17.3 cm (6.8"). Wi-Fi standards: 802.11a, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi frequency: 5 GHz, Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Supported radio bands: AM, DAB, DAB+, FM, FM band range: 87.5 - 108 MHz, FM usable sensitivity: 5 dBf

Apple CarPlay - Connect Wirelessly or via USB
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

Android Auto™ - Connect Wirelessly or via USB
Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

Wireless Mirroring for smartphone
By installing the "MirrorApp+" app, your smartphones seamlessly displayed on the receiver's screen without cable. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and Smartphone.

Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.

Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

Playable Video & Audio Files
You can play back from USB devices audio and video files compressed in various formats.

Safe Driving
Rear View Camera Input with Parking Guidelines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

WSVGA LCD Display
The WSVGA display reproduces approximately 1.6 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.

Convenient and Easy-to-Use Capacitive Touch Panel
Provides a high contrast ratio, crystal clear display and vivid text. Easy to use widgets provide access to information screens with a swipe.

Direct OEM Steering Remote Control
The receivers can be installed in most Japanese and Korean vehicles easily.

Short Chassis Design
The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.

High Current 2.1A Charging
Rapidly charge your smartphone using the USB port, with up to a maximum of 2.1A.

*Compatibility depends on the smartphone.

Remote Control (Optional)
This receiver unit can be operated using the optional remote control KCA-RCDV340.

Performance

Product colour: Black
DIN size: 2 DIN
Maximum power per channel: 50 W
Frequency range: 20 - 20000 Hz
Signal-to-Noise Ratio (SNR): 75 dB
Impedance: 100 Ω
Disc types supported: No
Feature: Ready for iPod
Feature: Equalizer
Equalizer bands quantity: 13
Feature: Time alignment

Multimedia

Feature: USB direct playback
Feature: MP3 playback
Audio formats supported: AAC, FLAC, MP3, OGG, WAV, WMA
Video formats supported: H.264, MKV, MPEG, MPEG1, MPEG2, MPEG4, WMV

Display

Feature: Built-in display
Display type: LCD
Feature: Touchscreen
Touchscreen type: Capacitive
Display diagonal: 17.3 cm (6.8")
Display resolution: 1024 x 600 pixels

Ports & interfaces

Feature: Wi-Fi
Wi-Fi standards: 802.11a, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi frequency: 5 GHz
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Signal strength: 17.78 dBm
Bluetooth version: 5.0
Bluetooth profiles: A2DP, AVRCP, HFP, PBAP, SPP
Bluetooth range: 10 m
Feature: USB port
USB ports quantity: 1
USB version: 2.0
USB connector type: USB Type-A
USB port position: Rear
Feature: Bluetooth
Feature: Apple CarPlay support
Feature: Android Auto support

Radio

Supported radio bands: AM, DAB, DAB+, FM
FM band range: 87.5 - 108 MHz
FM usable sensitivity: 5 dBf
AM sensitivity (LW): 99 μV
Feature: Auto digital tuning
DAB tuner: DAB+

Call management

Feature: Hands-free calling

Weight & dimensions

Width: 181.7 mm
Depth: 85.7 mm
Height: 112 mm
Weight: 1.28 kg
