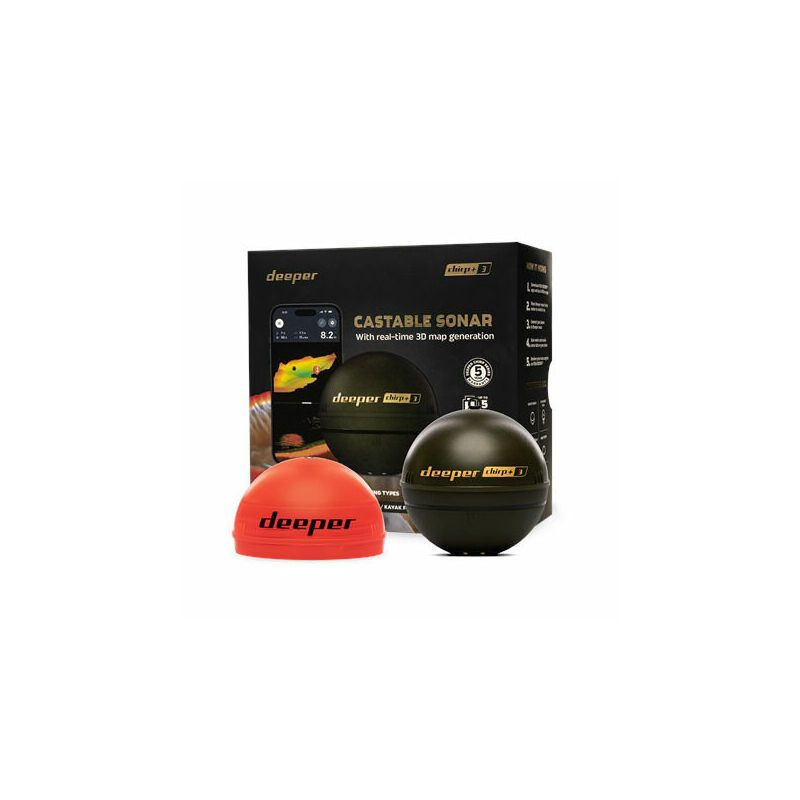

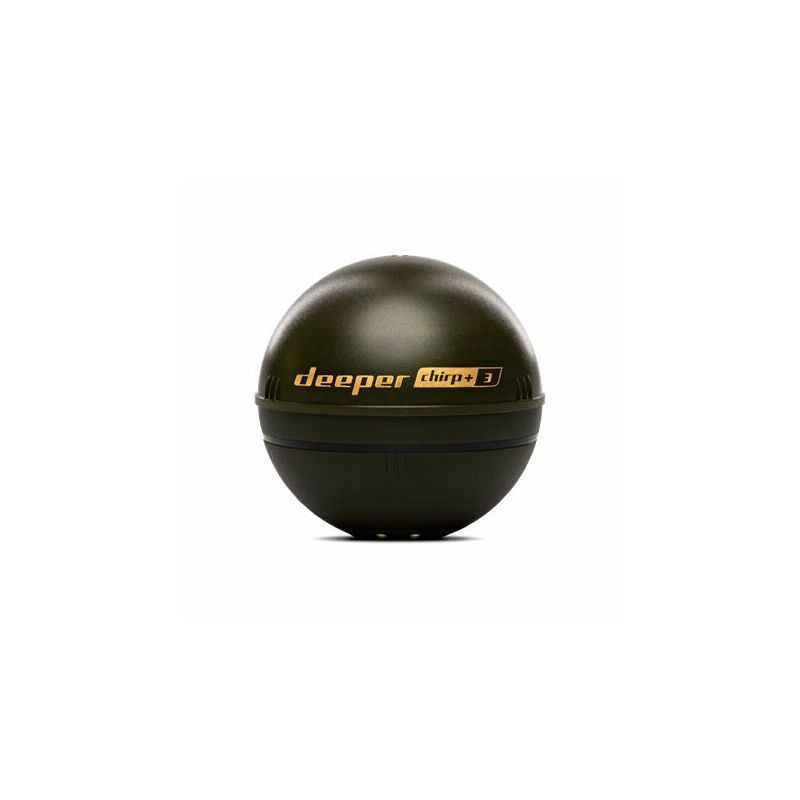

Deeper Smart Sonar Chirp+3 , Sonar , Wi-Fi , Brown Green

EAN: 4779032950992

Smart Sonar CHIRP+3 is a castable portable fish finder designed for shore and from-boat use. The device uses CHIRP frequencies (100 / 240 / 675 kHz) and three cone angles (47° / 20° / 7°) to detect fish and structure from 0.15 m down to 100 m. The housing is made of ABS, is waterproof, and the unit operates in temperatures from −20 °C to 40 °C. Built-in Wi‑Fi provides a wireless connection up to 120 m and integrated multi-GNSS (GPS, GLONASS, Galileo, BeiDou, QZSS) enables mapping and positioning. The rechargeable 1300 mAh Li‑Ion battery supports fast charging (5 V, 1.5 A). The package includes a USB cable, pouch, bolts, night cover and a quick start guide.

Advantages
The deeper Smart Sonar CHIRP+3 combines three CHIRP frequency bands and interchangeable cone angles to deliver detailed returns at different depths and resolutions. Its waterproof ABS construction and wide operating temperature range ensure reliable performance in various weather conditions. Integrated Wi‑Fi and multi‑GNSS support mapping and accurate positioning without additional accessories. The built-in Li‑Ion battery with fast-charge capability offers convenient recharging and extended use between charges.

Suitable for
Shore fishing where castable wireless sonar is required
Small boat or kayak fishing for mapping and fish detection
Ice-free winter and summer fishing within the operating temperature range
Users who need portable, app-based mapping and position data
Key specifications
Detection depth: 0.15 m to 100 m
Frequencies: 100 kHz, 240 kHz, 675 kHz (CHIRP)
Cone angles: 47°, 20°, 7°
Material: ABS housing; color: black
Waterproof design; operating temperature: −20 °C to 40 °C
Wireless: built-in Wi‑Fi with up to 120 m range
GNSS: GPS, GLONASS, Galileo, BeiDou, QZSS
Battery: 1300 mAh Lithium‑Ion, 3.7 V
Charging: fast charge supported at 5 V, 1.5 A
How to use
Charge the unit using the included USB cable until the battery is full, then install the deeper app on a compatible smartphone or tablet. Activate the device and enable Wi‑Fi on your mobile device to connect to the sonar. Cast the sonar into the water and monitor live sonar returns and maps in the app; select the appropriate frequency and cone angle in the app settings to match depth and target detail. Use the GNSS features to save waypoints and map bathymetry while moving along the shore or from a boat.
