Electric Vehicle Charger - BESEN SQ20-7KW-APP 7.2 kW
Product reference: 14-5907085525341

Wall-mounted AC electric vehicle charging station delivering up to 7.2 kW of power at 32 A from a 230 V single-phase electrical system. It features a 3.5-inch color LCD display, control via the EVSEMaster app via Bluetooth, IP66 protection, and compatibility with SAE J1772, IEC 62196-2, and GB/T standards.

Electric Vehicle Charger - BESEN SQ20-7KW-APP 7.2 kW

Product reference: 14-5907085525341

Wall-mounted AC electric vehicle charging station delivering up to 7.2 kW of power at 32 A from a 230 V single-phase electrical system. It features a 3.5-inch color LCD display, control via the EVSEMaster app via Bluetooth, IP66 protection, and compatibility with SAE J1772, IEC 62196-2, and GB/T standards.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
299,21 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
8 - 9
business days

Your message has been successfully sent!
Fill in the required fields*

BESEN SQ20-7KW-APP 7.2 kW

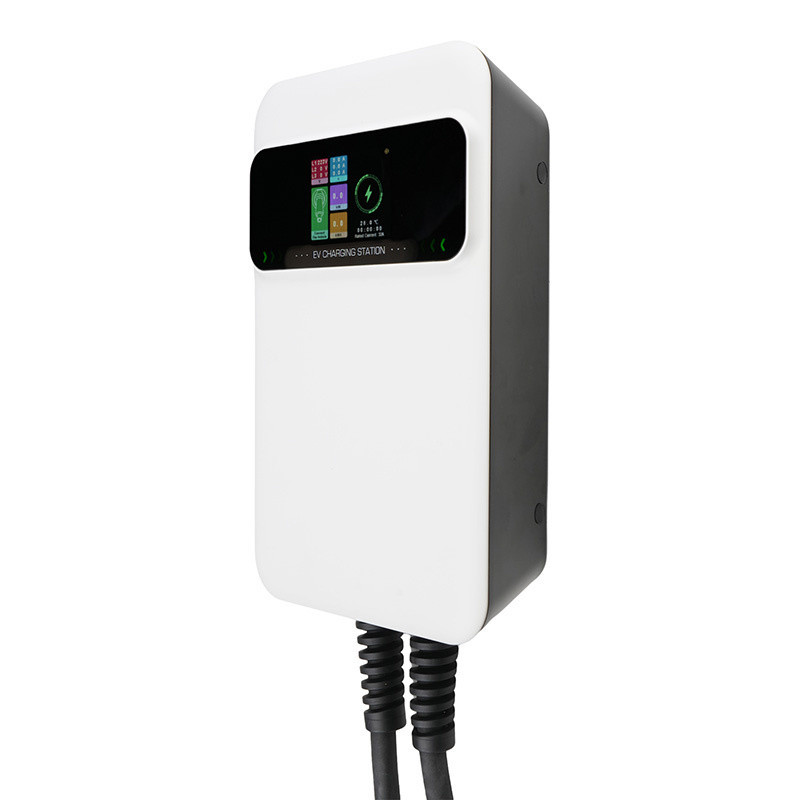

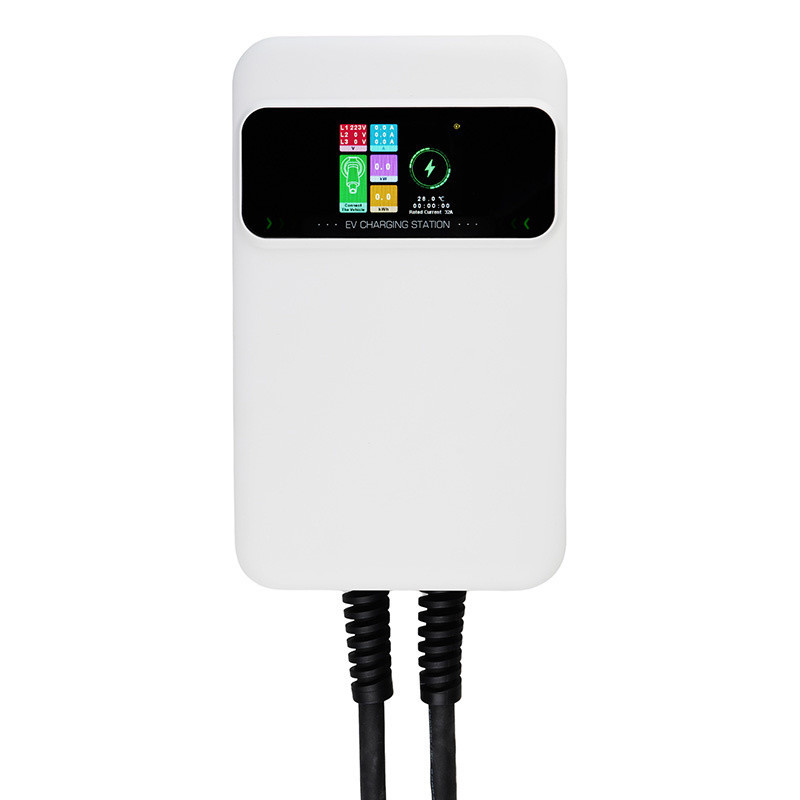

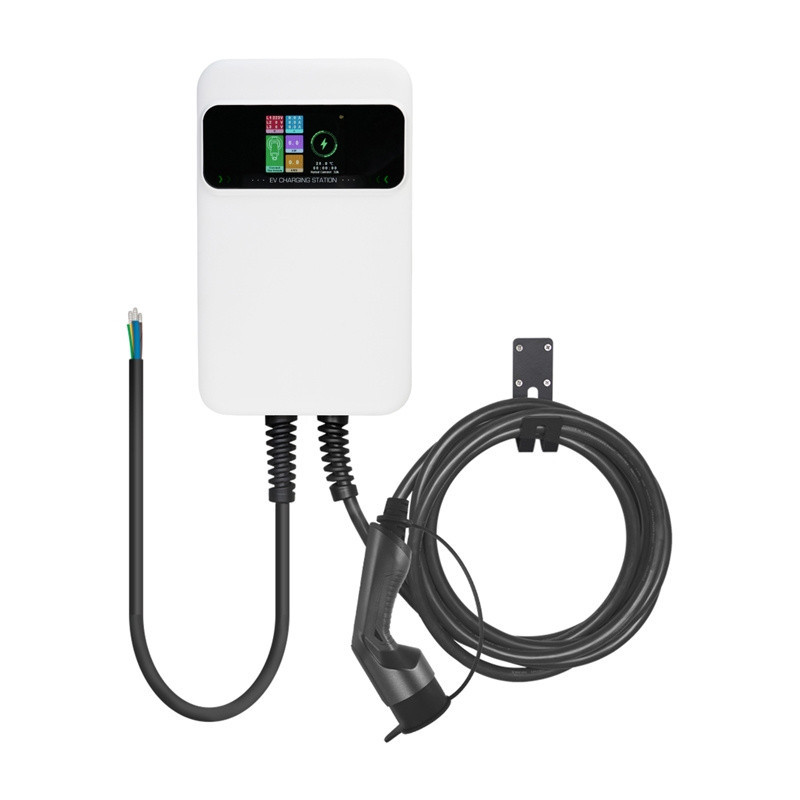

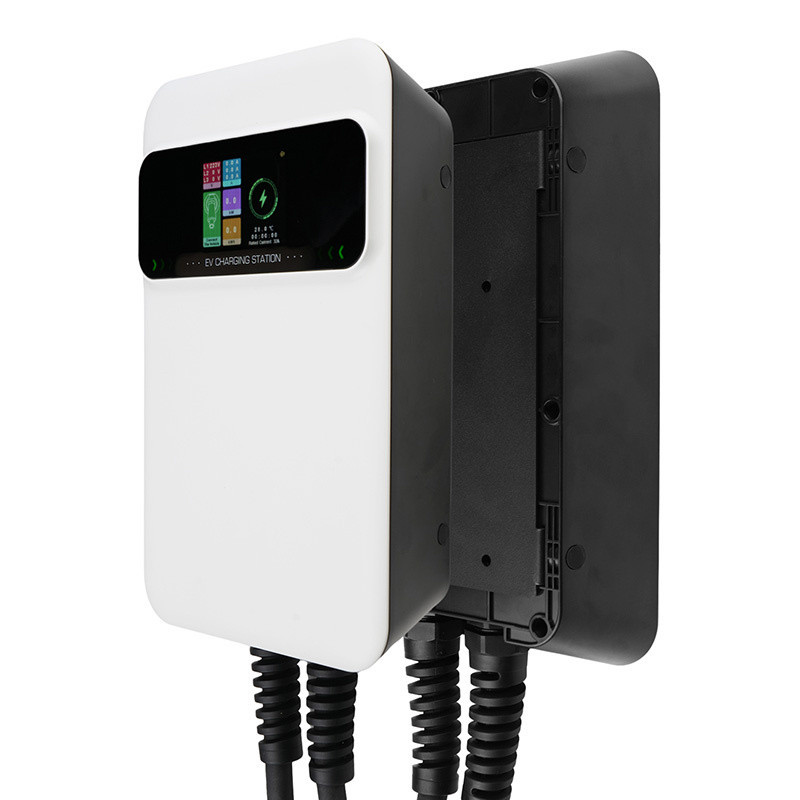

Wall-mounted AC electric vehicle charging station, delivering up to 7.2 kW of power at 32 A from a 230 V single-phase mains. Equipped with a 3.5-inch color LCD display, control via the "EVSEMaster" app using Bluetooth, IP66 protection and support for SAE J1772, IEC 62196-2 and GB/T standards.


  • 7.2 kW wall-mounted AC electric vehicle charging station, suitable for home or professional use
  • "EVSEMaster" app control via Bluetooth: charging scheduling, current regulation, remote start and stop, charging history and software updates
  • 3.5-inch color LCD screen displays charging time, voltage, current, temperature and power consumption in real time
  • IP66 rated housing with comprehensive protection against overvoltage, overheating, overload, short circuit, ground fault and lightning

Product information

Product type Wall-mounted AC electric vehicle charging station
Brand Besen
Model SQ20-7KW-APP
Purpose For charging compatible electric vehicles in residential or professional installation locations

Technical specifications

Power supply AC 230 V, single phase
Frequency 47-63 Hz
Maximum charging current 32 A
Supported charging ports SAE J1772, IEC 62196-2 and GB/T
Operating temperature −25°C-+55°C
Operating humidity 0-95%, non-condensing
Maximum installation height Less than 2,000 m
Standby power consumption Less than 8W

Management and installation

App EVSEMaster via Bluetooth
App features Charge scheduling and current regulation, remote start and stop, charge history and software updates
Installation Wall mounted
Screen 3.5 inch color LCD

Physical properties

295 × 195 × 65mm
Weight 6 kg

Included accessories

The set includes:
  • Electric vehicle charging station
  • User manual
  • Quick start guide
  • Installation location template
  • Mounting screws
  • Metal cable holder

Safety warning

Warning Only for charging compatible electric vehicles. Installation and electrical connection must be carried out by a qualified professional in accordance with local regulations. Disconnect the power supply before installation or maintenance. Do not use the charging station if the housing, cable or connector is damaged. Although the housing is IP66 rated, the electrical connections must be properly protected; the charging station must not be immersed in water. Keep the equipment out of the reach of children and follow the instructions in the vehicle and charging station manuals.

Height250mm
Length400mm
Weight7800 grams
Width150mm
