Equip 245521 mobile device charger

Equip 1-Port 20W GaN Slim USB-C PD Charger. Charger type: Indoor, Power source type: AC, Charger compatibility: Universal. Input voltage: 100 - 240 V, Maximum output voltage: 12 V. USB Type-C ports quantity: 1, Fast charging, Power protection features: Over current, Over voltage, Overload, Short circuit. Product colour: White

The Equip 245521 1-Port 20W GaN Slim USB-C PD Charger is a compact and efficient charging solution designed to meet the power needs of today's mobile lifestyle. Built with advanced GaN (Gallium Nitride) technology, this charger delivers higher efficiency and reduced heat generation compared to traditional silicon chargers, enabling a slimmer and more portable design without compromising on performance.

With a USB-C Power Delivery (PD) output of up to 20W, it provides fast and reliable charging for a wide range of devices, including smartphones, tablets, wireless earbuds, power banks, and other USB-C enabled gadgets. The intelligent PD protocol automatically detects the connected device and supplies the optimal power level, ensuring safe and efficient charging while protecting your devices from overcurrent, overvoltage, and short circuits.

Performance

Charger compatibility: Universal
Power source type: AC
USB Type-C ports quantity: 1
Feature: Fast charging
Fast charging technology: Power Delivery 3.0, Quick Charge 3.0
Charger type: Indoor
Number of simultaneously connected devices (max): 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 20 W
Power protection features: Over current, Over voltage, Overload, Short circuit

Design

Product colour: White
Feature: Plug and Play
Feature: Gallium nitride (GaN) transistors

Power

Input voltage: 100 - 240 V
Input frequency: 50/60 Hz
Maximum power: 20 W
Maximum output voltage: 12 V
Minimum output voltage: 5 V
Port 1 output power: 20 W
Output current (5V): 3 A
Output current (9V): 2.22 A
Output current (12V): 1.67 A

Weight & dimensions

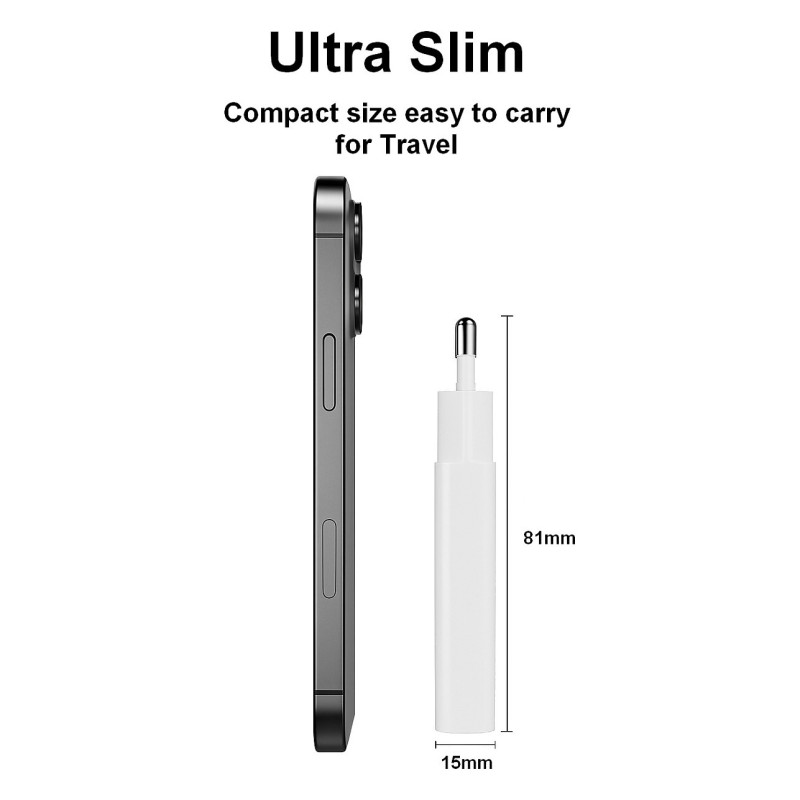

Width: 15 mm
Depth: 36 mm
Height: 81 mm
Weight: 48 g

Packaging data

Package width: 20 mm
Package depth: 78 mm
Package height: 115 mm
Package weight: 58 g

Packaging content

Quantity per pack: 1 pc(s)

Certificates

Compliance certificates: CE, RoHS

Logistics data

Customs product code (TARIC): 8504409090
Master (outer) case width: 410 mm
Master (outer) case length: 250 mm
Master (outer) case height: 235 mm
Master (outer) case gross weight: 6.28 kg
Products per master (outer) case: 100 pc(s)
Country of origin: China
