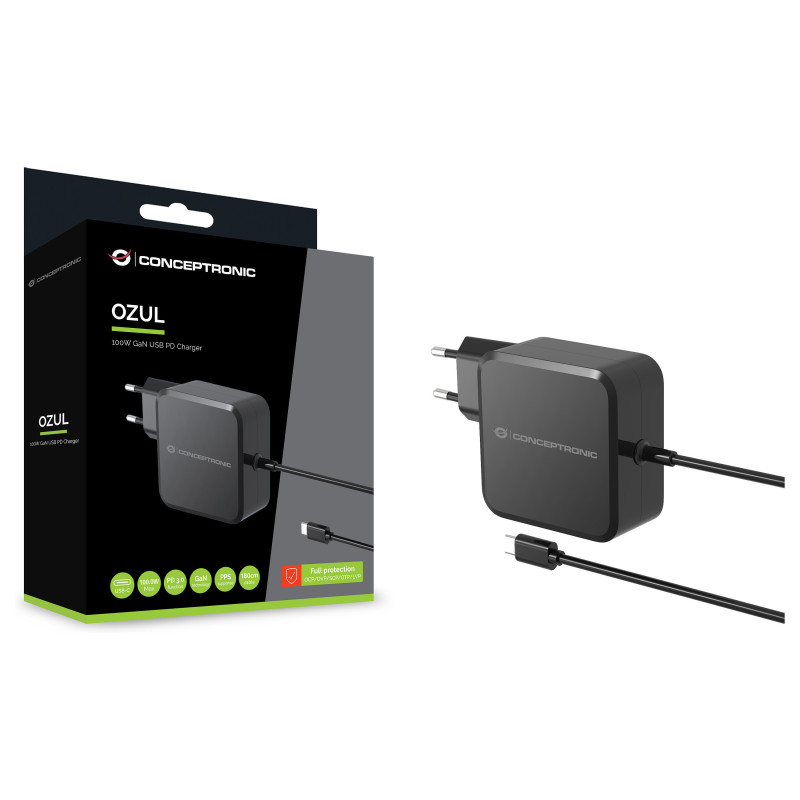

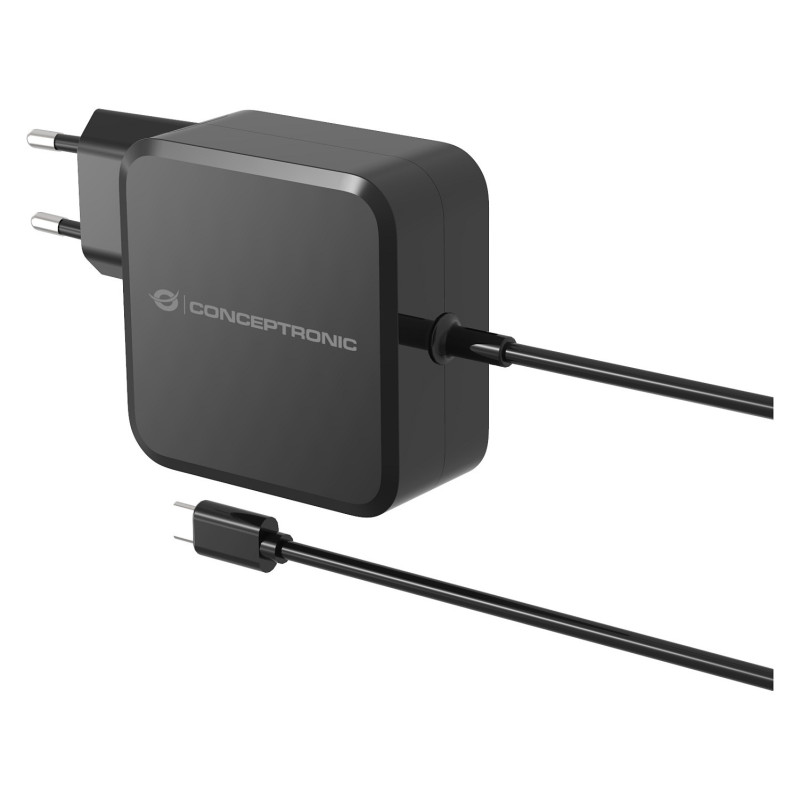

Conceptronic OZUL05BE mobile device charger

Conceptronic OZUL05BE. Charger type: Indoor, Power source type: AC, Charger compatibility: Universal. Input voltage: 100 - 240 V, Maximum output voltage: 20 V. Power protection features: Overheating, Overload, Short circuit. Cable length: 1.8 m, Product colour: Black

This charger leverages advanced Gallium Nitride (GaN) technology to deliver up to 100W of total power, ensuring rapid and efficient charging for a wide range of devices. It supports various output options from 5.0V to 20.0V across its ports, making it compatible with everything from smartphones to laptops. The charger is equipped with enhanced safety features, including protections against overload, short circuiting, and overheating, to safeguard both the charger and your devices. It incorporates USB Power Delivery (PD) 3.0 for fast charging and Programmable Power Supply (PPS) compliance to optimize efficiency and reduce heat. For added convenience, the charger includes a built-in 1.8m USB-C cable, providing both ease of use and versatility.

Performance

Charger compatibility: Universal
Power source type: AC
Charger type: Indoor
Number of simultaneously connected devices (max): 1
Feature: Programmable power supply (PPS)
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W
Power protection features: Overheating, Overload, Short circuit

Design

Product colour: Black

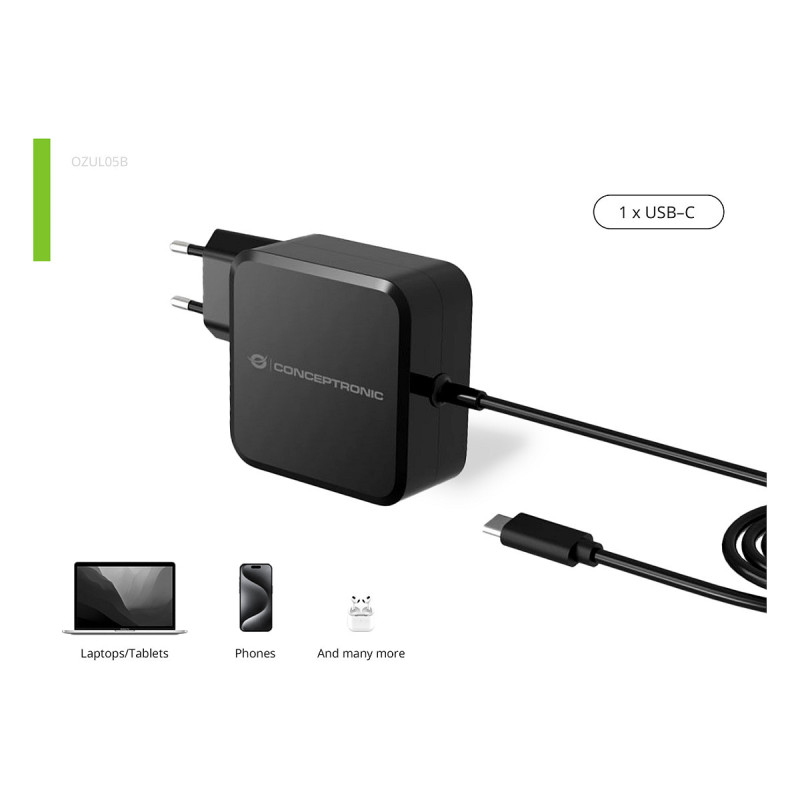

Cable length: 1.8 m
Feature: Plug and Play

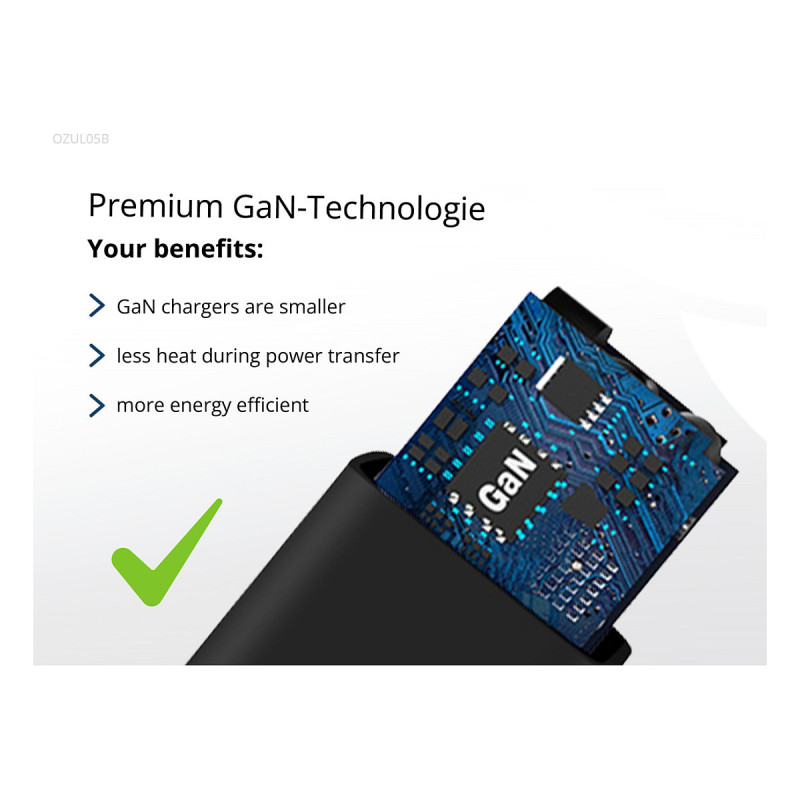

Feature: Gallium nitride (GaN) transistors

Power

Input voltage: 100 - 240 V
Input frequency: 50/60 Hz
Input current: 1.8 A
Maximum output voltage: 20 V
Minimum output voltage: 5 V
Output current (5V): 3 A
Output current (9V): 3 A
Output current (12V): 3 A
Output current (15V): 3 A
Output current (20V): 5 A

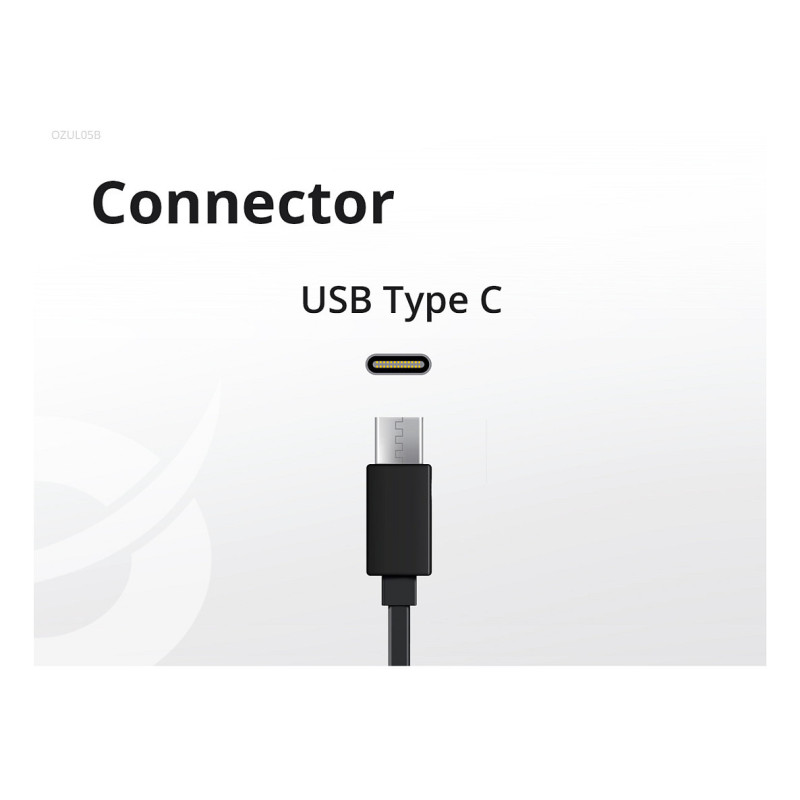

Power plug type: Type C

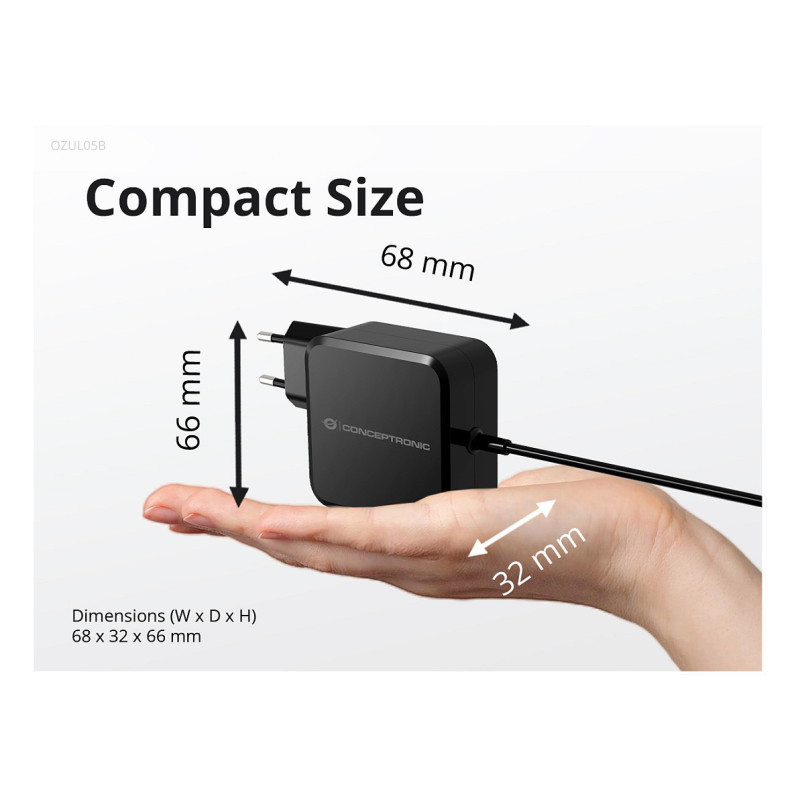

Weight & dimensions

Width: 68 mm
Depth: 32 mm
Height: 66 mm
Weight: 265 g

Packaging data

Package width: 153 mm
Package depth: 136 mm
Package height: 36 mm
Package weight: 36 g
Package type: Box

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 80 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Packaging content

Quantity per pack: 1 pc(s)
Feature: AC adapter included

Certificates

Compliance certificates: CE, RoHS

Sustainability

Feature: Sustainability compliance

Logistics data

Pallet net height: 135.2 cm
Pallet net length: 80 cm
Pallet net width: 120 cm
Harmonized System (HS) code: 8504408390
Pallet gross width: 120 cm
Pallet gross length: 80 cm
Pallet gross height: 135.2 cm
Master (outer) case width: 325 mm
Master (outer) case length: 405 mm
Master (outer) case height: 288 mm
Master (outer) case gross weight: 13.2 kg
Products per master (outer) case: 40 pc(s)
Country of origin: China

Other features

Gross weight of outer carton: 13.2 kg
Outer carton dimensions (W x D x H): 325 x 405 x 288 mm
