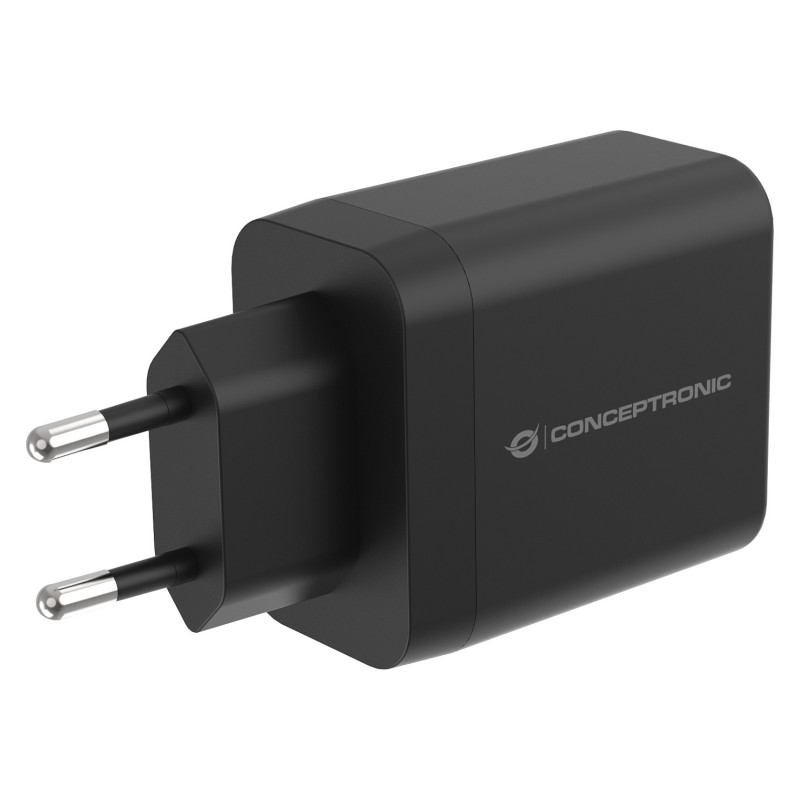

Conceptronic ALTHEA20B45 mobile device charger

Conceptronic ALTHEA20B45 2-Port 45W GaN USB PD Charger, USB-C x 1, USB-A x 1, QC 3.0, PPS, PD 3.0. Charger type: Indoor, Power source type: AC, Charger compatibility: Universal. Input voltage: 100 - 240 V, Maximum output voltage: 20 V. USB Type-C ports quantity: 1, Fast charging, Power protection features: Overload, Overheating, Short circuit. Product colour: Black

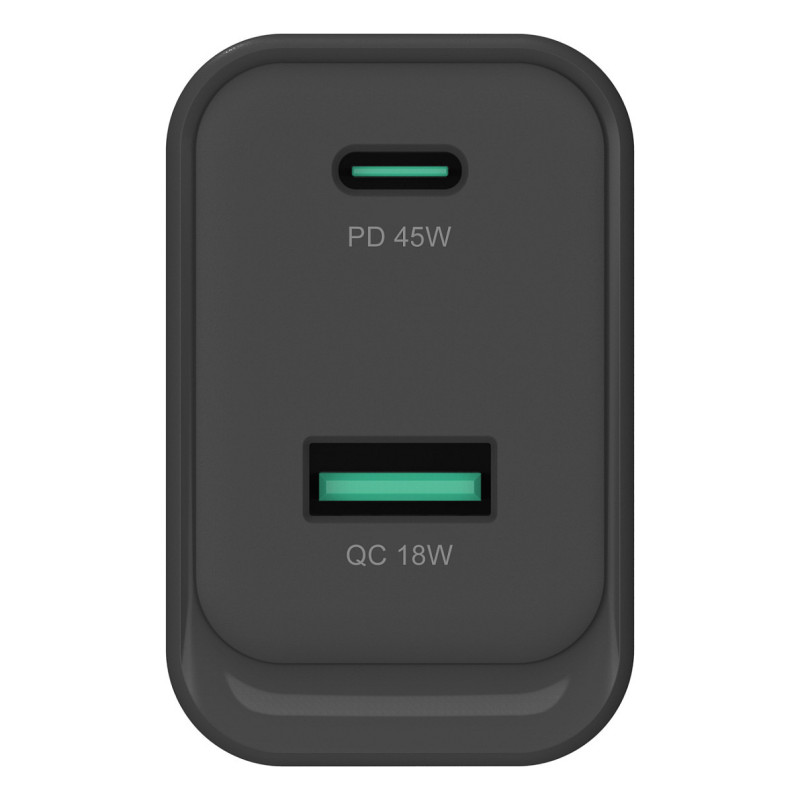

This charger leverages advanced Gallium Nitride (GaN) technology to provide up to 45W of total power, delivering faster and more efficient charging. It features a versatile port selection with 1 USB-C port supporting USB Power Delivery (PD) 3.0 and 1 USB-A port with Quick Charge (QC) 3.0, allowing for simultaneous charging of multiple devices with different power needs. The charger supports a wide range of output options from 5.0V to 20.0V, ensuring compatibility with a variety of devices, including smartphones and laptops. Enhanced safety is ensured with built-in protections against overload, short circuiting, and overheating. Additionally, it incorporates USB Power Delivery (PD) 3.0 and Quick Charge (QC) 3.0 technologies for rapid charging, along with Programmable Power Supply (PPS) compliance to maximize efficiency and minimize heat generation.

Performance

Charger compatibility: Universal
Power source type: AC
USB Type-C ports quantity: 1
USB Type-A ports quantity: 1
Feature: Fast charging
Fast charging technology: Power Delivery 3.0, Programmable Power Supply (PPS), Quick Charge 3.0
Charger type: Indoor
Number of simultaneously connected devices (max): 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
Power protection features: Overload, Overheating, Short circuit

Design

Product colour: Black
Feature: Gallium nitride (GaN) transistors

Power

Input voltage: 100 - 240 V
Input frequency: 50 - 60 Hz
Input current: 1.2 A
Maximum power: 45 W
Maximum output voltage: 20 V
Minimum output voltage: 5 V
Output current (5V): 3 A
Output current (9V): 3 A
Output current (12V): 3 A
Output current (15V): 3 A
Output current (20V): 2.25 A

Weight & dimensions

Width: 57 mm
Depth: 51 mm
Height: 32 mm
Weight: 86.5 g

Packaging data

Package width: 127 mm
Package depth: 84 mm
Package height: 35 mm
Package weight: 134.5 g

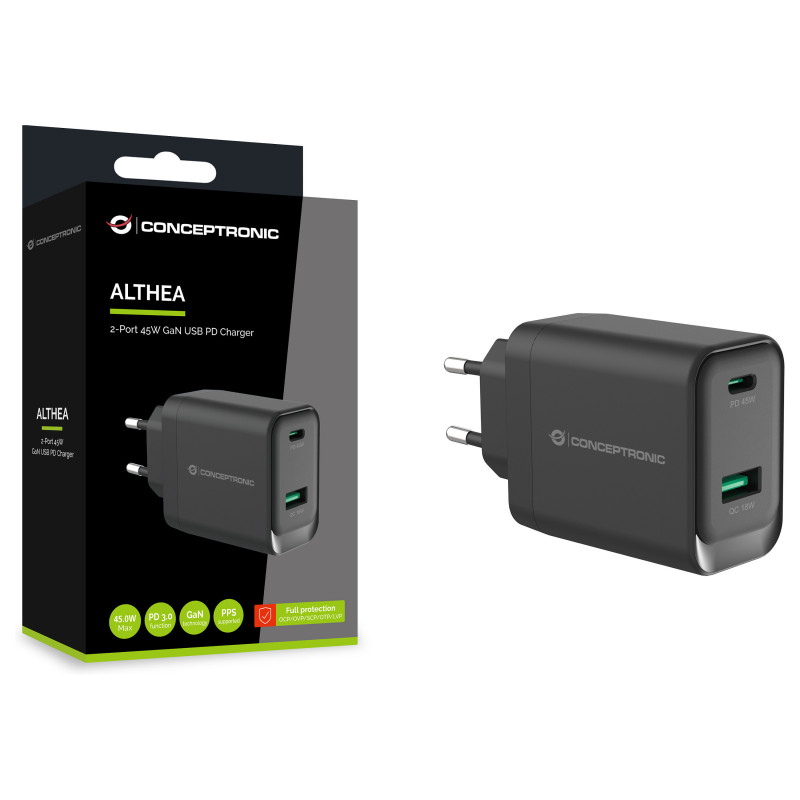

Package type: Box

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 80 °C
Storage relative humidity (H-H): 10 - 90%

Packaging content

Quantity per pack: 1 pc(s)
Feature: Manual

Certificates

Compliance certificates: CE, RoHS

Sustainability

Sustainability certificates: ErP

Technical details

Master (outer) cases per pallet: 32 pc(s)

Logistics data

Customs product code (TARIC): 8504408390
Pallet gross width: 120 cm
Pallet gross length: 80 cm
Pallet gross height: 159.2 cm
Master (outer) case width: 385 mm
Master (outer) case length: 272 mm
Master (outer) case height: 360 mm
Master (outer) case gross weight: 11.5 kg
Products per master (outer) case: 80 pc(s)
Country of origin: China
