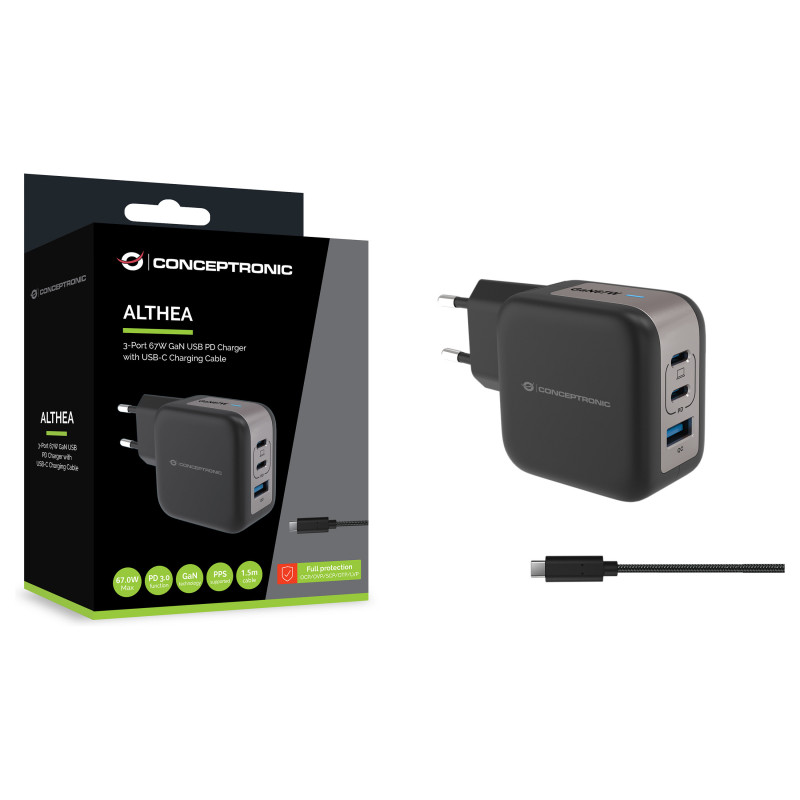

Conceptronic ALTHEA17B mobile device charger

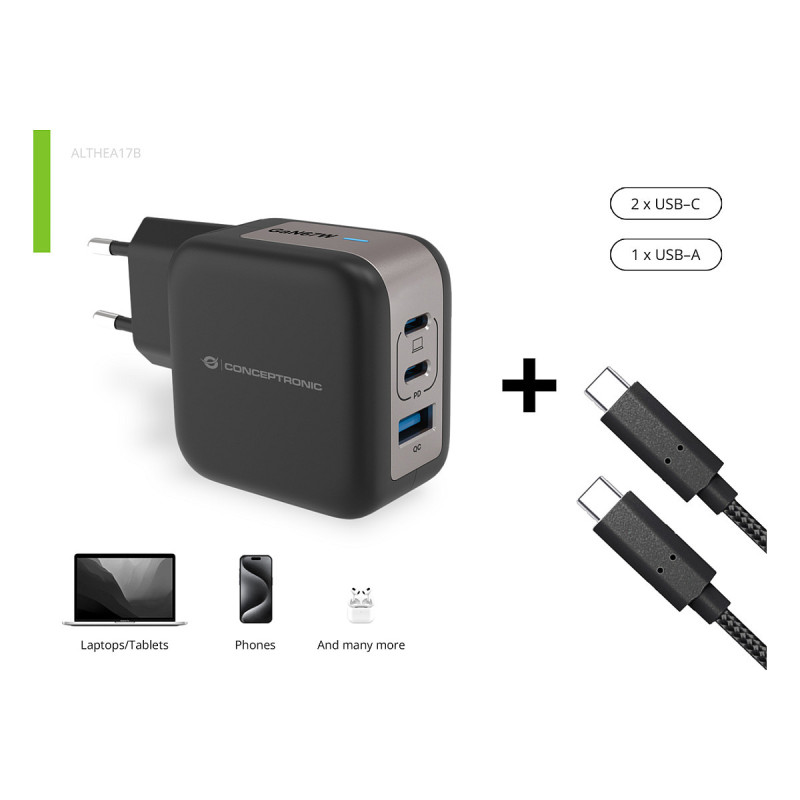

Conceptronic 3-Port 67W GaN USB PD Charger with USB-C Charging Cable, USB-C x 2, USB-A x 1, QC 3.0, PPS. Charger type: Indoor, Power source type: AC, Charger compatibility: Universal. Input voltage: 100 - 240 V, Maximum output voltage: 20 V. USB Type-C ports quantity: 2, Fast charging, Power protection features: Overheating, Overload, Short circuit. Cable length: 1.5 m, Product colour: Black

This charger leverages advanced Gallium Nitride (GaN) technology to deliver up to 67W of total power, ensuring faster and more efficient charging for your devices. It features a versatile port selection with 3 ports: 2 USB-C ports equipped with Power Delivery (PD) 3.0 and 1 USB-A port with Quick Charge (QC) 3.0. This setup allows for simultaneous charging of multiple devices with varying power requirements. The charger supports a broad range of output options from 3.3V to 20.0V, making it compatible with a wide array of devices, from smartphones to laptops. Enhanced safety is provided through built-in protections against overload, short-circuiting, and overheating, safeguarding both the charger and connected devices. Additionally, it incorporates USB Power Delivery (PD) 3.0 and Quick Charge (QC) 3.0 technologies for rapid charging, along with Programmable Power Supply (PPS) compliance to optimize charging efficiency and reduce heat generation. For added convenience, the charger comes with a 1.5m 3.0A USB-C to USB-C cable.

Performance

Charger compatibility: Universal
Power source type: AC

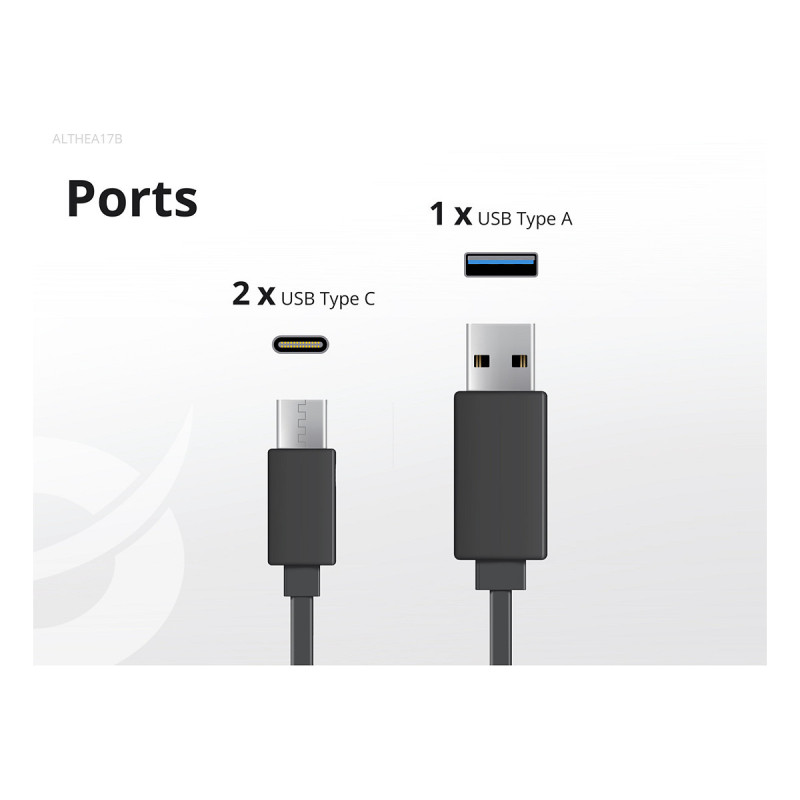

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB Type-C ports quantity: 2
Feature: Fast charging
Fast charging technology: Power Delivery 3.0, Quick Charge 3.0
Charger type: Indoor

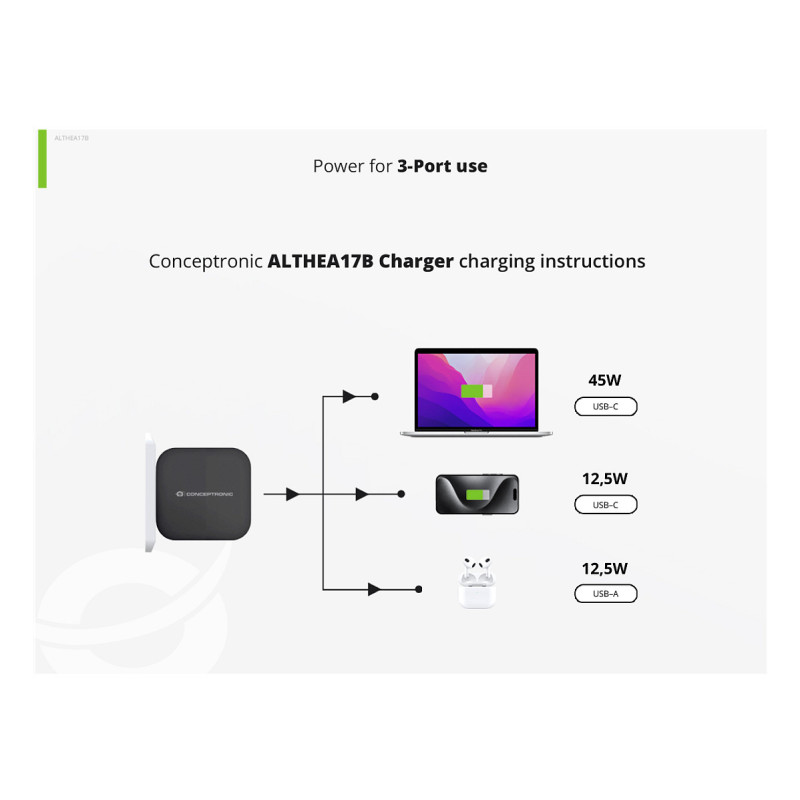

Number of simultaneously connected devices (max): 3
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
Power protection features: Overheating, Overload, Short circuit

Design

Product colour: Black
Cable length: 1.5 m
Feature: Gallium nitride (GaN) transistors

Power

Input voltage: 100 - 240 V
Input frequency: 50 - 60 Hz
Input current: 1.5 A
Maximum power: 67 W
Maximum output voltage: 20 V
Minimum output voltage: 3.3 V

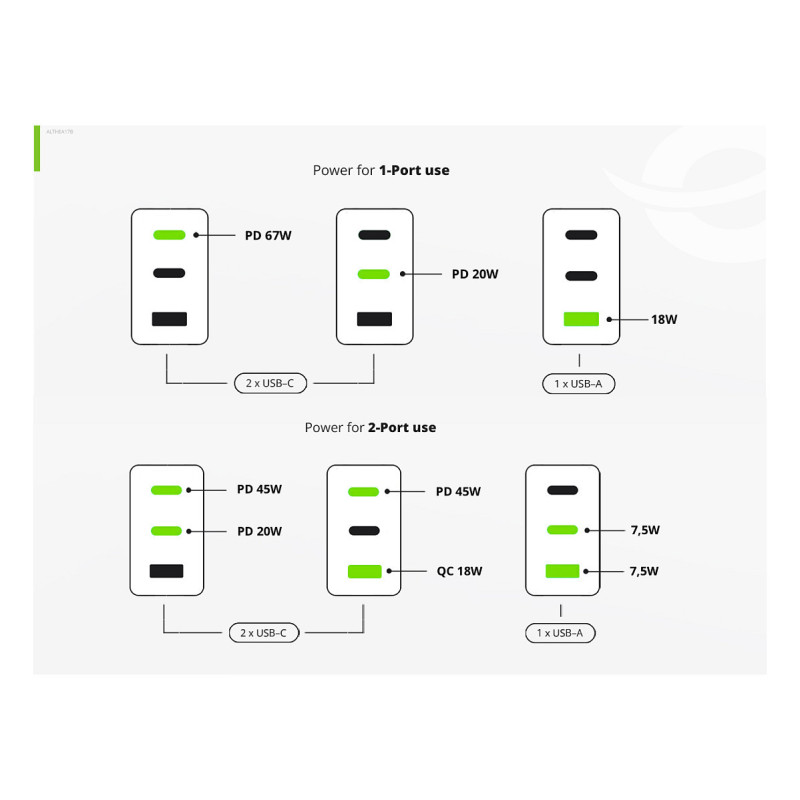

Output current (5V): 3 A
Output current (9V): 3 A
Output current (12V): 3 A
Output current (15V): 3 A
Output current (20V): 3.35 A

Weight & dimensions

Width: 54 mm
Depth: 54 mm
Height: 32 mm
Weight: 128 g

Packaging data

Package width: 125 mm
Package depth: 36 mm
Package height: 110 mm
Package weight: 110 g

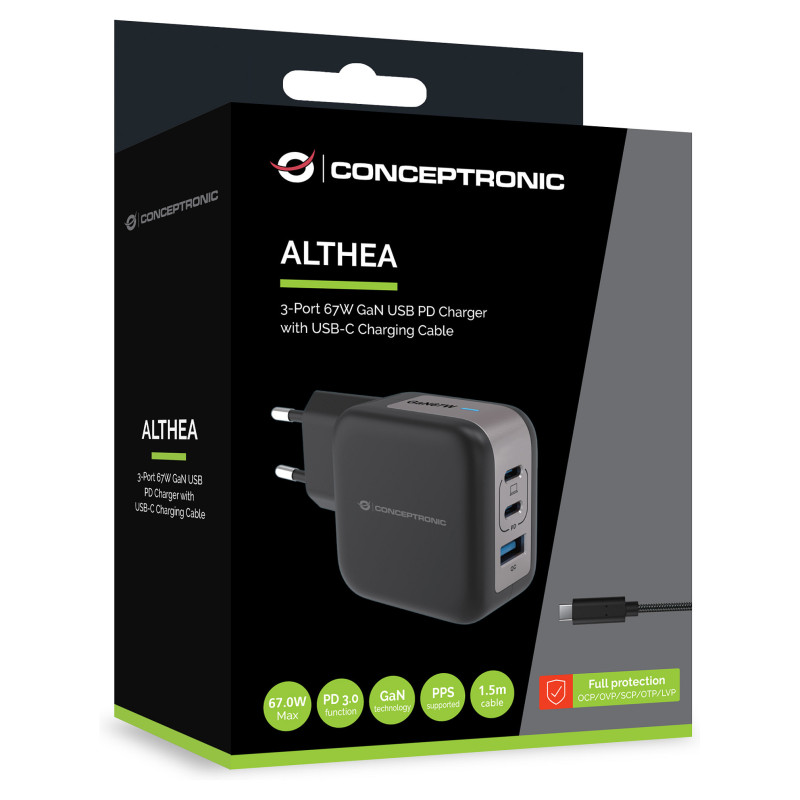

Package type: Box

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -20 - 80 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Packaging content

Cables included: USB Type-C
Feature: Manual

Certificates

Compliance certificates: CE, RoHS

Sustainability

Feature: Sustainability compliance
Sustainability certificates: ErP

Logistics data

Harmonized System (HS) code: 8504408390
Pallet gross width: 120 cm
Pallet gross length: 80 cm
Pallet gross height: 146 cm
Master (outer) case width: 385 mm
Master (outer) case length: 240 mm
Master (outer) case height: 265 mm
Master (outer) case gross weight: 8.7 kg
Products per master (outer) case: 40 pc(s)
Country of origin: China
