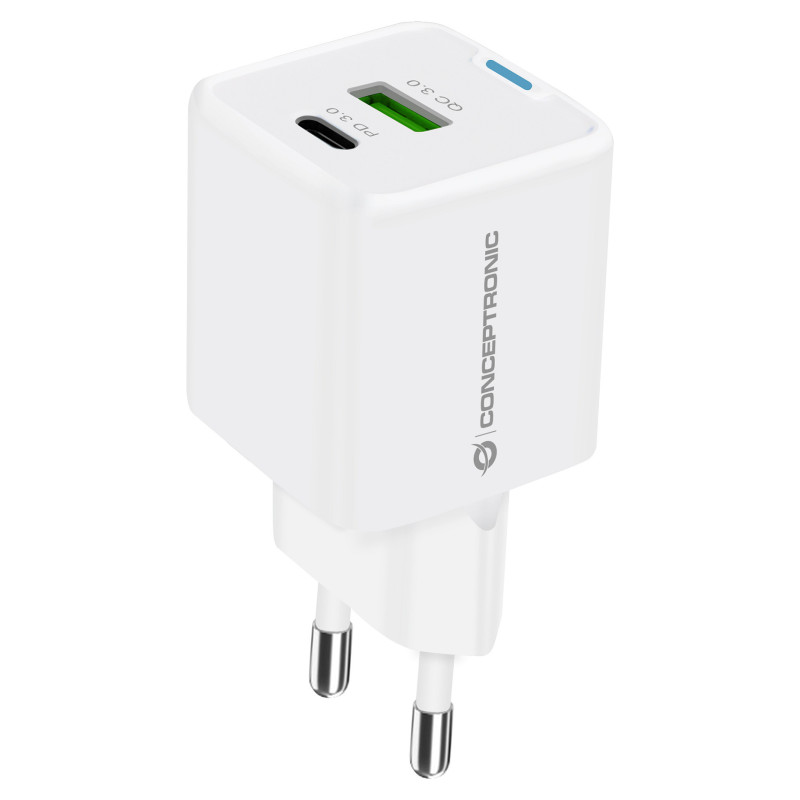

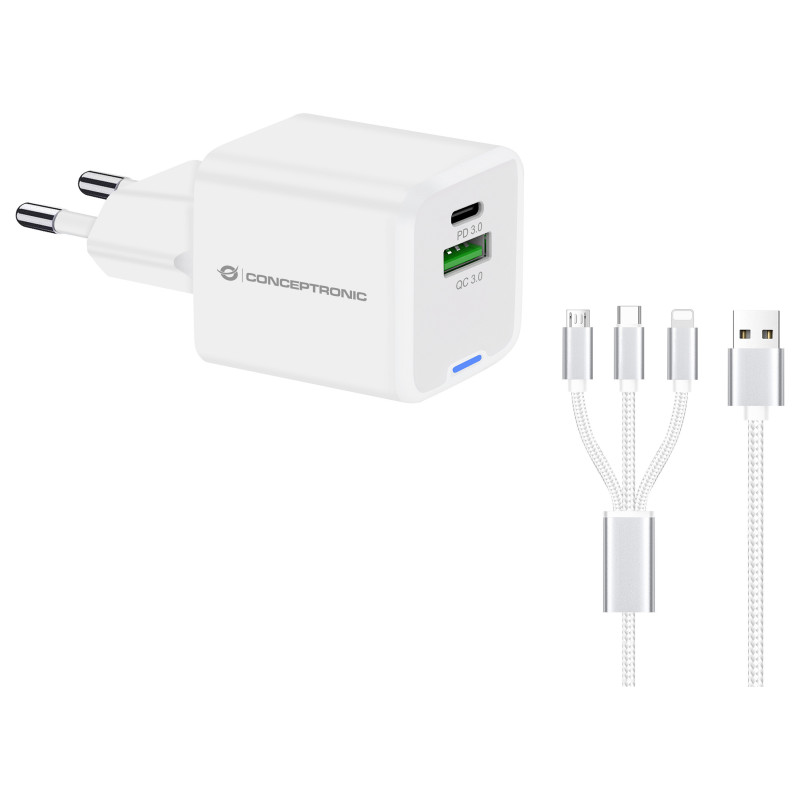

Conceptronic ALTHEA16W mobile device charger

Conceptronic 2-Port 33W GaN USB PD Charger with 3-in-1 Charging Cable, USB-C x 1, USB-A x 1, QC 3.0, PPS. Charger type: Indoor, Power source type: AC, Charger compatibility: Universal. Input voltage: 100 - 240 V, Maximum output voltage: 20 V. USB Type-C ports quantity: 1, Fast charging, Power protection features: Overheating, Overload, Short circuit. Cable length: 1.5 m, Product colour: White

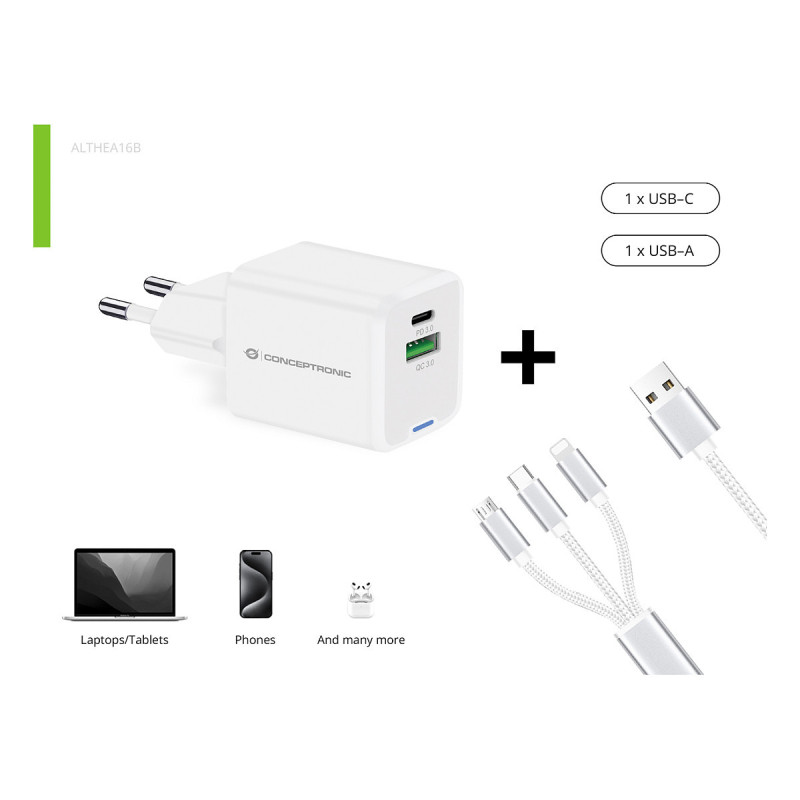

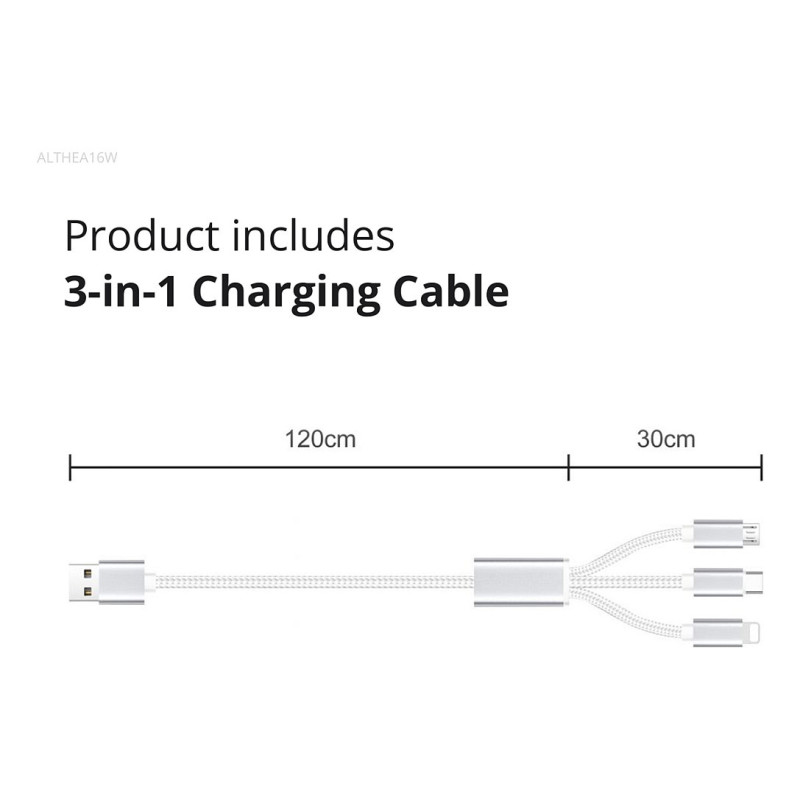

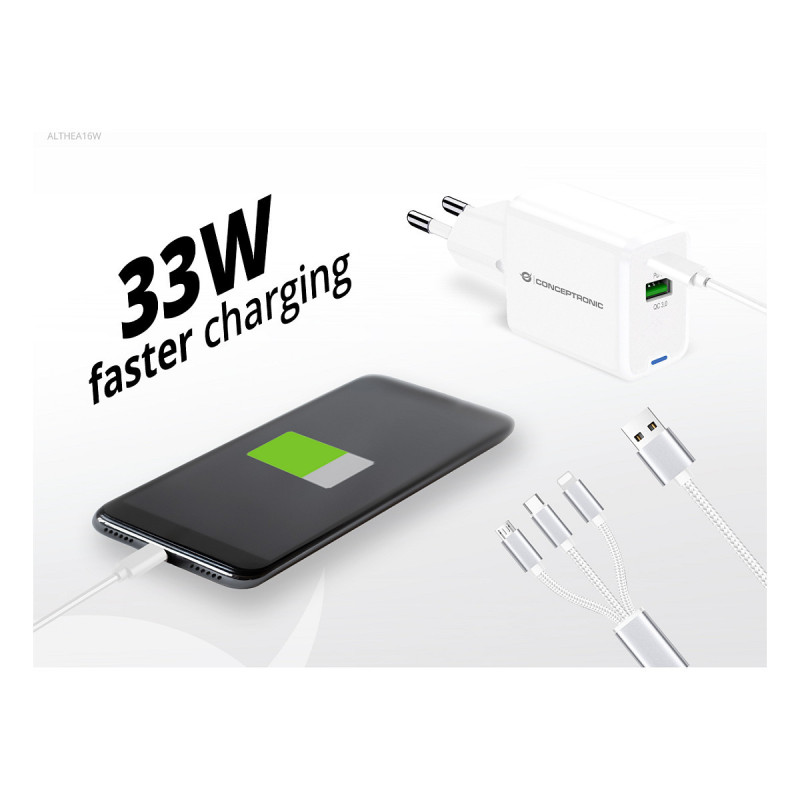

This charger leverages advanced Gallium Nitride (GaN) technology to provide up to 33W of total power, delivering faster and more efficient charging. It features a versatile port selection with 1 USB-C port supporting USB Power Delivery (PD) 3.0 and 1 USB-A port with Quick Charge (QC) 3.0, allowing for simultaneous charging of multiple devices with different power needs. The charger supports a wide range of output options from 3.3V to 20.0V, ensuring compatibility with a variety of devices, including smartphones and laptops. Enhanced safety is ensured with built-in protections against overload, short circuiting, and overheating. Additionally, it incorporates USB Power Delivery (PD) 3.0 and Quick Charge (QC) 3.0 technologies for rapid charging, along with Programmable Power Supply (PPS) compliance to maximize efficiency and minimize heat generation. For added convenience, the charger includes a 1.5m 3.0A 3-in-1 cable.

Performance

Charger compatibility: Universal
Power source type: AC
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB Type-C ports quantity: 1
Feature: Fast charging
Fast charging technology: Power Delivery 3.0, Quick Charge 3.0
Charger type: Indoor

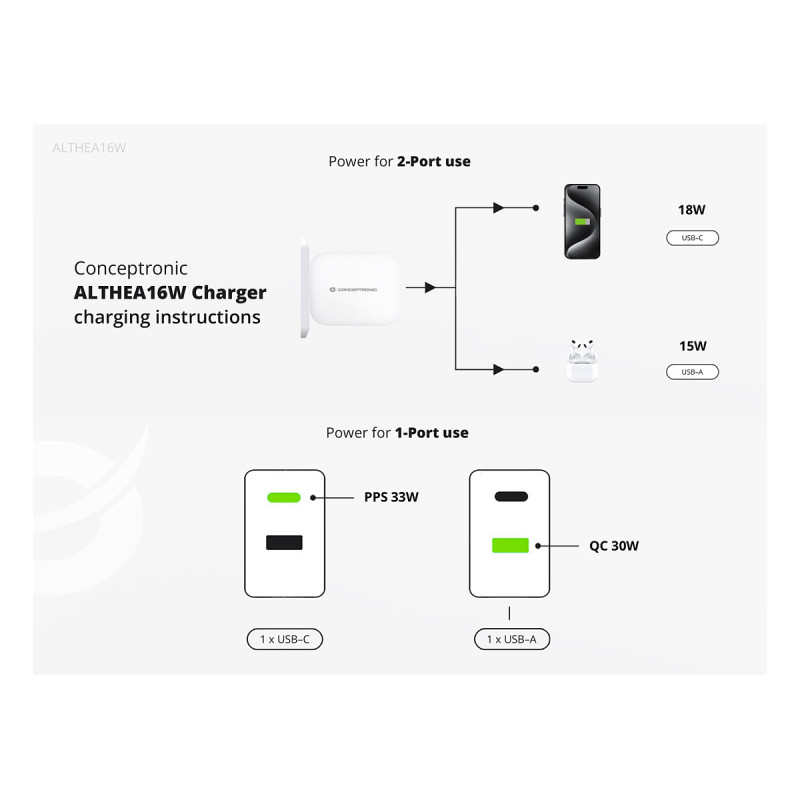

Number of simultaneously connected devices (max): 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
Power protection features: Overheating, Overload, Short circuit

Design

Product colour: White
Cable length: 1.5 m

Power

Input voltage: 100 - 240 V
Input frequency: 50 - 60 Hz
Input current: 0.8 A
Maximum power: 33 W
Maximum output voltage: 20 V
Minimum output voltage: 3.3 V
Output current (5V): 3 A
Output current (9V): 3 A
Output current (12V): 2.5 A
Output current (15V): 2 A
Output current (20V): 1.5 A

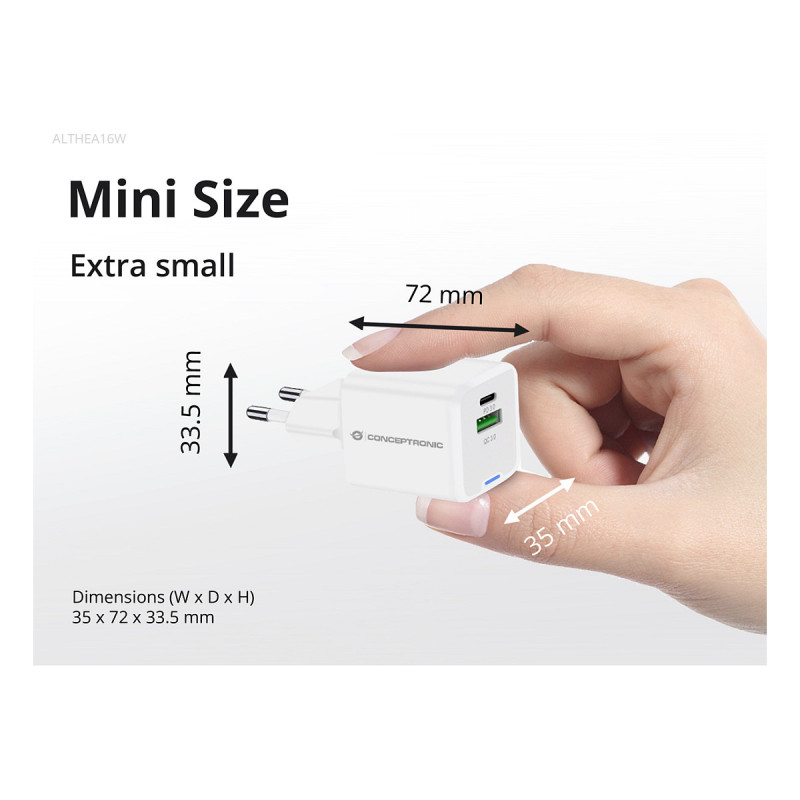

Weight & dimensions

Width: 35 mm
Depth: 72 mm
Height: 34 mm
Weight: 54 g

Packaging data

Package width: 95 mm
Package depth: 37 mm
Package height: 194 mm
Package weight: 194 g
Package type: Box

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 80 °C
Operating relative humidity (H-H): 5 - 95%

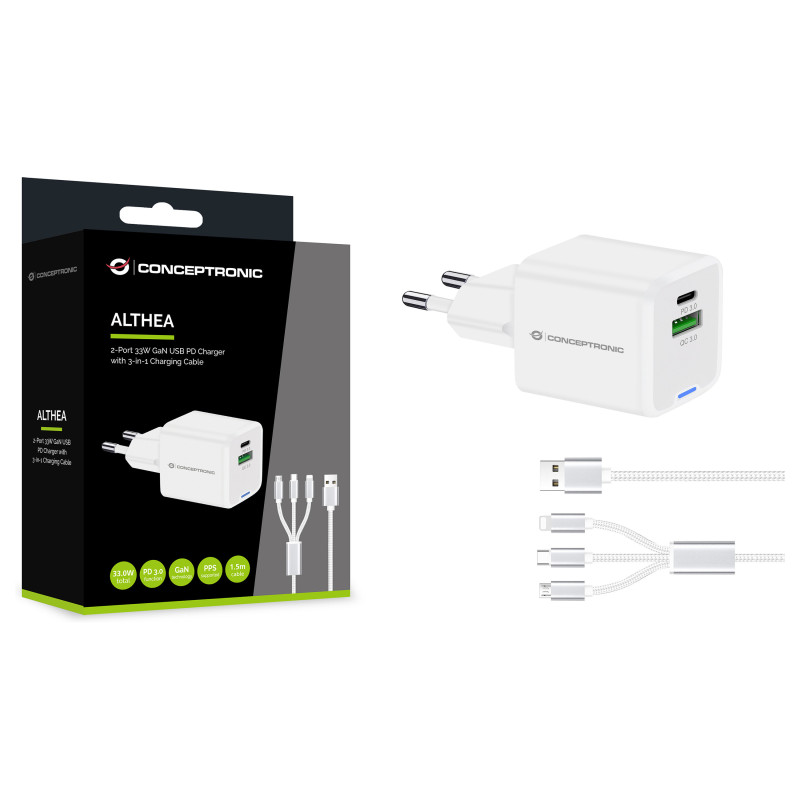

Packaging content

Cables included: USB
Feature: Manual

Certificates

Compliance certificates: CE, REACH, RoHS

Sustainability

Feature: Sustainability compliance
Sustainability certificates: ErP

Logistics data

Harmonized System (HS) code: 8504408390
Pallet gross width: 120 cm
Pallet gross length: 80 cm
Pallet gross height: 180 cm
Master (outer) case width: 450 mm
Master (outer) case length: 450 mm
Master (outer) case height: 300 mm
Master (outer) case gross weight: 10 kg
Products per master (outer) case: 50 pc(s)
Country of origin: China
