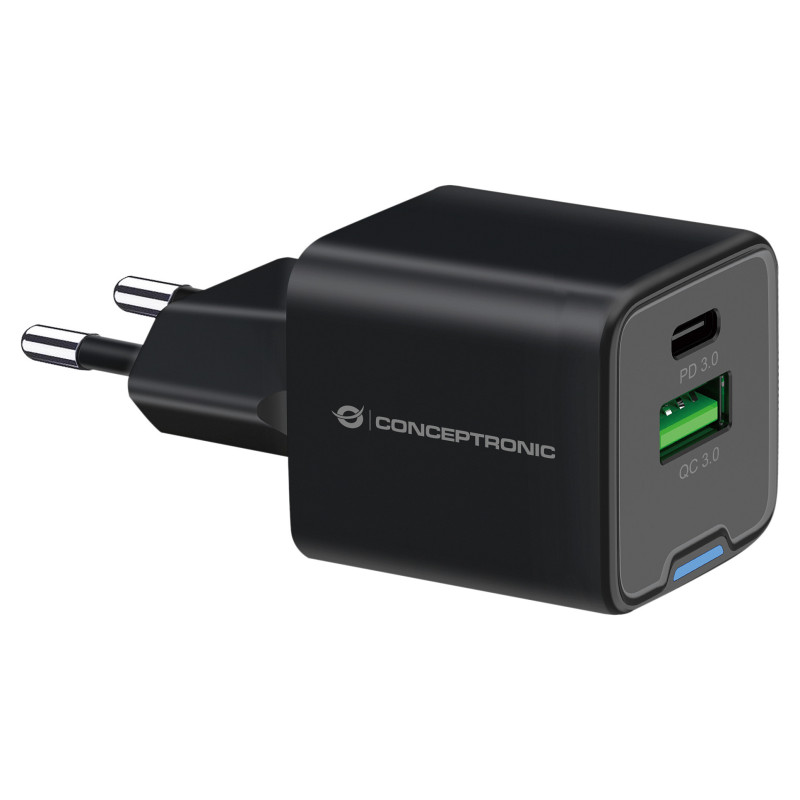

Conceptronic ALTHEA15B mobile device charger

Conceptronic 2-Port 20W GaN USB PD Charger, USB-C x 1, USB-A x 1, QC 3.0, PPS. Charger type: Indoor, Power source type: AC, Charger compatibility: Universal. Input voltage: 100 - 240 V, Maximum output voltage: 12 V. USB Type-C ports quantity: 1, Fast charging, Power protection features: Overheating, Overload, Short circuit. Product colour: Black

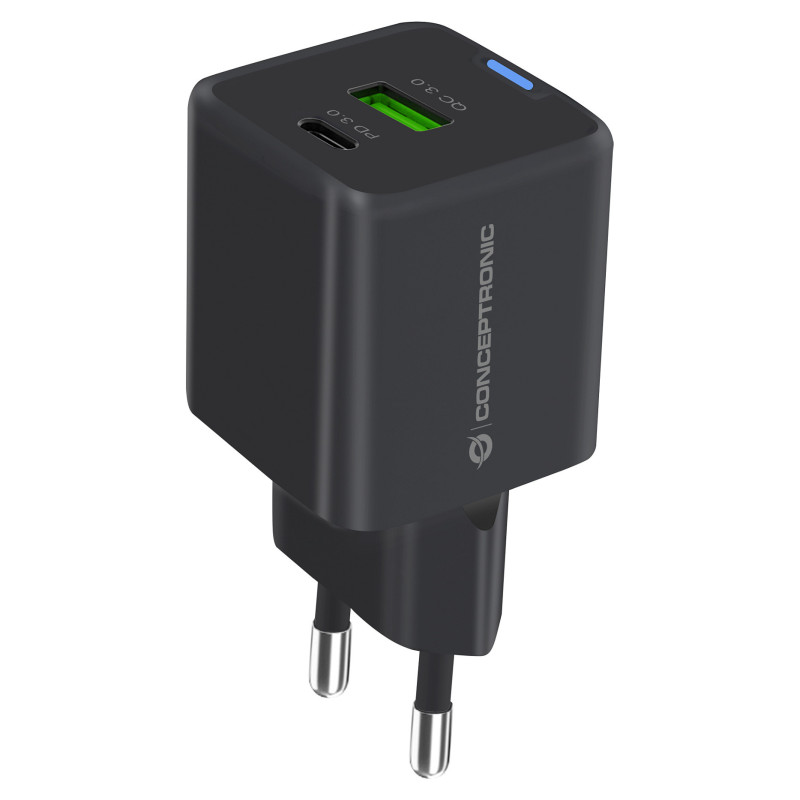

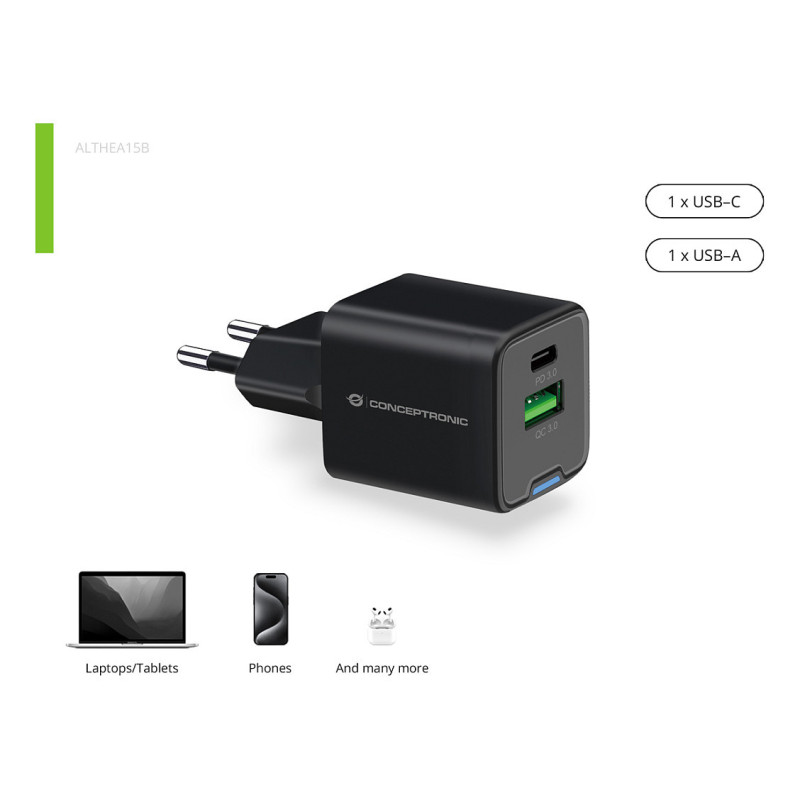

This charger harnesses the power of advanced Gallium Nitride (GaN) technology to deliver up to 20W of total power, offering faster and more efficient charging. It features a versatile port selection with 1 USB-C port supporting USB Power Delivery (PD) 3.0 and 1 USB-A port with Quick Charge (QC) 3.0, enabling the simultaneous charging of multiple devices with varying power needs. The charger supports a broad range of output options from 3.3V to 12.0V, ensuring compatibility with various devices, from smartphones to laptops. Enhanced safety is guaranteed with built-in protections against overload, short circuiting, and overheating. Additionally, it integrates USB Power Delivery (PD) 3.0 and Quick Charge (QC) 3.0 technologies for rapid charging, along with Programmable Power Supply (PPS) compliance to optimize charging efficiency and reduce heat generation.

Performance

Charger compatibility: Universal
Power source type: AC
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB Type-C ports quantity: 1
Feature: Fast charging
Fast charging technology: Power Delivery, Quick Charge 3.0
Charger type: Indoor

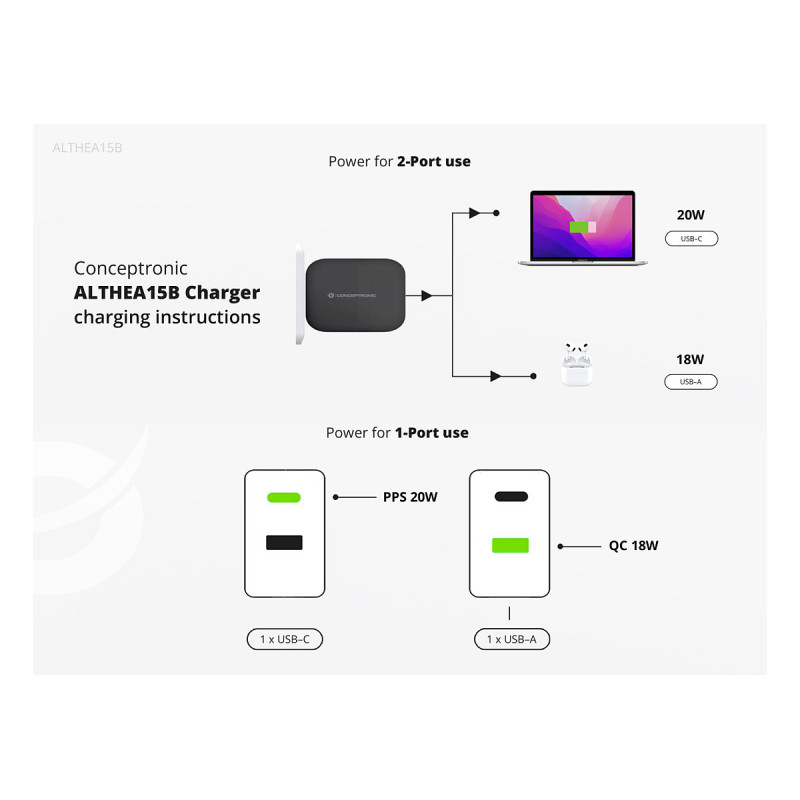

Number of simultaneously connected devices (max): 2
Power protection features: Overheating, Overload, Short circuit

Design

Product colour: Black
Feature: Gallium nitride (GaN) transistors

Power

Input voltage: 100 - 240 V
Input frequency: 50 - 60 Hz
Input current: 0.5 A
Maximum power: 20 W
Maximum output voltage: 12 V
Minimum output voltage: 3.3 V
Output current (5V): 3 A
Output current (9V): 2.22 A
Output current (12V): 1.67 A

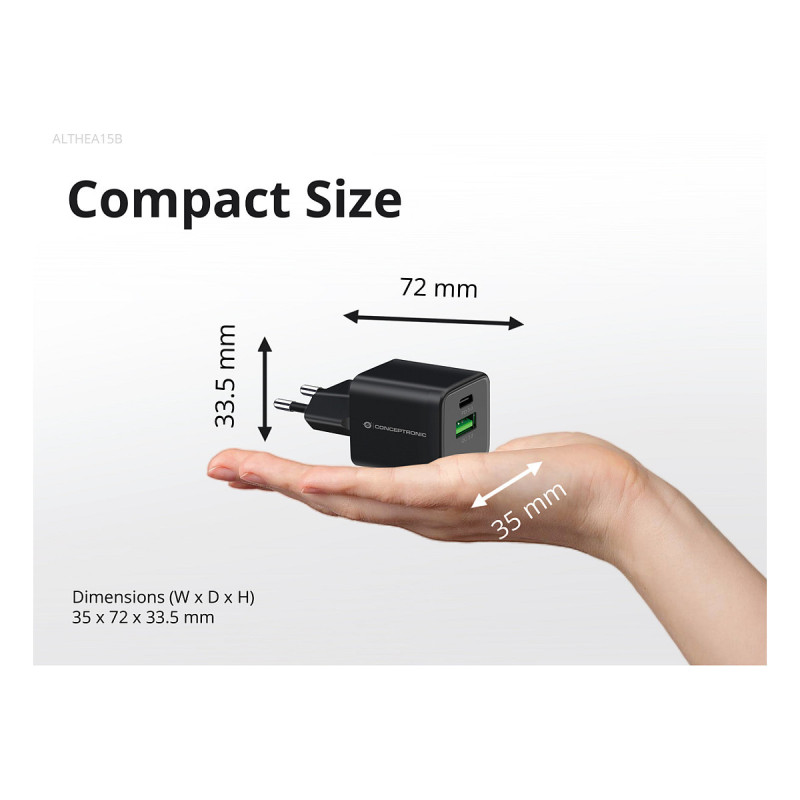

Weight & dimensions

Width: 35 mm
Depth: 72 mm
Height: 34 mm
Weight: 50 g

Packaging data

Package width: 54 mm
Package depth: 172 mm
Package height: 37 mm
Package weight: 37 g
Package type: Box

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 80 °C
Operating relative humidity (H-H): 5 - 95%

Packaging content

Feature: Manual

Certificates

Compliance certificates: CE, REACH, RoHS

Sustainability

Feature: Sustainability compliance
Sustainability certificates: ErP

Logistics data

Harmonized System (HS) code: 8504408390
Pallet gross width: 120 cm
Pallet gross length: 80 cm
Pallet gross height: 180 cm
Master (outer) case width: 450 mm
Master (outer) case length: 450 mm
Master (outer) case height: 380 mm
Master (outer) case gross weight: 6.8 kg
Products per master (outer) case: 100 pc(s)
Country of origin: China
