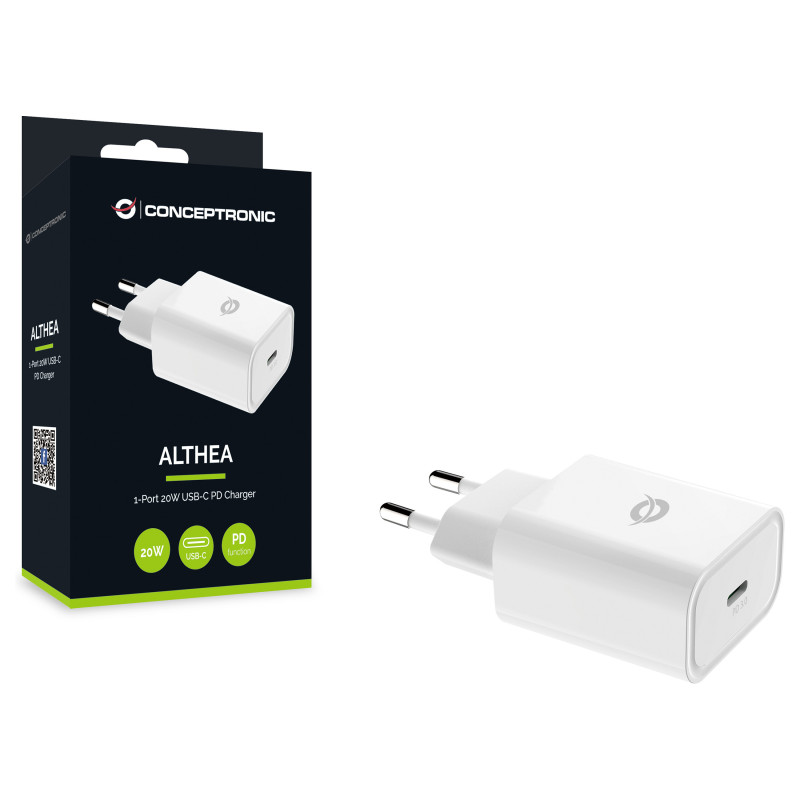

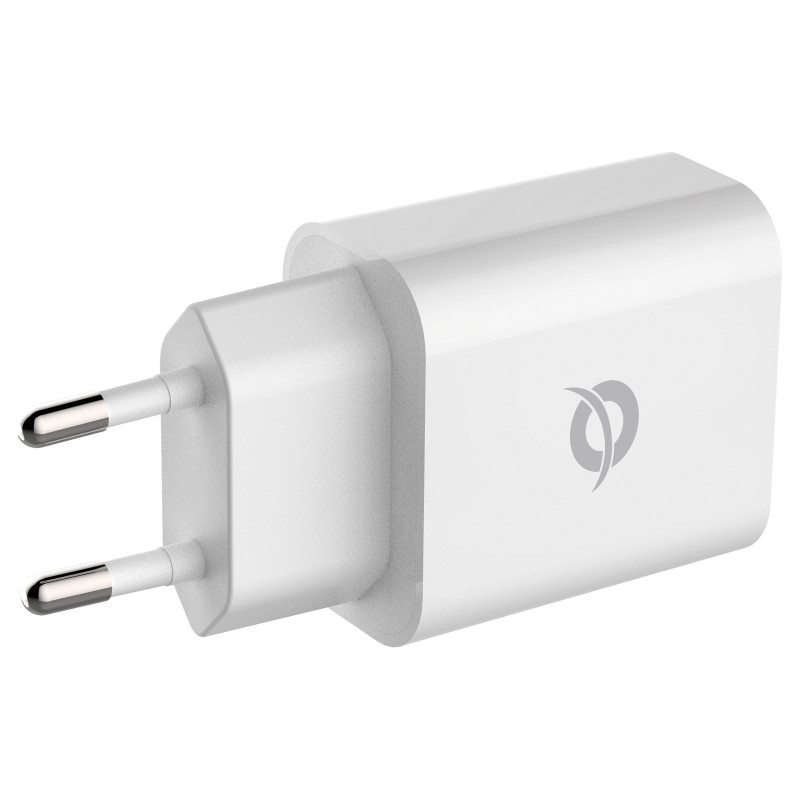

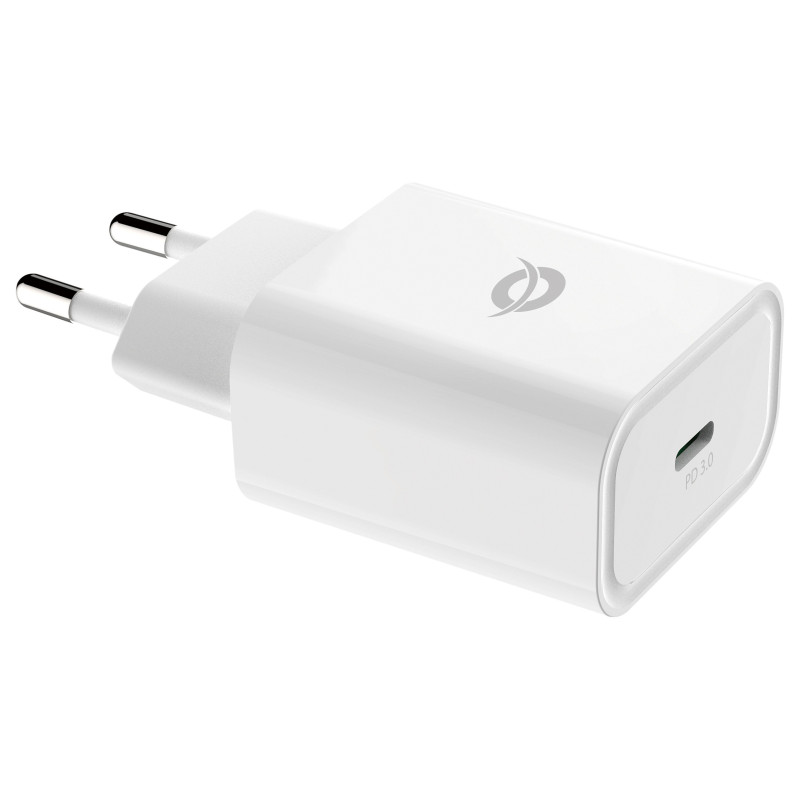

Conceptronic ALTHEA07W mobile device charger

Conceptronic ALTHEA07W 1-Port 20W USB-C PD Charger. Charger type: Indoor, Power source type: AC, Charger compatibility: Universal. Input voltage: 100 - 240 V, Maximum output voltage: 5 V. USB Type-C ports quantity: 1. Product colour: White

This charger is equipped with a dedicated USB-C port featuring Power Delivery (PD) 3.0, providing up to 20W of total power for high-speed charging across a wide range of devices. It supports a range of output options from 5.0V to 12.0V, ensuring compatibility with devices from smartphones to laptops. Enhanced safety features include built-in protections against overload, short-circuiting, and overheating, ensuring the safety of both the charger and connected devices. Incorporating USB Power Delivery (PD) 3.0 technology, this charger ensures efficient and rapid charging, offering broad device compatibility.

Performance

Charger compatibility: Universal
Power source type: AC
USB Type-C ports quantity: 1
Charger type: Indoor
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0

Design

Product colour: White

Power

Input voltage: 100 - 240 V
Input frequency: 50 - 60 Hz
Maximum power: 20 W
Maximum output voltage: 5 V
Minimum output voltage: 12 V
Output current (5V): 3 A
Output current (9V): 2.22 A
Output current (12V): 1.67 A

Weight & dimensions

Width: 40 mm
Depth: 44 mm
Height: 26 mm
Weight: 55 g

Packaging data

Package width: 30 mm
Package depth: 100 mm
Package height: 70 mm
Package weight: 70 g
Package type: Box

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 80 °C
Operating relative humidity (H-H): 10 - 80%
Storage relative humidity (H-H): 5 - 95%

Packaging content

Quantity per pack: 1 pc(s)
Feature: Manual

Logistics data

Harmonized System (HS) code: 8504408390
Pallet gross width: 120 cm
Pallet gross length: 80 cm
Pallet gross height: 170 cm
Master (outer) case width: 290 mm
Master (outer) case length: 360 mm
Master (outer) case height: 460 mm
Master (outer) case gross weight: 11.2 kg
Products per master (outer) case: 100 pc(s)
Country of origin: China
