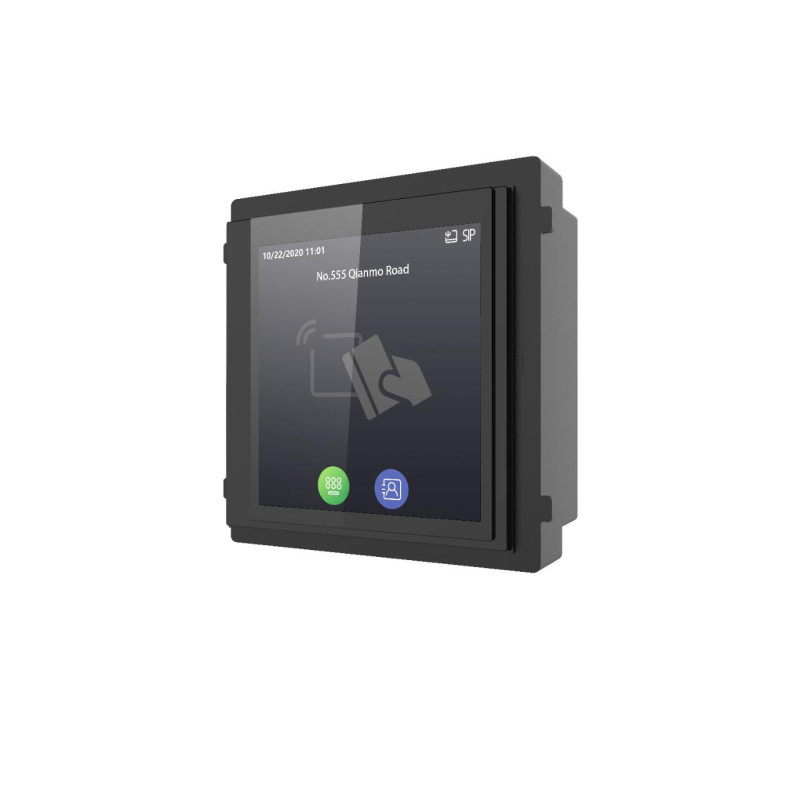

Universal module Hikvision DS-KD-TDM
Product reference:
26-6931847168988
- Modular door station touch and display module
- Mifare card reader,
- Mounting bracket required
- 4-inch touch screen
- IP65, IK08
- Stores and searches contact list
- Multiple languages
Universal module Hikvision DS-KD-TDM
Product reference:
26-6931847168988
- Modular door station touch and display module
- Mifare card reader,
- Mounting bracket required
- 4-inch touch screen
- IP65, IK08
- Stores and searches contact list
- Multiple languages
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 6
business days
- System parameters
- Operating system Linux
- ROM 32MB
- RAM 128MB
- Display settings
- Screen size 4-inch
- Type IPS touch screen
- Resolution 480x480
- Brightness 500 cd/m2
- Audio settings
- Audio compression format /
- Audio input /
- Audio output Buzzer
- Sound quality /
- Volume adjustment /
- Power output /
- Internet settings
- Wireless network Only AP mode
- Authentication
- Card reading frequency 13.56MHz
- Card reading distance 2cm
- Card type Mifare card
- Interfaces
- TF card Reserved
- DIP switch 8 bits
- Cascade interface 2
- Home
- Installation Surface, flush
- IP protection level IP65, IK8
- Operating temperature -20 °C to 60 °C (-4 °F to 140 °F)
- Working conditions humidity 10% to 95% (non-condensing)
- Size 100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38")
- Power supply 12 VDC, supplied by the main module
- Energy consumption ≤ 4W
- Language English, French, Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek
| Manufacturer code | PSKDSKDTDM |
| Manufacturer | Hikvision |
| Weight | 0.228 kg |
