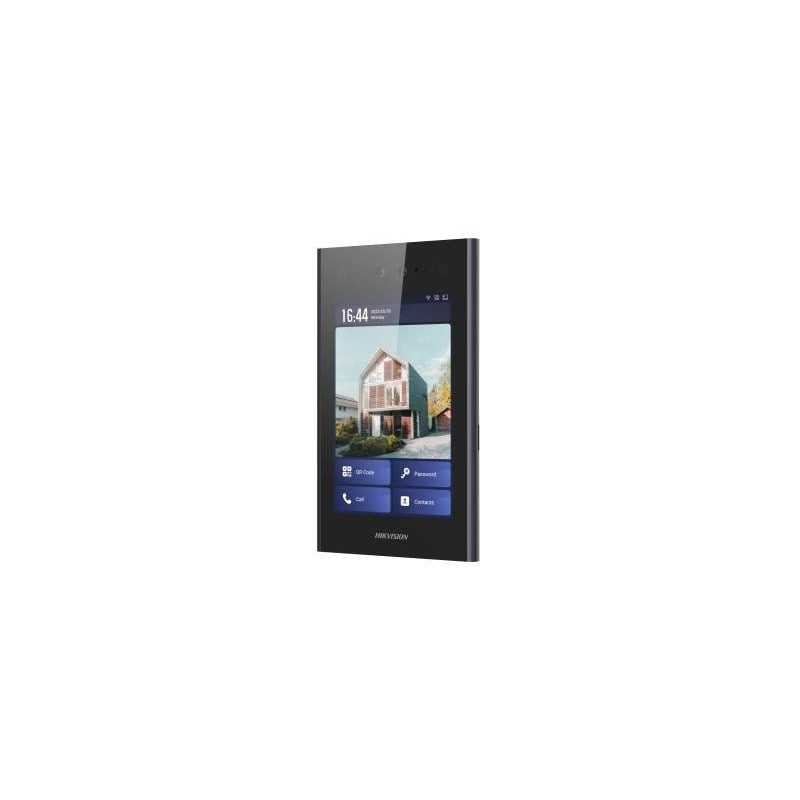

Telephone lock Hikvision DS-KD9403-E6 (800*480)
Product reference: 26-6931847130558
  • 8-inch color LCD screen, 1280 × 800 resolution
  • Card reading frequency: 13.56 MHz (Mifare)
  • Integrated Android operating system
  • Touch screen
  • Up to 10,000 faces, 20,000 users, 100,000 cards
  • Excellent image quality in the dark
  • 2MP camera
  • Authentication methods: card, PIN code, QR code, fingerprint and facial recognition
  • Can work without an indoor station (calling directly to HikConnect)
  • IP65
Telephone lock Hikvision DS-KD9403-E6 (800*480)

Telephone lock Hikvision DS-KD9403-E6 (800*480)

Product reference: 26-6931847130558
  • 8-inch color LCD screen, 1280 × 800 resolution
  • Card reading frequency: 13.56 MHz (Mifare)
  • Integrated Android operating system
  • Touch screen
  • Up to 10,000 faces, 20,000 users, 100,000 cards
  • Excellent image quality in the dark
  • 2MP camera
  • Authentication methods: card, PIN code, QR code, fingerprint and facial recognition
  • Can work without an indoor station (calling directly to HikConnect)
  • IP65
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
63916 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • System parameters
  • Operating system Android 7.1
  • ROM 4GB
  • RAM 2GB
  • Processor Embedded high performance processor
  • Display settings
  • Screen size 8-inch
  • Mode of operation Capacitive touch screen
  • Type Colorful IPS
  • Resolution 1280 × 800
  • Brightness 410 cd/m²
  • Image settings
  • Lens 2 MP HD camera
  • Resolution

    Main stream: 1920 × 1080p and 1280 × 720p

    Sub stream: 1280 × 720p and 640 × 480p
  • FOV Horizontal: 88°, Vertical: 44°
  • Wide dynamic range (WDR) Digital WDR/120 dB
  • Additional lighting IR light, up to 3 m
  • Image compression format H.264
  • Audio settings
  • Audio input 2 built-in omnidirectional microphones
  • Audio compression format G.711 U, G.711 A
  • Audio output 2 built-in speakers
  • Audio compression bit rate 64 Kbps
  • Sound quality Noise suppression and echo cancellation
  • Volume adjustment Adjustable
  • Capacity
  • User capacity 20000
  • Capacity of recognized faces 10000
  • Fingerprint capacity /
  • Card capacity 100000
  • Message capacity /
  • Associated indoor station capacities 500
  • Sub-door station capacity 16
  • Internet settings
  • Internet protocols TCP/IP, RTSP
  • Wi-Fi /
  • Bluetooth /
  • 3G/4G /
  • Authentication
  • Card reading frequency 13.56MHz
  • Interfaces
  • Alarm input 4 (2 exit buttons and 2 door contacts by default)
  • Web interface 2 RJ-45 10/100/1000 Mbps self-adaptive (1 reserved)
  • TAMPER 1
  • Exit button 2 (1 for lock control and 1 for secure door control unit)
  • RS-485 2 RS-485 (Half duplex, HIKVISION)
  • USB 2 for internal use only
  • Wiegand /
  • TF card 1 (reserved)
  • Alarm output 2 (reserved)
  • Shutter control 2 relays, Max. 30 VDC, 2 A, lock 2 needs secure module
  • Door contact input 1
  • Home
  • Button /
  • Installation Surface mounting and flush mounting
  • Indicator /
  • Weight

    Net weight: 0.965 kg

    Gross weight: 2.772 kg
  • IP protection level IP65
  • Operating temperature -30 °C to 60 °C (-22 °F to 140 °F)
  • Working conditions humidity 10% to 90% (non-condensing)
  • Size 244mm × 145mm × 26mm (9.6'' × 5.7'' × 1'')
  • Battery /
  • Power supply 12VDC, 2A
  • Application environment Outdoor
  • Energy consumption ≤ 18W
  • Language English,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Lithuanian,Estonia,Latvian,Norwegian,Danish,Slovakia,Hebrew,Swedish,Finnish,TraChinese,Mongolian,HongKongTraChinese

Weight2.07 kg
