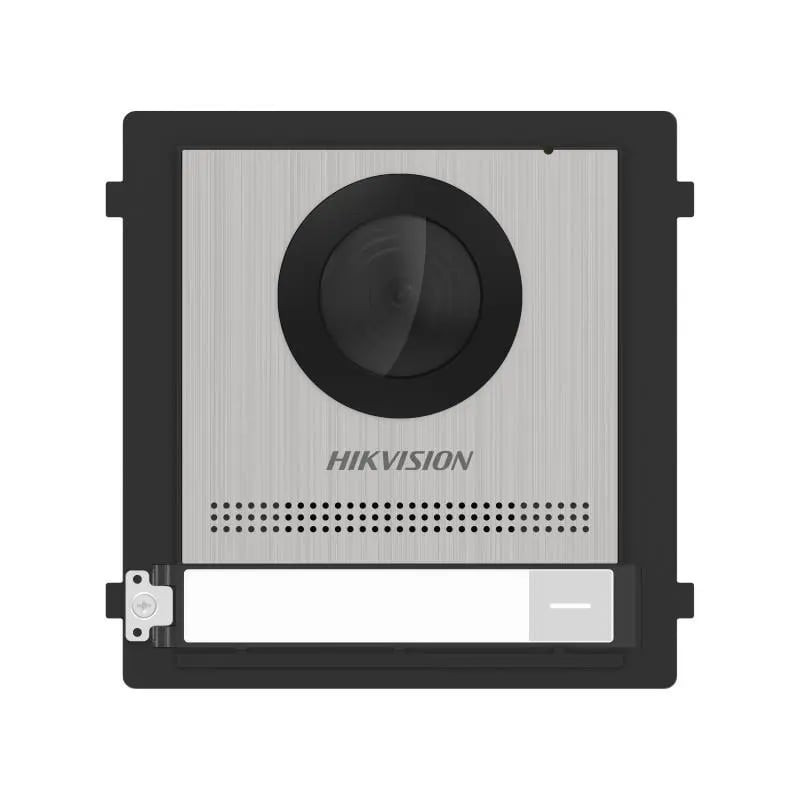

Hikvision DS-KD8003Y-IME2/S
Product reference:
26-6931847185367
- Modular passage system
- 2MP HD video camera
- Fisheye camera with IR illumination
- 2 relay outputs
- Button 1
- 4 alarm outputs
- IP65
Hikvision DS-KD8003Y-IME2/S
Product reference:
26-6931847185367
- Modular passage system
- 2MP HD video camera
- Fisheye camera with IR illumination
- 2 relay outputs
- Button 1
- 4 alarm outputs
- IP65
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 6
business days
- System parameters
- Operating system Embedded Linux operating system
- ROM 32MB
- RAM 256MB
- CPU Embedded Processor
- Display settings
- Screen size NA
- Mode of operation NA
- Type NA
- Resolution NA
- Image settings
- Additional lighting Low illumination, IR supplementary lights
- Video standard H.264
- Lens 1
- FOV Horizontal: 146°, Vertical: 82°
- WDR
Pillar
- Resolution 2 MP
- Audio settings
- Audio compression format G.711 U, G.711 A
- Audio input
Built-in omnidirectional microphone
- Audio output Built-in speaker
- Audio compression bit rate 64 Kbps
- Sound quality Noise suppression and echo cancellation
- Volume adjustment Adjustable
- Capacity
- Fingerprint capacity /
- User capacity 2000
- Capacity of recognized faces NA
- Associated indoor station capacities 500
- Event capacity /
- Sub-door station capacity 16
- Internet settings
- Communication protocol NA
- Wired internet NA
- Wi-Fi NA
- Bluetooth NA
- 3G/4G NA
- Interfaces
- Alarm input 4 (2 exit buttons and 2 door contacts by default)
- Network interface NA
- TAMPER 1
- Exit button 2 (2 for lock control)
- Door contact input 2
- RS-485 1 (1 for Hikvision's sub module communication)
- Wiegand NA
- TF card NA
- Alarm output NA
- Shutter control 2 (2 relays, max to 30 VDC, 2 A)
- USB NA
- Power interface 12VDC power output（12 V, 500 mA Max.）
- Two-wire IP interface 1
- Home
- Button 1
- Installation Surface mounting flush mounting
- Indicator 0
- 373.5 grams
- IP protection level IP65
- Operating temperature
-40° C to 60° C (-22° F to 140° F)
- Working conditions humidity
10% to 90%
- Size
100mm × 98mm × 42mm
- Battery /
- Power supply Powered by KAD704Y or KAD706Y series distributor
- Application environment Outdoor
- Energy consumption ≤ 4W
- Language English,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovak
| Weight | 0.411 kg |
