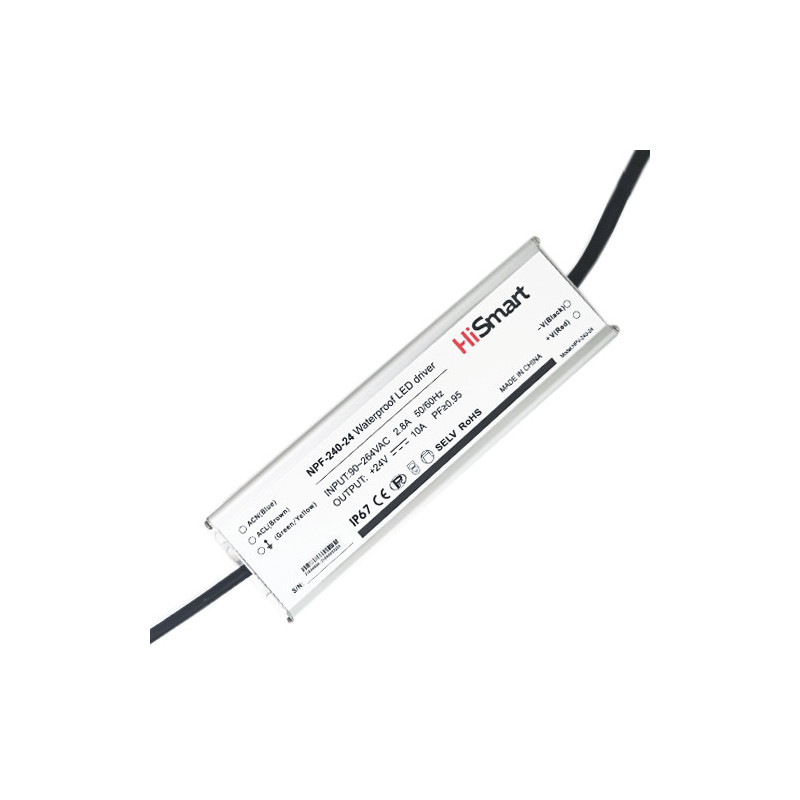

Power supply 24V, 10A, 240W, PFC, IP67
Product reference: 14-9990000700486
Switching power supply 24V, 10A, 240W, PFC, safety class IP67.

Power supply 24V, 10A, 240W, PFC, IP67

Product reference: 14-9990000700486
Switching power supply 24V, 10A, 240W, PFC, safety class IP67.
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
7179
Product in warehouse

Guarantee
24 month

Delivery from Europe in
4 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

Switching power supply 24V, 10A, 240W, PFC, safety class IP67.
Features:



  • Universal 24V power supply operating in pulse mode.

  • Built-in PFC (power factor correction).

  • Protection: against overload, overheating, voltage surge, short circuit.

  • Cooling by free air convection.

  • Safety class IP67 (water resistance), suitable for both indoor and outdoor installation.



Technical data:



  • Input voltage: AC 90-264V. Frequency: 47-63Hz.

  • Output voltage: DC 24V.

  • Maximum output current: 10A.

  • Maximum power: 240W.

  • Irregularities and noise: 150mV pp.

  • AC voltage: 4A/115V, 2A/230V.

  • Efficiency: 93%.

  • Leakage current in the input circuit at AC 240V: up to 0.75mA.

  • Operating temperature: from -30°C to +60°C.

  • Operating humidity: 20%~90%RH.

  • Dimensions: 249x69x39mm.

  • Weight: 1.3kg.
