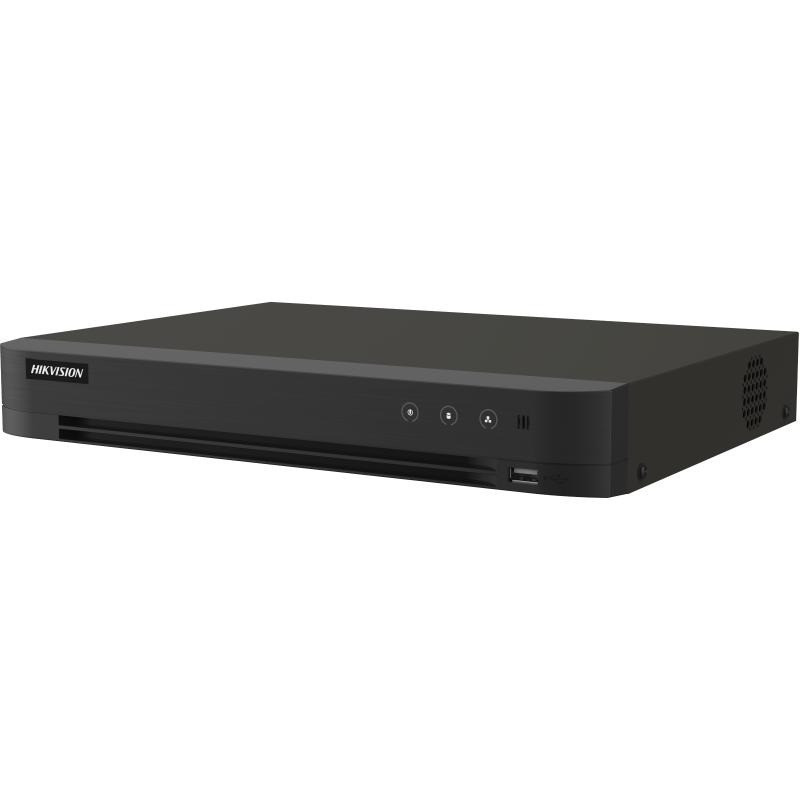

8-channel DVR Hikvision iDS-7208HUHI-M1 / XT
Product reference: 26-DVR7208HUHIM1XT
  • 8-channel and 1 HDD 1U AcuSense DVR
  • Supports 4-channel face recognition or 8-channel advanced perimeter protection based on deep learning algorithm
  • Supports 8-channel AcuSearch technology
  • Encoding capabilities up to 4K/8 MP @ 8 fps; 3K/5 MP @ 12 fps
  • Up to 16 IP camera channels, each channel up to 8 MP
  • Decoding capabilities up to 24×1080P @ 30fps
  • 5 types of signal inputs with automatic adaptation (HDTVI / AHD / CVI / CVBS / IP)
  • Supports motion detection technology on all channels
  • Supports HDTVI two-way audio technology on all channels
8-channel DVR Hikvision iDS-7208HUHI-M1 / XT

8-channel DVR Hikvision iDS-7208HUHI-M1 / XT

Product reference: 26-DVR7208HUHIM1XT
  • 8-channel and 1 HDD 1U AcuSense DVR
  • Supports 4-channel face recognition or 8-channel advanced perimeter protection based on deep learning algorithm
  • Supports 8-channel AcuSearch technology
  • Encoding capabilities up to 4K/8 MP @ 8 fps; 3K/5 MP @ 12 fps
  • Up to 16 IP camera channels, each channel up to 8 MP
  • Decoding capabilities up to 24×1080P @ 30fps
  • 5 types of signal inputs with automatic adaptation (HDTVI / AHD / CVI / CVBS / IP)
  • Supports motion detection technology on all channels
  • Supports HDTVI two-way audio technology on all channels
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
24630 €
Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Interfaces
  • Warning signal input/output N/A (optional to support)
  • Capacity up to 12 TB capacity for each disk
  • SATA 1 SATA interface
  • Serial interface RS-485 (half duplex)
  • USB interface Front panel: 1 × USB 2.0; Rear panel: 2 × USB 3.0
  • Decoding
  • Decoding capacity up to 24-ch 1080P@30fps
  • Facial Detection
  • Facial Detection and Capture Face picture detection, face picture search；4-ch face picture capture
  • Facial recognition
  • Face photo comparison 4-ch face picture comparison alarm (HD analog camera)
  • Face Painting Library Up to 16 face picture libraries; HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.
  • General information
  • Energy consumption ≤ 24W
  • Size 319 × 240 × 48 mm (12.6 × 9.4 × 1.9 inches)
  • Power source 12VDC, 2A
  • Weight ≤ 2 kg (4.4 lb)
  • Operating humidity 10% to 90%
  • Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
  • Network
  • Network interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
  • Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
  • Remote login 64
  • Total Bandwidth 256Mbps
  • Perimeter security
  • Human/Vehicle Analysis Up to 8-ch (advanced model)
  • Recording
  • Audio bit rate 64 Kbps
  • Audio compression G.711u
  • Double stream Support main stream or sub stream
  • Encoding resolution 8MP/5MP/3K/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
  • Frame rate Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
  • Flow type Video, Video Audio
  • Video bit rate 32 Kbps to 10 Mbps
  • Image compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Image and sound
  • AHD Input 5MP(2560×1944)@20fps, 4MP(2560×1440)@25/30fps, 1080P@25/30fps, 720P@25/30fps
  • Analog video input 8-chBNC interface (1.0 Vp-p, 75 Ω), supporting coaxial connection
  • Audio input 1-ch (up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 8-ch via coaxial cable
  • Audio output 1-ch, RCA (Linear, 1 KΩ)
  • CVBS Input PAL/NTSC
  • CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • HDCVI Input 8 MP(3840×2160)@12/15 fps, 3K(2880×1620)@20/25 fps, 5 MP(2592×1944)@20 fps, 4 MP(2560×1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30 fps
  • HDMI output 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output
  • HDTVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2960 × 1665)@25/20 fps,3K(3328x1504)@20fps,2K(2304x1296)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30fps,1080P@25/30fps,720P@25/30fps
  • IP video input 8-ch (up to 16-ch), each up to 8MP
  • Synchronous playback 8-channel
  • Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • VGA output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output

Weight1.24 kg
