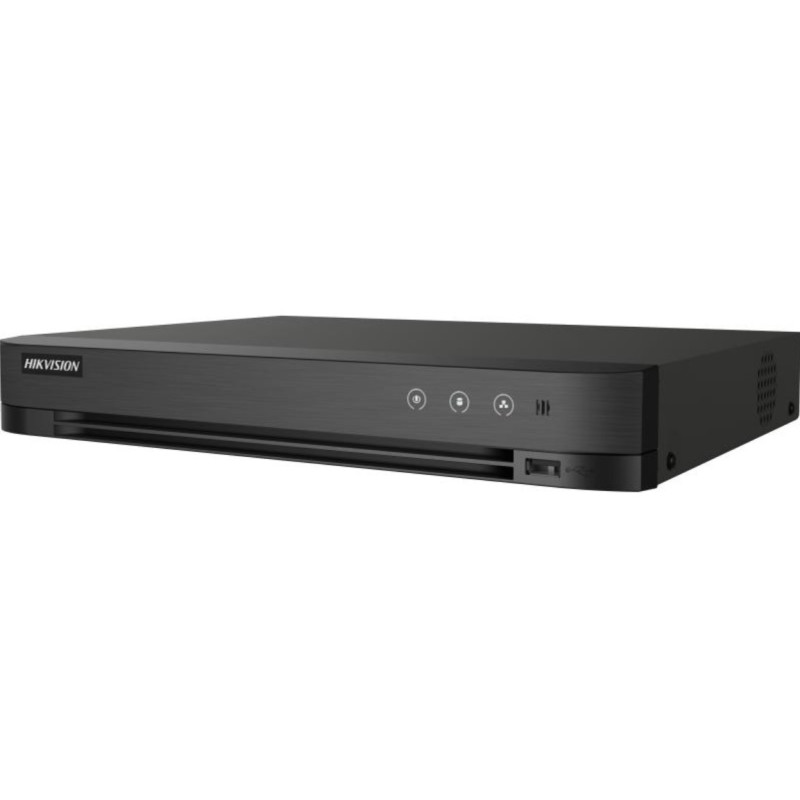

8-channel DVR Hikvision iDS-7208HQHI-M1/XT
Product reference:
26-6942160473802
- 8 channels and 1 HDD 1U AcuSense DVR
- Supports 2-channel facial recognition or 4-channel advanced pattern perimeter protection based on deep learning algorithm
- Support HDTVI two-way audio technology
- Efficient H.265 pro+ compression technology
- Encoding capability up to 3K/5M Lite @ 12 frames per second
- 5 adaptive input signals (HDTVI/AHD/CVI/CVBS/IP)
- Up to 12 network cameras can be connected
- Support all channels motion detection technology
8-channel DVR Hikvision iDS-7208HQHI-M1/XT
Product reference:
26-6942160473802
- 8 channels and 1 HDD 1U AcuSense DVR
- Supports 2-channel facial recognition or 4-channel advanced pattern perimeter protection based on deep learning algorithm
- Support HDTVI two-way audio technology
- Efficient H.265 pro+ compression technology
- Encoding capability up to 3K/5M Lite @ 12 frames per second
- 5 adaptive input signals (HDTVI/AHD/CVI/CVBS/IP)
- Up to 12 network cameras can be connected
- Support all channels motion detection technology
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 6
business days
- Facial recognition
- Face Painting Library Up to 16 face picture libraries
- Face Picture Comparison (Captured from Camera) Face picture comparison, face picture search (2-ch face picture comparison alarm for HD analog camera)
- Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Perimeter security
- Human/Vehicle Analysis
Up to 4-ch
Note: Face picture comparison, motion detection 2.0 and perimeter protection cannot be enabled at the same time. Enable one function will make the other two unavailable.
- Image and sound
- IP video input
2-channel (up to 10-channel)
Enhanced IP mode on:
4-ch (up to 12-ch), each up to 4 Mbps
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Note: Enhanced IP mode might conflict with smart events (face picture comparison, motion detection 2.0 and perimeter protection) or other functions, please refer to the user manual for details.
- Analog video input
8-channel
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxial connection
- HDTVI Input 3K(2960 x 1665)@20 fps, 5 MP(2560 x 1944)@20 fps, 4 MP(2560 x 1440)@30 fps, 4 MP(2560 x 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
- AHD Input 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- HDCVI Input 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- CVBS Input PAL/NTSC
- HDMI output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
HDMI/VGA simultaneous output
- VGA output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
HDMI/VGA simultaneous output
- CVBS output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio input
1-ch (up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ)
8-ch via coaxial cable
Note: The number of audio inputs and alarm in/out can be optional. The tag on the package will describe audio input and alarm in/out parameters. For example, "4A+8/4ALM" means your device has 4 audio inputs, 8 alarm inputs and 4 alarm outputs. If your device only has 1 audio input, the tag may not describe it.
- Audio output 1-ch, RCA (Linear, 1 KΩ)
- Two-way speed 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous playback 8-channel
- Recording
- Image compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding resolution
When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
- Frame rate
Main stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode is enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
- Video Bitrate 32 Kbps to 6 Mbps
- Double stream Support main stream or sub stream
- Flow type Video, Video Audio
- Audio compression G.711u
- Audio bit rate 64 Kbps
- Internet
- Remote login 64
- Total Bandwidth 96 Mbps
- Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Network interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
- Interfaces
- Serial interface RS-485 (half duplex)
- SATA 1 SATA interface, up to 10 TB capacity for each disk
- Warning signal input/output N/A (optional to support)
- USB interface
Front panel: 1 × USB 2.0;
Rear panel: 1 × USB 2.0
- Home
- Power supply 12 VDC, 1.5 A
- Energy consumption ≤ 18 W (without HDD)
- Operating temperature -10 °C to + 55 °C (14 °F to 131 °F)
- Moisture resistance 10% to 90%
- Size 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
- Weight ≤ 1.78 kg (3.9 lb) (without HDD)
| Weight | 1.365 kg |
