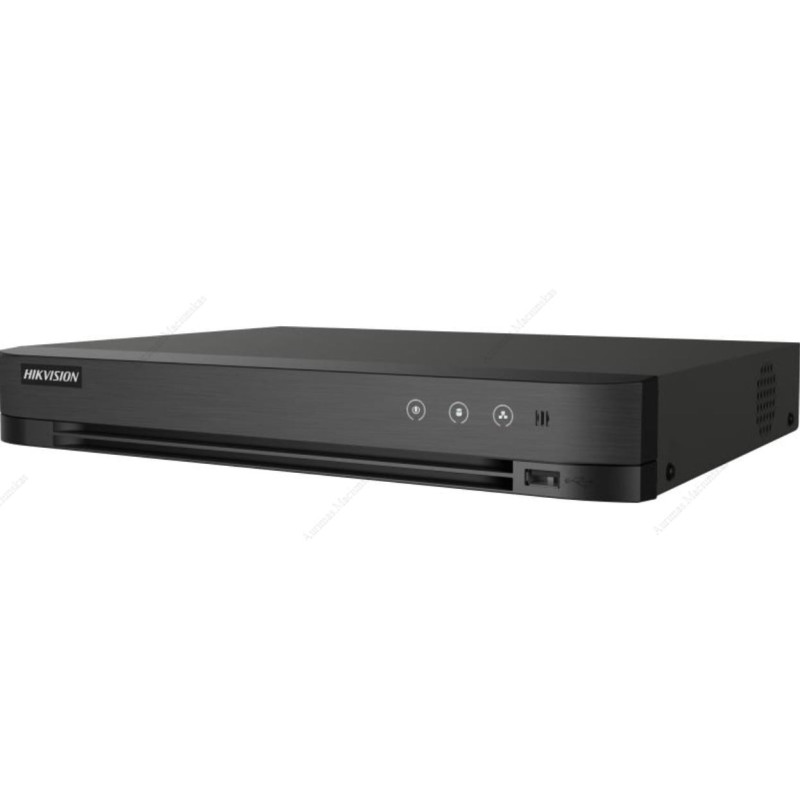

4-channel DVR Hikvision iDS-7204HUHI-M1/X
Product reference:
26-6942160473857
- 4 channels and 1 HDD 1U AcuSense DVR
- Support 2-channel facial recognition or 4-channel advanced pattern perimeter protection based on deep learning algorithm
- Efficient H.265 pro+ compression technology
- Encoding capability up to 4K @ 8 frames per second (1 channel); 3K/5MP @ 12 frames per second
- Can connect up to 8 network cameras
- 5 adaptive input signals (HDTVI/AHD/CVI/CVBS/IP)
- Support all channels motion detection technology
4-channel DVR Hikvision iDS-7204HUHI-M1/X
Product reference:
26-6942160473857
- 4 channels and 1 HDD 1U AcuSense DVR
- Support 2-channel facial recognition or 4-channel advanced pattern perimeter protection based on deep learning algorithm
- Efficient H.265 pro+ compression technology
- Encoding capability up to 4K @ 8 frames per second (1 channel); 3K/5MP @ 12 frames per second
- Can connect up to 8 network cameras
- 5 adaptive input signals (HDTVI/AHD/CVI/CVBS/IP)
- Support all channels motion detection technology
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 6
business days
- Facial recognition
- Face painting library Up to 16 face picture libraries
- Face photo comparison
Face picture comparison, face picture search;
2-ch face picture comparison alarm (HD analog camera)
- Perimeter security
- Human/Vehicle Analysis Up to 4-ch
- Image and sound
- IP video input
2-channel (up to 6-channel)
Up to 8 MP resolution
IP enhanced mode on:
4-ch (up to 8-ch), each up to 4 Mbps
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog video input
4-channel
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxial connection
- HDMI output
1-ch, 2K (2560 × 1440)/60Hz,
1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz
HDMI/VGA simultaneous output
- VGA output
1-ch, 1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz
HDMI/VGA simultaneous output
- CVBS Input PAL/NTSC
- CVBS output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- Synchronous playback 4-channel
- HDTVI Input 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 × 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1944)@12 fps 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- AHD Input 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- HDCVI Input 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- Audio output 1-ch, RCA (Linear, 1 KΩ)
- Audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ)，4-ch via coaxial cable
- Two-way speed 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Recording
- Image compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding resolution
Main stream:
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (R)/30 fps (N)
*: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.
Sub-stream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Video Bitrate 32 Kbps to 10 Mbps
- Double stream Support main stream or sub stream
- Flow type Video, Video Audio
- Audio compression G.711u
- Audio bit rate 64 Kbps
- Internet
- Total Bandwidth 96 Mbps
- Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Remote login 32
- Network interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Interfaces
- SATA 1 SATA interface
- Capacity up to 10 TB capacity for each disk
- Serial interface RS-485 (half duplex)
- USB interface
Front panel: 1 × USB 2.0;
Rear panel: 1 × USB 2.0
- Warning signal input/output N/A
- Home
- Power supply 12 VDC, 1.5 A
- Energy consumption ≤ 10W
- Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
- Moisture resistance 10% to 90%
- Size 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
- Weight ≤ 1.16 kg (2.6 lb)
| Weight | 1.358 kg |
